IDMB-335123 Credit Card Reader

Part Number: IDMB-335123
Model: MiniMag
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Magnetic Stripe Track Configuration
Dual Track
Magnetic Stripe Track Number
Track 2Track 3
Minimum Swipe Speed
3 in/s
Maximum Swipe Speed
60 in/s

Product Description:

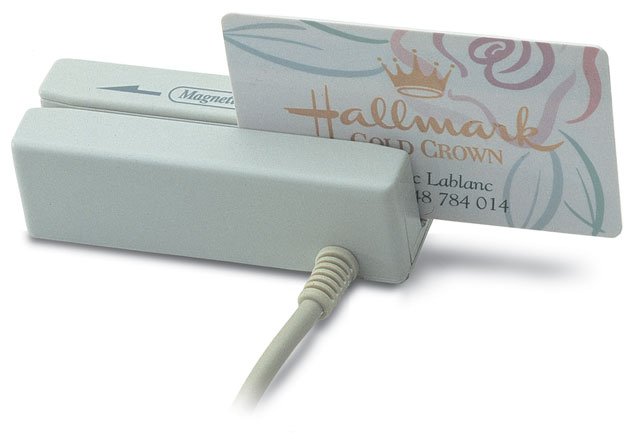

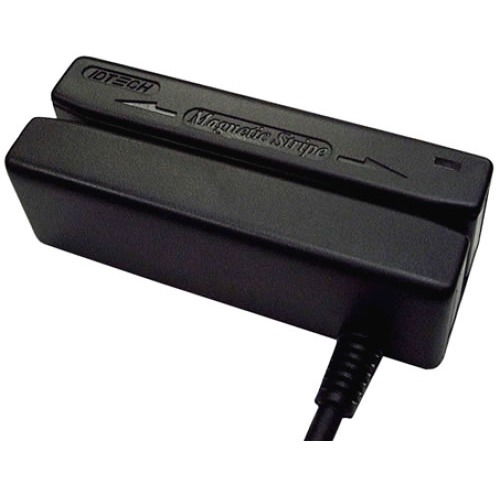

  ID TECH MiniMag II IDMB Magnetic Stripe Reader - Dual Track - 60 in/s - USB - Beige
Explore all ID Tech MiniMag Credit Card Readers
Add to Quote
IDMB-335123 Credit Card Reader
IDMB-335123 Credit Card Reader
IDMB-335123 Credit Card Reader IDMB-335123 Credit Card Reader
Full specifications (PDF)

ID Tech MiniMag Credit Card Reader Model Overview

The MiniMag™ Compact Intelligent Magstripe Swipe Reader is designed for optimal performance in a space-saving format. Capable of reading up to 3 tracks of magnetic stripe card data in either direction, it enhances usability across various applications, including POS systems and loyalty programs. With innovative mounting options, the MiniMag easily adapts to your setup, ensuring a seamless integration. Its user-friendly software allows for customization, making it an ideal choice for businesses seeking efficiency combined with reliability.

Key features:
  • Multiple Interfaces: Supports KB, RS232, USB-KB, USB-CDC, USB-HID, and RS232 Port-Powered connectivity.
  • Programmable Functions: Customize output format with a Windows-based MagSwipe Configuration Utility.
  • Exceptional Reliability: Reads up to 1,000,000 passes with a visual and audible indicator for successful reads.
  • Flexible Mounting: Can be mounted in various orientations using threaded inserts or Velcro.
  • Compact Design: With a size of 3.54 x 1.34 inches, perfect for limited spaces.


Specifications:
  • Electrical:
    • Power: 5 VDC +/-10%
    • Current: 1mA per track (max)
    • External Power Supply: 5 VDC/350mA (RS-232 only)
  • Environmental:
    • Operating Temperature: 32°F to 131°F (0°C to 55°C)
    • Storage Temperature: -22°F to 158°F (-30°C to 70°C)
    • Humidity: Maximum 95% non-condensing
  • Mechanical:
    • Dimensions: 3.54" x 1.34" x 1.10"
    • Weight: Approximately 4.6 oz.
    • Cable Length: 6-foot side exit (bottom exit available)
  • Indicators:
    • Tri-colored LED and beeper for read indication
IDMB-335123 Credit Card Reader Overview

The MiniMag II IDMB Magnetic Stripe Reader is an intelligent, programmable mag stripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card.

Full specifications (PDF)
Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Bi-directional Reading:
Yes
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Beige
Height:
1.1"
Width:
1.3"
Length:
3.5"
Weight (Approximate):
4.60 oz
Miscellaneous
Additional Information:
  • Small footprint to fit in tight places
  • Bi-directional swipe reading
  • Superior reading of high jitter, scratched, and worn magstripe cards
  • Threaded inserts for mounting
  • Mag swipe PC software makes configuration changes easy
  • JPOS & OPOS support for all interfaces is provided
  • Tri-colored LED beeper
  • Supports USB-HID
Item Numbers
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The IDMB-335123 Credit Card Reader is also known as IDMB335123
