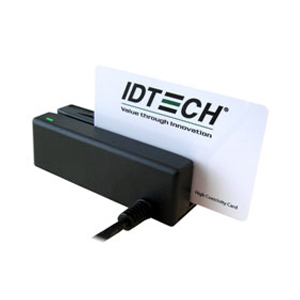

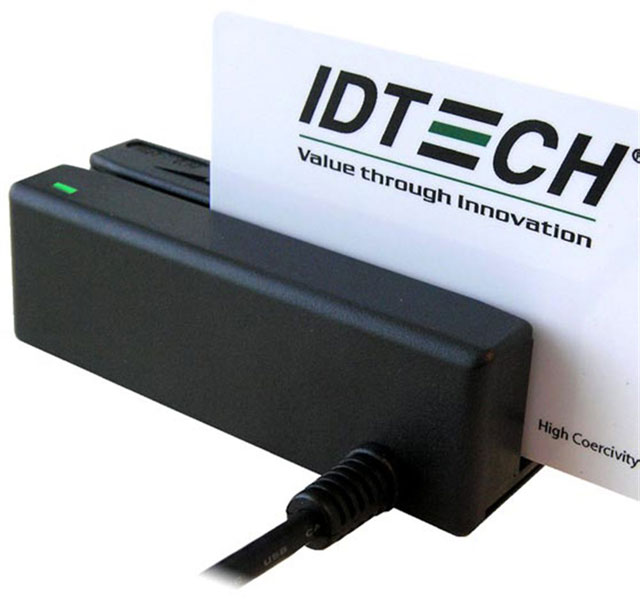

ID Tech IDMB-335112B Credit Card Swiper

ID Tech MiniMag 2 - ID TECH MiniMag II IDMB Magnetic Stripe Reader - Dual Track - 60 in/s - USB - Black
$57.27
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

Small footprint to fit in tight places
The IDTech MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. The Reader output format can be customized with user-friendly, Windows-based MagSwipe Configuration Utility. For example, after reading and validating card data, the unit can be programmed to parse the data, insert control characters, and add prefix/suffix characters while maintaining data integrity through vertical and longitudinal error checking. The reader also includes language options to ensure that the correct data is sent to the terminal.
ID Tech IDMB-335112B Overview

The MiniMag II is an intelligent, programmable Magnetic stripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to two tracks of information with a single swipe in either direction. It has a beeper and three color LED indicator to signal a successful read. It supports USB HID Interface.

Protect Your Product

Full specifications (PDF)

Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Bi-directional Reading:
Yes
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
1.1"
Width:
1.3"
Length:
3.5"
Weight (Approximate):
4.60 oz
Miscellaneous
Additional Information:
  • Small footprint to fit in tight places
  • Bi-directional swipe reading
  • Superior reading of high jitter, scratched, and worn magstripe cards
  • Threaded inserts for mounting
  • Mag swipe PC software makes configuration changes easy
  • JPOS & OPOS support for all interfaces is provided
Item Numbers
GTIN: 0655093140142, 0682017460147, 0783555140345
UPC: 655093140142, 682017460147, 783555140345
EAN: 0655093140142, 0682017460147, 0783555140345
UNSPSC: 43211702


The ID Tech IDMB-335112B is also known as IDTech IDT-IDMB335112B or IDMB335112B .
