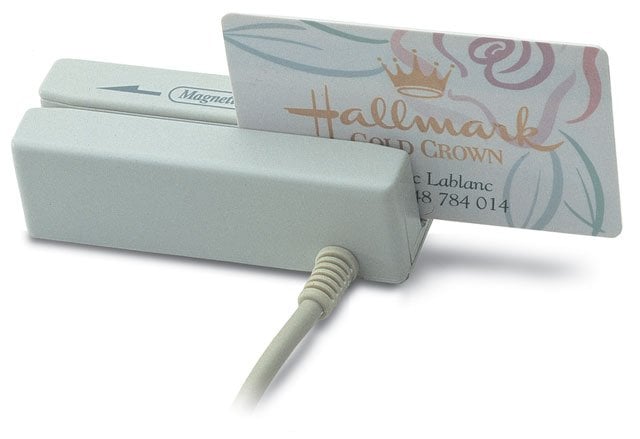

ID Tech IDMB-334112 Credit Card Swiper

ID Tech MiniMag 2 - ID TECH MiniMag IDMB-334112 Magnetic Stripe Reader - Dual Track - 60 in/s - USB - White
$68.35
In Stock

Full specifications (PDF)

Small footprint to fit in tight places
The IDTech MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. The Reader output format can be customized with user-friendly, Windows-based MagSwipe Configuration Utility. For example, after reading and validating card data, the unit can be programmed to parse the data, insert control characters, and add prefix/suffix characters while maintaining data integrity through vertical and longitudinal error checking. The reader also includes language options to ensure that the correct data is sent to the terminal.
ID Tech IDMB-334112 Overview

The MiniMag Intelligent Reader delivers exceptional performance in an intelligently designed housing. It can read up to 3 tracks of magnetic stripe card data regardless of swiping directioin or speed that increases usability. MiniMag's compact footprint is ideal for POS, Security, Loyalty and other applications where space is limited.

Full specifications (PDF)

Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
USB:
Yes
Physical Characteristics
Color:
White
Height:
1.1"
Width:
1.3"
Length:
3.5"
Weight (Approximate):
4.60 oz
Miscellaneous
Additional Information:
  • Easy to Use and Install
  • Many Programmable Features
  • Signifies successful reads with a beeper and tri-color LED indicator
Item Numbers
GTIN: 0682017460369
UPC: 682017460369
EAN: 0682017460369
UNSPSC: 43211702


The ID Tech IDMB-334112 is also known as IDTech IDT-IDMB334112 or IDMB334112 .
