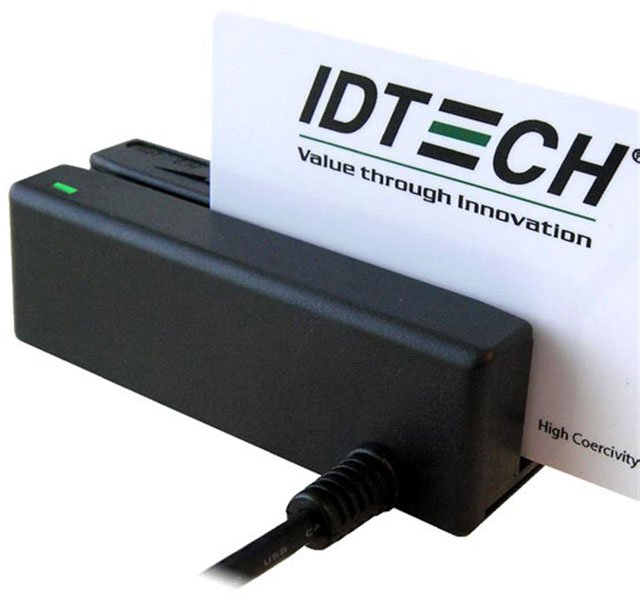

ID Tech IDMB-332133B Credit Card Reader

Part Number: IDMB-332133B
Model: MiniMag II
$62.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Magnetic Stripe Track Configuration
Triple Track
Magnetic Stripe Track Number
Track 1Track 2Track 3
Minimum Swipe Speed
3 in/s
Maximum Swipe Speed
60 in/s

Product Description:

  ID TECH MiniMag II IDMB Magnetic Stripe Reader - Triple Track - 60 in/s - Serial - Black

MiniMag II Credit Card Reader Model Overview

The IDTech MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. The Reader output format can be customized with user-friendly, Windows-based MagSwipe Configuration Utility. For example, after reading and validating card data, the unit can be programmed to parse the data, insert control characters, and add prefix/suffix characters while maintaining data integrity through vertical and longitudinal error checking. The reader also includes language options to ensure that the correct data is sent to the terminal.
ID Tech IDMB-332133B Credit Card Reader Overview

The MiniMag II is an intelligent, programmable Magnetic stripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three color LED indicator to signal a successful read.

Technical Information
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Number of Swipes (Head Life):
1000000
Bi-directional Reading:
Yes
Interfaces/Ports
Serial:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Height:
1.1"
Width:
1.3"
Length:
3.5"
Weight (Approximate):
4.60 oz
Miscellaneous
Additional Information:
  • Small footprint to fit in tight places
  • Bi-directional swipe reading
  • Superior reading of high jitter, scratched, and worn magstripe cards
  • Threaded inserts for mounting
  • Mag swipe PC software makes configuration changes easy
  • JPOS & OPOS support for all interfaces is provided
Item Numbers
GTIN: 0078154658071, 0682017460505
UPC: 078154658071, 682017460505
EAN: 0078154658071, 0682017460505
UNSPSC: 43211702
