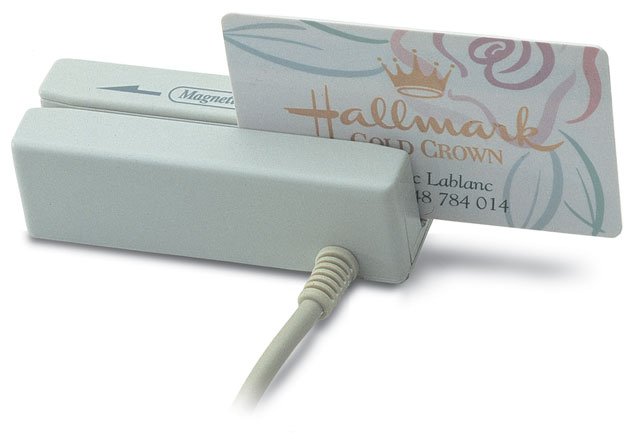

The MiniMag™ Compact Intelligent Magstripe Swipe Reader is designed for optimal performance in a space-saving format. Capable of reading up to 3 tracks of magnetic stripe card data in either direction, it enhances usability across various applications, including POS systems and loyalty programs. With innovative mounting options, the MiniMag easily adapts to your setup, ensuring a seamless integration. Its user-friendly software allows for customization, making it an ideal choice for businesses seeking efficiency combined with reliability.
Programmable Functions: Customize output format with a Windows-based MagSwipe Configuration Utility.
Exceptional Reliability: Reads up to 1,000,000 passes with a visual and audible indicator for successful reads.
Flexible Mounting: Can be mounted in various orientations using threaded inserts or Velcro.
Compact Design: With a size of 3.54 x 1.34 inches, perfect for limited spaces.
Specifications:
Electrical:
Power: 5 VDC +/-10%
Current: 1mA per track (max)
External Power Supply: 5 VDC/350mA (RS-232 only)
Environmental:
Operating Temperature: 32°F to 131°F (0°C to 55°C)
Storage Temperature: -22°F to 158°F (-30°C to 70°C)
Humidity: Maximum 95% non-condensing
Mechanical:
Dimensions: 3.54" x 1.34" x 1.10"
Weight: Approximately 4.6 oz.
Cable Length: 6-foot side exit (bottom exit available)
Indicators:
Tri-colored LED and beeper for read indication
ID Tech IDMB-332123 Credit Card Reader Overview
The MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. Programming is easy using ID TECH's Magswipe PC software.
What is the Cisco FL-CPS-OM-SW7 Feature License used for?
The Cisco FL-CPS-OM-SW7 is a Feature License for Operations Management that enables advanced management capabilities on Cisco data routing and switching infrastructure. This license activates software features that allow you to monitor, manage, and optimize network performance across your deployed Cisco devices. We offer this license as part of our comprehensive Cisco product portfolio to help streamline your network operations.
What warranty and support does the Cisco FL-CPS-OM-SW7 include?
The Cisco FL-CPS-OM-SW7 comes with software application updates for bug fixes and telephone technical support at no charge for the first 12 months following the date of purchase. You can download software updates directly from Cisco's support portal. For complete warranty terms and additional support options, visit www.cisco.com/go/warranty or contact us today to discuss extended support plans available from us.
Is the Cisco FL-CPS-OM-SW7 compatible with Cisco 300 Series and Business 110 Series Switches?
Yes, the Cisco FL-CPS-OM-SW7 Feature License is designed to work with Cisco's switching infrastructure, including the 300 Series and Business 110 Series switches that support advanced management protocols and MIB standards. The license enables Operations Management features across these platforms to provide centralized visibility and control. Contact us today to verify compatibility with your specific switch models and deployment requirements.
What management protocols and standards does this Operations Management license support?
The Cisco FL-CPS-OM-SW7 supports extensive SNMP-based management through multiple Cisco MIBs including CISCO-FLASH-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PROCESS-MIB, and many others for comprehensive device monitoring. It also supports standard SNMP protocols including SNMPv2-MIB, SNMP-FRAMEWORK-MIB, and SNMP-USM-MIB for secure communications. These standards enable seamless integration with enterprise network management systems and monitoring tools available from us.
Can I use the Cisco FL-CPS-OM-SW7 to monitor network performance metrics and cable diagnostics?
Yes, the Operations Management features enabled by this license include capabilities for monitoring switching capacity, forwarding rates, and network performance across supported Cisco switches. The license also enables cable diagnostics functionality to quickly identify and troubleshoot network cable faults and shorts. Visit barcodesinc.com or contact us today to learn how we can help deploy this license across your network infrastructure.
What are the environmental operating specifications for systems using the Cisco FL-CPS-OM-SW7?
Systems running the Cisco FL-CPS-OM-SW7 license are designed to operate in environments with temperatures ranging from 0° to 50°C (depending on specific switch model), humidity levels from 5% to 95% relative humidity (noncondensing), and altitudes up to 10,000 feet. The license itself is software-based and will function across Cisco's enterprise-grade switching platforms that meet these environmental standards. Contact us today for guidance on deploying this solution in your specific facility environment.
The ID Tech IDMB-332123 Credit Card Reader is also known as
IDMB332123
Full specifications (PDF)
