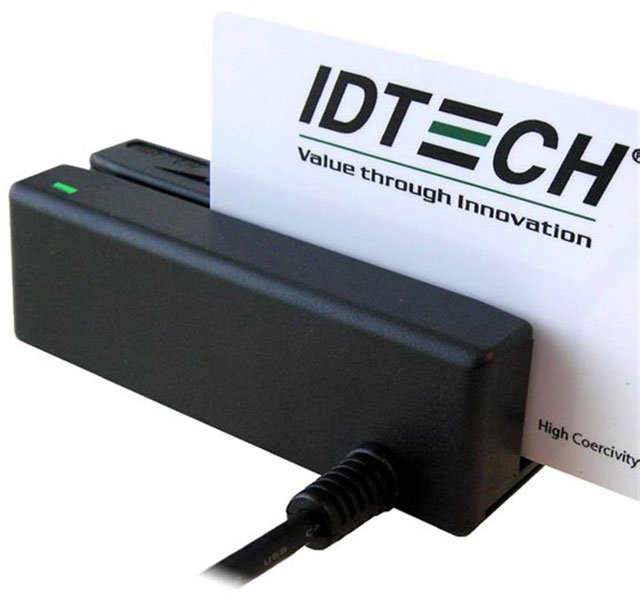

ID Tech IDMB-332112B Credit Card Swiper

ID Tech MiniMag 2 - ID TECH MiniMag II IDMB Magnetic Stripe Reader - Dual Track - 60 in/s - Serial - Black
  • Interfaces: Keyboard, RS232, RS232 Port Powered, USB keyboard, USB-CDC, or USB-HID
  • User- Friendly configuration software, simplified data editing and configuration
  • Discriminates card data formats between AAMVA and CA DMV
  • Reads up to three tracks of information
  • Reliable MagStripe reader for a minimum of one million card swipes
  • Clear identification of successful card reads with a beeper and LED indicators
  • Can be used free-standing or mounted to work with a variety of applications
  • Threaded inserts for easy and flexible mounting
Read More
$57.27
In Stock:
Ships Same Day

Full specifications (PDF)

Small footprint to fit in tight places
The IDTech MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. The Reader output format can be customized with user-friendly, Windows-based MagSwipe Configuration Utility. For example, after reading and validating card data, the unit can be programmed to parse the data, insert control characters, and add prefix/suffix characters while maintaining data integrity through vertical and longitudinal error checking. The reader also includes language options to ensure that the correct data is sent to the terminal.
ID Tech IDMB-332112B Overview

MiniMag II IDMB Magnetic Stripe Reader is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements.

Protect Your Product

Full specifications (PDF)

Technical Information
Magnetic Stripe Track Configuration:
Dual Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Interfaces/Ports
Serial:
Yes
Physical Characteristics
Color:
Black
Height:
1.1"
Width:
1.3"
Length:
3.5"
Item Numbers
GTIN: 0078154188882
UPC: 078154188882
EAN: 0078154188882
UNSPSC: 43211702


The ID Tech IDMB-332112B is also known as IDTech IDT-IDMB332112B or IDMB332112B .
