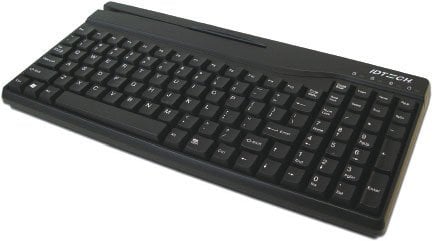

ID TECH's VersaKey Compact 230 is the perfect solution for businesses requiring a space-efficient and multifunctional POS keyboard. With its compact 14-inch design, this 103/104 key keyboard incorporates an integrated magnetic stripe card reader, ensuring high productivity in retail environments like hospitality, airlines, postal services, and more. Its durable construction meets the demands of high-use POS applications, featuring spill-proof key switches and extensive compatibility with USB-KB and PS/2 interfaces.
Key Features:
Compact 14" form factor for limited workspace.
Integrated MagStripe reader supports up to 3 tracks of data.
Durable design with 20 million keystrokes and 1 million card swipes.
Plug-n-Play compatibility with Windows operating systems.
Available in multiple language layouts for diverse needs.
3-year warranty for peace of mind.
Specifications:
Electrical:
Power Requirement: +5.0 VDC ±10%, 60mA Max
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 40°C (-4°F to 104°F)
Drop: 24" (1 corner, 2-sidelines, 3-sides)
Vibration: 60 Hz/sec, 3mm amplitude, X,Y,Z each axis for 2 hours
Mechanical:
Total Travel: 4.0 ± 0.5 mm
Operating Force: 50 ± 7g
Color: Black
Material: ABS, meets UL94HB flammability specs
Cable Information:
Length: 1.5M (5ft)
Connector: PS/2 or USB
Reliability:
Operating Life: 20,000,000 keystrokes
ESD Immunity: 8KV to 15 kV min
MTBF: More than 60,000 power-on hours
ID Tech IDKA-334312B Keyboards Overview
Versatile, Full Function POS Keyboard
VersaKey features an enhanced layout keyboard with a full featured MagStripe card reader. The keyboard layout provides separated function keys, control keys, curser keys, and a full numerical input keypad. There are also many country specifi c key layouts available.
Versatile MagStripe Reader
VersaKey's integrated MagStripe reader delivers the MagStripe data in the format needed. If the host computer's application software is expecting the MagStripe data in a particular order and format, the reader's output can be confi gured to output a simulated keyboard-entered data stream by rearranging data blocks, adding terminating characters and special preamble and/or postamble character strings to the decoded card data.
Durable Keyboard and Card Reader Combination
VersaKey is designed to provide the reliability needed for usage in repetitive and high volume operation. The unit is proven to endure more than 10 million key operations and 1 million swipes. Standard warranty of 3 years provides confi dence that the unit is built to last.
Intelligent Interface Options
VersaKey is available with a USB or PS/2 interface depending on the user's needs. For convenience, the USB version also comes with two additional USB Hub connections. Both USB and PS/2 keyboard versions have only one communication cable. The keyboard data and the MagStripe data are output from the one cable. The MagStripe data transmitted through the keyboard cable and it appears to originate directly from the keyboard.
The ID Tech IDKA-334312B Keyboards is also known as
IDT-IDKA334312B
or IDKA334312B.
