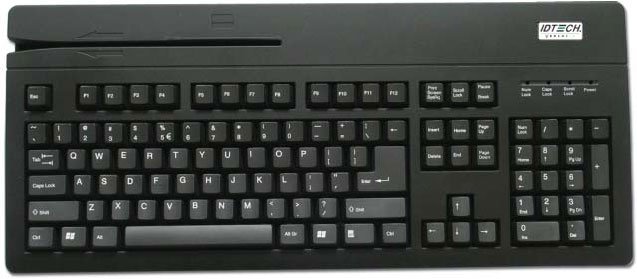

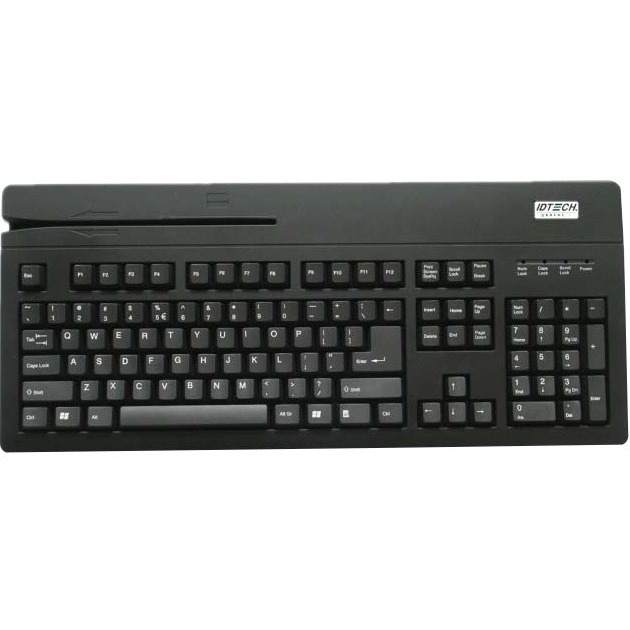

The VERSAKEY POS Keyboard with MagStripe Reader offers a reliable and efficient solution for high-volume transaction environments. Featuring an enhanced layout with separated function keys, control keys, cursor keys, and a full numerical keypad, this keyboard is designed for user comfort and productivity. Built to withstand over 10 million key operations and 1 million swipes, it ensures durability that businesses can count on. The integrated MagStripe reader enhances its versatility and is configurable to meet specific software requirements, making it an ideal tool for any retail operation.
Key Features
Durable design: Survives more than 10 million key presses and 1 million swipes.
Customizable layout: Offers various country-specific key layouts.
Multiple interface options: Available with USB or PS/2 connections.
Standard warranty: 3-year warranty for added peace of mind.
Specifications
Power Requirement: +5.0 VDC ±10%, 60mA Max.
Operating Temperature: 0°C to 40°C (32°F to 104°F).
Storage Temperature: -20°C to 40°C (-4°F to 104°F).
Drop Resistance: 610 mm (24") drop, 1 corner and 2-side lines.
Size: 469.9 mm (L) x 203.9 mm (W) x 42.8 mm (H).
Weight: Approx. 1.2 kg.
Material: High Impact PS, meets flammability spec. UL94HB.
Keyboard Operating Life: 20,000,000 keystrokes.
MagStripe Reader Life: 1,000 cycles.
Swipe Speed: 3 to 60 inches per second, bi-directional.
Card Thickness: 0.015 to 0.045 inches.
ID Tech IDKA-234133B Keyboards Overview
Versatile, Full Function POS Keyboard
VersaKey features an enhanced layout keyboard with a full featured MagStripe card reader. The keyboard layout provides separated function keys, control keys, curser keys, and a full numerical input keypad. There are also many country specifi c key layouts available.
Versatile MagStripe Reader
VersaKey's integrated MagStripe reader delivers the MagStripe data in the format needed. If the host computer's application software is expecting the MagStripe data in a particular order and format, the reader's output can be confi gured to output a simulated keyboard-entered data stream by rearranging data blocks, adding terminating characters and special preamble and/or postamble character strings to the decoded card data.
Durable Keyboard and Card Reader Combination
VersaKey is designed to provide the reliability needed for usage in repetitive and high volume operation. The unit is proven to endure more than 10 million key operations and 1 million swipes. Standard warranty of 3 years provides confi dence that the unit is built to last.
Intelligent Interface Options
VersaKey is available with a USB or PS/2 interface depending on the user's needs. For convenience, the USB version also comes with two additional USB Hub connections. Both USB and PS/2 keyboard versions have only one communication cable. The keyboard data and the MagStripe data are output from the one cable. The MagStripe data transmitted through the keyboard cable and it appears to originate directly from the keyboard.
The ID Tech IDKA-234133B Keyboards is also known as
IDT-IDKA234133B
or IDKA234133B.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
