ID Tech IDKA-234112B Keyboards

Part Number: IDKA-234112B
Model: VersaKey
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Keyboard/Keypad Cable Length
5 ft
Keyboard/Keypad Features
Plug & Play
Keyboard/Keypad Host Interface
USB
Built-in Devices
Magnetic Stripe Reader

Product Description:

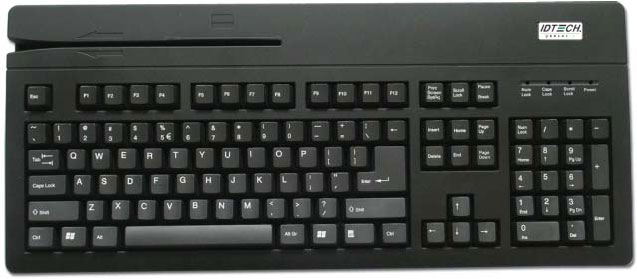

  ID TECH VersaKey POS Keyboard with MagStripe Reader (IDKA-23XXXX Series) - Magnetic Stripe Reader - USB - Black

ID Tech VersaKey Keyboards Model Overview

The VERSAKEY POS Keyboard with MagStripe Reader offers a reliable and efficient solution for high-volume transaction environments. Featuring an enhanced layout with separated function keys, control keys, cursor keys, and a full numerical keypad, this keyboard is designed for user comfort and productivity. Built to withstand over 10 million key operations and 1 million swipes, it ensures durability that businesses can count on. The integrated MagStripe reader enhances its versatility and is configurable to meet specific software requirements, making it an ideal tool for any retail operation.


Key Features
  • Durable design: Survives more than 10 million key presses and 1 million swipes.
  • Integrated MagStripe reader: Provides configurable output to meet host application needs.
  • Customizable layout: Offers various country-specific key layouts.
  • Multiple interface options: Available with USB or PS/2 connections.
  • Standard warranty: 3-year warranty for added peace of mind.

Specifications
  • Power Requirement: +5.0 VDC ±10%, 60mA Max.
  • Operating Temperature: 0°C to 40°C (32°F to 104°F).
  • Storage Temperature: -20°C to 40°C (-4°F to 104°F).
  • Drop Resistance: 610 mm (24") drop, 1 corner and 2-side lines.
  • Size: 469.9 mm (L) x 203.9 mm (W) x 42.8 mm (H).
  • Weight: Approx. 1.2 kg.
  • Material: High Impact PS, meets flammability spec. UL94HB.
  • Keyboard Operating Life: 20,000,000 keystrokes.
  • MagStripe Reader Life: 1,000 cycles.
  • Swipe Speed: 3 to 60 inches per second, bi-directional.
  • Card Thickness: 0.015 to 0.045 inches.
ID Tech IDKA-234112B Keyboards Overview

ID TECH, the leader in MagStripe Technology, is proud to announce our newest full-sized POS keyboard - VersaKey. The VersaKey features an enhanced MS Windows layout keyboard with a full featured MagStripe card reader.

The keyboard layout provides separated function keys, control keys, curser keys, and a full numerical input keypad. There are also many country specific key layouts available. It comes in a USB Keyboard interfaces.

Features:

  • Full-Function Keyboard & Card Reader
  • 3 or 2 Tracks Magnetic Strip Reader, full data editing capability
  • USB-Keyboard or PS/2 KB interface
  • Operating life exceeds 1,000,000 card swipes
  • 20,000 key strokes guaranteed
  • Single cable convenience between the keyboard and PC
  • Full-size standard Microsoft Keyboard layout with LED indicators
  • Plug-n-Play with Windows operation systems
  • Extra two-port USB hub for the USB version
  • Spainish, French and UK, keyboard layouts available
Keyboard/Keypad
Keyboard/Keypad Cable Length:
5 ft
Keyboard/Keypad Features:
Plug & Play
Interfaces/Ports
Keyboard/Keypad Host Interface:
USB
Built-in Devices
Built-in Devices:
Magnetic Stripe Reader
Reliability
Keystroke Life:
20000000 Million Cycle
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Product Material:
ABS
Height:
1.7"
Width:
8"
Length:
18.5"
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0028206415572, 0682017460482, 0783555117224, 0799471563427
UPC: 028206415572, 682017460482, 783555117224, 799471563427
EAN: 0028206415572, 0682017460482, 0783555117224, 0799471563427
UNSPSC: 43211706
