ID Tech IDEM-241A Credit Card Reader

ID Tech Augusta - ID TECH The Augusta, an EMV L1-L2 Chip and MagStripe Reader - Triple Track - 60 in/s - Black, Gray
  • Description: Counter-top reader with Universal SDK support for Windows and Android
  • USB Keyboard and HID interface options, with device-side TDES/AES DUKPT encryption
  • "Dip and swipe" reader, L1/L2 EMV certified, Quick Chip & M/Chip Fast-capable
  • Weighted base option available and bottom exit cable may be set to the back or side
  • Quick Chip in Keyboard Mode (patent-pending) for instant integration into virtual-terminal environments
  • Uses NGA command/response protocol and NGA key injection protocol
Read More
$170.64
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

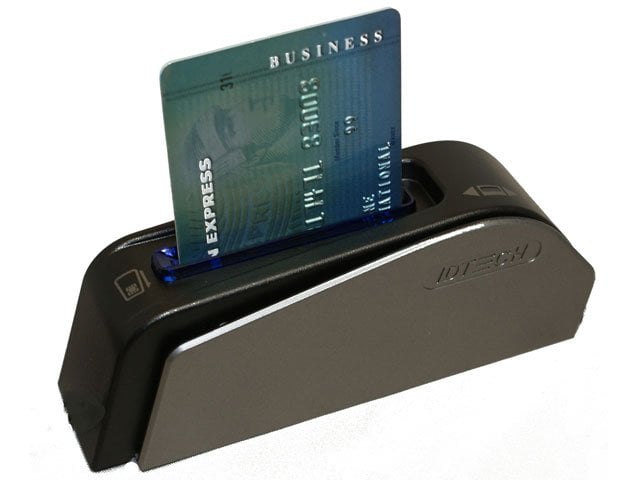

ID Tech Augusta Credit Card Reader Model Overview
The Augusta is a secure EMV chip and magnetic stripe reader that offers retailers a simple upgrade path to EMV from traditional desktop magnetic stripe readers. This reader is able to provide superior reading performance while also encrypting sensitive magnetic stripe and EMV data. With all data encrypted, the Augusta can participate in end-to-end solutions reducing the risk of data compromises.
ID Tech IDEM-241A Credit Card Reader Overview

Smooth Transition to EMV:

The Augusta is a secure EMV chip and magnetic stripe reader that is specifically designed to offer retailers a simple upgrade path to EMV from traditional desktop magnetic stripe readers. This reader is able to provide superior reading performance while also encrypting sensitive magnetic stripe and EMV data. With all data encrypted, the Augusta can participate in end-to-end solutions reducing the risk of data compromises.

EMV/Universal SDK:

This reader has been designed to use ID TECH's Common L2 Kernel and can be utilized with ID TECH's Universal SDK. By using the Universal SDK, coding efforts to the Augusta and other ID TECH Common L2 products is greatly reduced.

Easy To Use:

The Augusta is very user friendly and reliable. It is available in USB-HID configuration and uses common HID drivers. Beepers, LEDs and bidirectional communication make interacting with the unit very intuitive. The location of the mounting holes makes it easy to mount to any previous MiniMag II or SecuRED mounting bracket. The Augusta is able to support 1,000,000 magnetic stripe operations or 500,000 EMV transactions.

Virtual Terminal Support:

ID TECH's patent-pending Augusta card reader brings together Quick Chip technology, USB keyboard emulation, and a proven EMV L2 kernel for the first time. The result is an EMV solution that makes it exceptionally easy for virtual terminal customers to benefit from two-second transaction times while minimizing PCI-DSS scope

Features:

  • Familiar form factor
  • Encryption capable 3-track MagStripe swiper and ICC reader
  • ICC reader that is EMV L1 certified and hosts the Common L2 kernel
  • Visual and audible feedback to signal good/bad card reads, etc
  • TDES and AES encryption algorithm for MagStripe and contact EMV output
  • Supports ID TECH standard TR31 (and optional TR34) based Remote Key Injection
  • Supports Quick Chip!
  • Use Quick Chip in Keyboard Mode (patent-pending) for instant integration into virtual-terminal environments.
  • SRED version available now -- already PCI certified
Technical Information
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Number of Swipes (Head Life):
1000000
Magnetic Stripe Format:
  • ISO 7811
  • AAMVA
EMV Chip Format:
ISO 7816
Bi-directional Reading:
Yes
Encryption:
Yes
Interfaces/Ports
Keyboard Wedge:
Yes
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
  • Black
  • Gray
Height:
1.8"
Width:
1.4"
Length:
5"
Weight (Approximate):
10.24 oz
Item Numbers
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The ID Tech IDEM-241A Credit Card Reader is also known as IDT-IDEM241A or IDEM241A.
