IDEA-336133 Credit Card Reader

The IDEA-336133 Credit Card Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

ID Tech EasyMag - ID TECH EasyMag IDEA Magnetic Stripe Reader - Triple Track - 60 in/s - USB - Beige

Features interfaces including RS232, Keyboard wedge, USB-CDC, USB-KB, USB-HID
User Friendly Configuration Software which is capable of editing and formatting data such as dividing, rearranging, and editing fields of magnetic card data with just a click of a button
Reliable for a minimum of 1,000,000 passes
Can be used free standing or mounted through threaded inserts
More than a 5 inch reading slot makes it easy to swipe a card for an accurate read
Support USB 2.0 full speed

Need a different version? See all EasyMag Credit Card Readers

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

EasyMag Credit Card Reader Model Overview

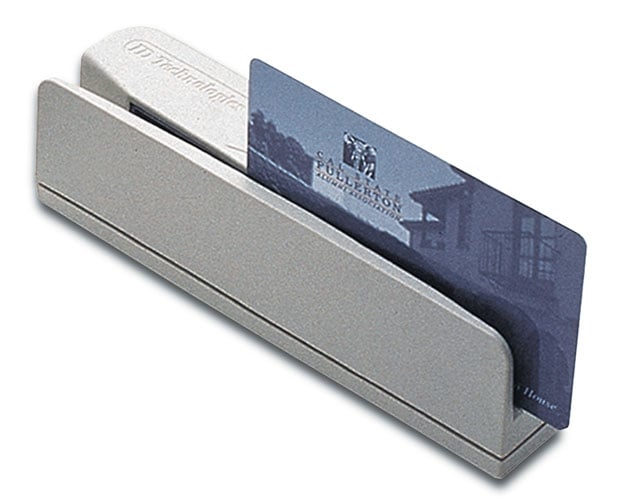

The ID Tech EasyMag is an intelligent magnetic stripe reader with a fully integrated USB interface (No adapter!). Designed for busy retail environments where speed and dependability are equally important, its standard length slot (more than 5 inches) makes it easy for anyone to swipe a card and get a good read on the very first try. It can also be programmed to rearrange, edit, and validate fields of entered data just like any other ID Tech reader.

IDEA-336133 Credit Card Reader Overview

The EasyMag is an intelligent, programmable MagStripe reader. EasyMag provides a wide range of functionality and value in a convenient package size. The entire unit is just 90mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. Programming is easy using ID TECH's Magswipe PC software.

Detailed Specs

Full specifications (PDF)

Technical Information

Magnetic Stripe Track Configuration:

Triple Track

Magnetic Stripe Track Number:

Track 1
Track 2
Track 3

Minimum Swipe Speed:

3 in/s

Maximum Swipe Speed:

60 in/s

Number of Swipes (Head Life):

1000000

Magnetic Stripe Format:

AAMVA
ISO 7811

Bi-directional Reading:

Yes

Interfaces/Ports

USB:

Yes

Reliability

MTBF:

300000 Hour

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Product Color:

Beige

Height:

1.1"

Width:

1.3"

Length:

3.5"

Weight (Approximate):

8 oz

Miscellaneous

Additional Information:

Longer footprint & offset slot
Bi-directional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Threaded inserts for mounting
Reads ISO7811, AAMVA, & most other card data formats
Magswipe PC software makes configuration changes easy
JPOS & OPOS support for all interfaces is provided

Item Numbers

UNSPSC: 43211702
