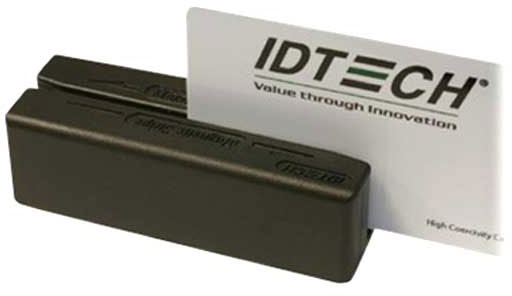

ID Tech IDEA-332133B Credit Card Swiper

ID Tech - EASYMAG, RS-232 MSR, TRK123, BLACK
$129.88
Global Supply Chain Constraints; Order now to be first when stock is available

Full specifications (PDF)

The EasyMag reads up to three tracks of information with a single swipe in either direction.
The ID Tech EasyMag is an intelligent magnetic stripe reader with a fully integrated USB interface (No adapter!). Designed for busy retail environments where speed and dependability are equally important, its standard length slot (more than 5 inches) makes it easy for anyone to swipe a card and get a good read on the very first try. It can also be programmed to rearrange, edit, and validate fields of entered data just like any other ID Tech reader.
ID Tech IDEA-332133B Overview
The EasyMag is an intelligent, programmable MagStripe reader. EasyMag provides a wide range of functionality and value in a convenient package size. The entire unit is just 90mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. Programming is easy using ID TECH's Magswipe PC software.
Protect Your Product

Full specifications (PDF)

Technical Information
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
65 in/s
Magnetic Head Life:
1000000 Swipe
Magnetic Stripe Format:
  • AAMVA
  • ISO 7811
Bi-directional Reading:
Yes
Interfaces/Ports
Serial:
Yes
Reliability
MTBF:
300000 Hour
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
1.6"
Width:
1.3"
Length:
5.1"
Miscellaneous
Additional Information:
  • Longer footprint & offset slot
  • Reads up to 3 tracks of information
  • Bi-directional swipe reading
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Threaded inserts for mounting
  • Reads ISO7811, AAMVA, & most other card data formats
  • Magswipe PC software makes configuration changes easy
  • JPOS & OPOS support for all interfaces is provided
Certifications & Standards:
  • FCC
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211702


The ID Tech IDEA-332133B is also known as IDTech IDT-IDEA332133B or IDEA332133B .
