ID Tech idca-3761 Barcode Card Reader

The ID Tech idca-3761 Barcode Card Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
ID Tech OmniFare - ID TECH OmniFare Magnetic Stripe Reader - Triple Track - 60 in/s
  • TTL, KB, RS232, USB-KB, USB-RS232 and Wiegand interfaces
  • Reads most barcodes symbologies and/or MagStripe Data
  • Superior reading of jitter, scratched, and worn MagStripe Cards
  • Dual sided MagStripe head versions available
  • Die-cast metal plate allows flexible mounting options
  • Rugged weatherproof design with sealed or extended temperature options
  • Reliable for a minimum of 1,000,000 passes
  • Signifies successful reads with a beeper and LED indicator
  • Data output can be programmed into needed format
  • Reads up to 3 tracks of information
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

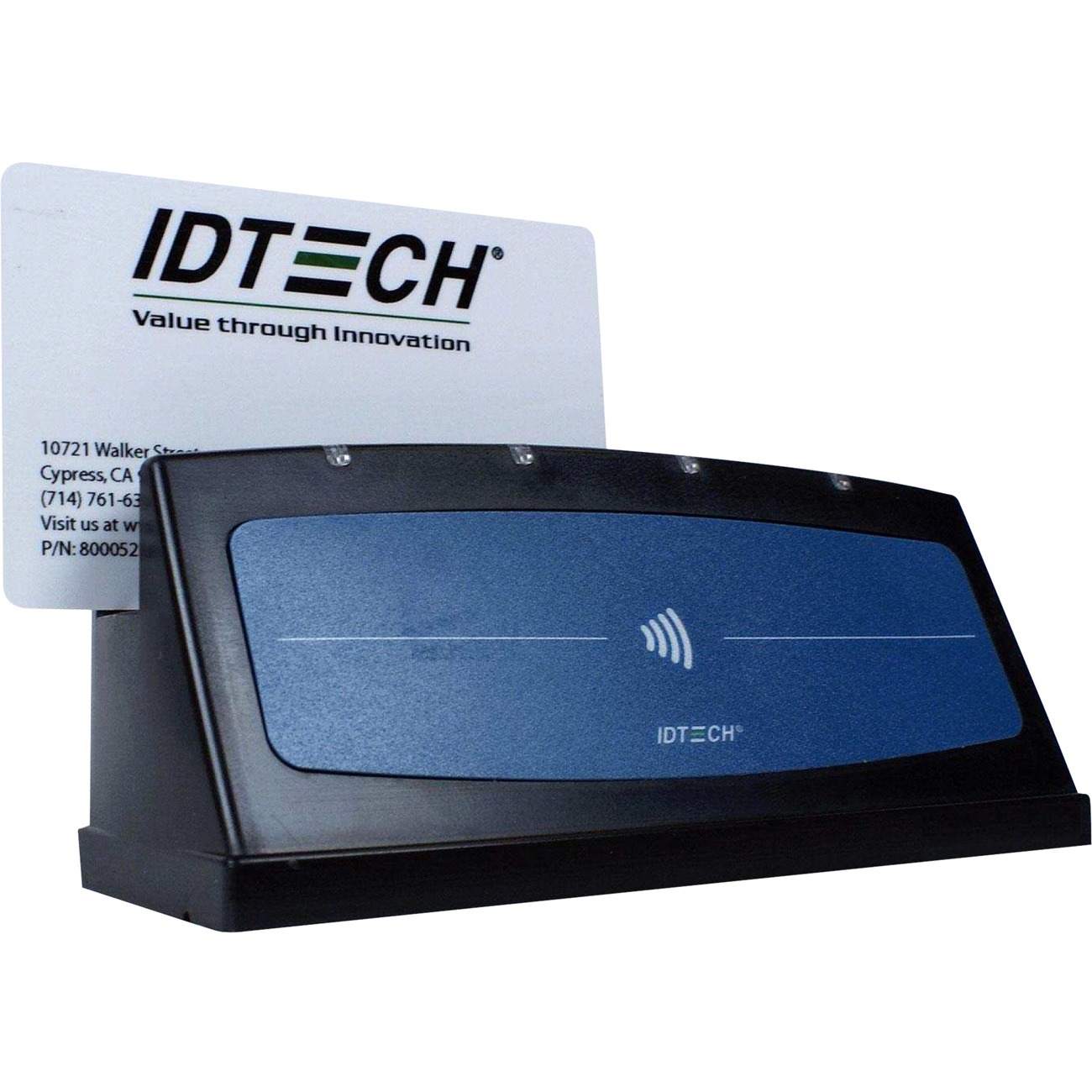

ID Tech OmniFare Barcode Card Reader Model Overview
The new IDTech OmniFare now reads Mifare proximity cards. The OmniFare is a hybrid device that is capable of reading all three tracks of magnetic stripe data and Mifare media. OmniFare is a rugged, weatherized reader with a small footprint and is ideal for outdoor usage. There are two serial communication interface options, either a high-speed 2.0 USB-HID interface or an RS232 interface which provides standard COM port operations. Its unique dual head design improves your customers' experience by ensuring first time reading reliability by reading cards being swiped regardless of their magnetic stripe orientation. Mifare proximity media is quickly read by simply waving/tapping the media on OmniFare's conveniently sloped reading surface.
ID Tech idca-3761 Barcode Card Reader Overview

Proximity smart card reading technology meets magnetic stripe readingtechnology with the hybrid OmniFare card reader. Customers will appreciate the versatility of a card reader that reads MiFare contactless cards, as well as MagStripe cards. The OmniFare reads data from a variety of contactless sources including cards, key fobs, and other tokens.The OmniFare is offered with RS-232 and USB HID interfaces.

Technical Information
Number of Read Heads:
2
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
3 in/s
Maximum Swipe Speed:
60 in/s
Magnetic Head Life:
1000000 Swipe
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.4"
Width:
2.1"
Length:
5"
Weight (Approximate):
1.40 lb
Miscellaneous
Additional Information:
  • Rugged design for weather resistant operation, and protection from vandalism
  • Flexible mounting options
  • Compatible with MiFare cards & ISO magnetic stripe cards
  • Superior reading of jitter, scratched, and worn MagStripe cards
  • Reliable MagStripe reader for a minimum of one million passes
  • Signifies successful read operation with beeper and LED indicator
  • Dual-head design for MagStripe reading in both directions
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211702
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The ID Tech idca-3761 Barcode Card Reader is also known as IDT-IDCA3761 or idca3761.
