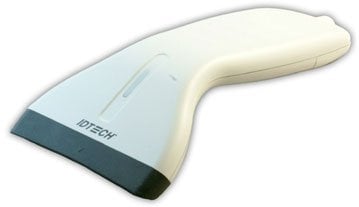

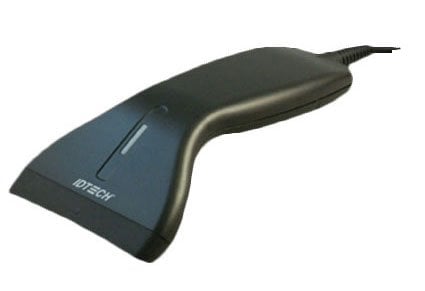

ID Tech EconoScan II – Barcode Scanner – Scanner with Cable and Stand

The EconoScan™ II Short Range CCD Barcode Scanner is engineered for exceptional performance at an unbeatable price. Designed by ID TECH, this next-generation scanner features advanced decoding technology, making it the pinnacle of value and reliability. Its lightweight, ergonomic design ensures comfort during prolonged use, making it perfect for diverse applications including retail, logistics, and light industries. With a remarkable scan rate of 200 scans per second, it effortlessly reads small, damaged, or high-density barcodes up to 4 inches in length, providing accuracy and efficiency for your operations.

Key Features:

• Super slim body design for easy handling
• Longest reading range in its class for versatile usage
• High scan rate of 200 scans/sec for efficient processing
• Supports most linear barcode symbologies for broad compatibility
• Data formatting features enhance data management
• Continuous and flash scanning modes for flexible operation

Specifications:

• Electrical:
  • Power Requirements: 5.0 VDC ± 5%
  • Interfaces: PS/2, RS232, USB Keyboard
  • Light Source: 660 nm visible red LED
  • Sensor: 2500 pixel CCD
• Environmental:
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -26°C to 60°C (-14.8°F to 140°F)
  • Humidity: 10%-80% relative humidity
  • Drop Test: 3.94 feet (1.2 m)
• Mechanical:
  • Dimensions: 6.10 inches x 3.07 inches x 0.63 inches
  • Weight: 3.0 oz. (without cable)
  • Indicator: LED, beep tone
  • Color: Beige
  • Field Width: 5.59 inches for 10.5 mil code 39 at 175mm from the lens plate
  • Resolution: 0.1 mm (4 mils)
  • PCS: 45% or more
  • Scan Rate: 200 scans per second
  • Range: 0 inches (0 cm) to 4 inches (10.15 cm)
• Symbologies:
  • Code 39, Full ASCII Code 39, Code 32, Code 128
  • Code 93, Code 11, Codabar/NW7
  • All UPC/EAN/JAN Codes (EAN-13, EAN-8, UPC-A, EPC-E, EAN-128)
  • Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5
  • Matrix 2 of 5, Chinese Postage Code, MSI/PLESSY
  • Italian Pharmacy Code (RSS, GS1 available 2010)
• Approvals: FCC Part 15 Class B, CE EMC Class B
