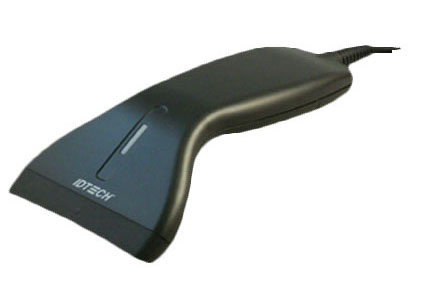

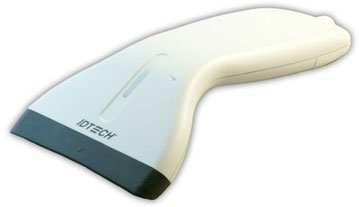

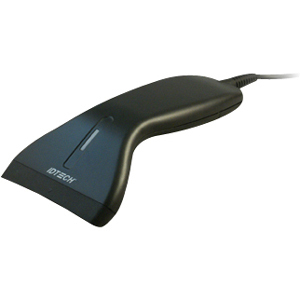

ID Tech EconoScan II Barcode Scanner Model Overview
The EconoScan™ II Short Range CCD Barcode Scanner is engineered for exceptional performance at an unbeatable price. Designed by ID TECH, this next-generation scanner features advanced decoding technology, making it the pinnacle of value and reliability. Its lightweight, ergonomic design ensures comfort during prolonged use, making it perfect for diverse applications including retail, logistics, and light industries. With a remarkable scan rate of 200 scans per second, it effortlessly reads small, damaged, or high-density barcodes up to 4 inches in length, providing accuracy and efficiency for your operations.
Key Features:
Super slim body design for easy handling
Longest reading range in its class for versatile usage
High scan rate of 200 scans/sec for efficient processing
Supports most linear barcode symbologies for broad compatibility
Data formatting features enhance data management
Continuous and flash scanning modes for flexible operation
Specifications:
Electrical:
Power Requirements: 5.0 VDC ± 5%
Interfaces: PS/2, RS232, USB Keyboard
Light Source: 660 nm visible red LED
Sensor: 2500 pixel CCD
Environmental:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -26°C to 60°C (-14.8°F to 140°F)
Humidity: 10%-80% relative humidity
Drop Test: 3.94 feet (1.2 m)
Mechanical:
Dimensions: 6.10 inches x 3.07 inches x 0.63 inches
Weight: 3.0 oz. (without cable)
Indicator: LED, beep tone
Color: Beige
Field Width: 5.59 inches for 10.5 mil code 39 at 175mm from the lens plate
Resolution: 0.1 mm (4 mils)
PCS: 45% or more
Scan Rate: 200 scans per second
Range: 0 inches (0 cm) to 4 inches (10.15 cm)
Symbologies:
Code 39, Full ASCII Code 39, Code 32, Code 128
Code 93, Code 11, Codabar/NW7
All UPC/EAN/JAN Codes (EAN-13, EAN-8, UPC-A, EPC-E, EAN-128)
Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5
Matrix 2 of 5, Chinese Postage Code, MSI/PLESSY
Italian Pharmacy Code (RSS, GS1 available 2010)
Approvals: FCC Part 15 Class B, CE EMC Class B
ID Tech IDBA-4244SRB Barcode Scanner Overview
ID TECH is proud to introduce the EconoScan II, our next generation short range CCD scanner that is specially designed to deliver high-end performance at the lowest possible price. The scanner utilizes exceptional decoding technology, making it the best in its class in terms of performance and value. The EconoScan II enables quick contact scanning of bar codes up to 4 inches in length. With an impressive scan rate of 200 scans per second, low quality or damaged bar codes as well as small or high-density bar codes can be read with exceptional speed and accuracy. This ergonomic hand-held scanner is ideal to be used in a wide variety of markets, including retail, logistics and light industry applications.
The ID Tech IDBA-4244SRB Barcode Scanner is also known as
IDT-IDBA-4244SRB
or IDBA4244SRB.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
