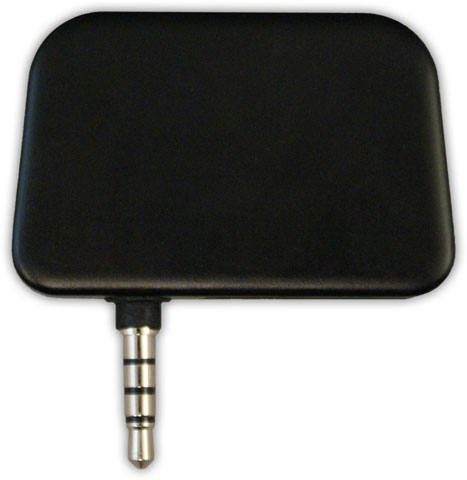

ID Tech UniMag II Credit Card Reader Model Overview
The ID TECH UniMag™ II is a state-of-the-art mobile credit card reader designed for seamless transactions wherever you go. Connecting effortlessly via the audio headphone jack of your mobile device, it supports the reading of various magnetic stripe cards, including credit, debit, gift, and loyalty cards. Utilizing advanced encryption technology, the UniMag II ensures that all card data is securely encrypted before entering your device, making it an essential tool for merchants aiming to boost customer convenience and minimize transaction costs by avoiding expensive card-not-present fees. Key Features:
Plugs into audio headphone jack - No cables or batteries required.
Supports TDES and AES encryption using DUKPT Key Management for enhanced data security.
Reads up to two tracks of card data with superior performance.
Bi-directional card reading for added flexibility.
Low battery consumption of mobile devices.
Universal clip for stabilization while reading.
Compatible SDKs available for Apple, Android, and Blackberry platforms.
Specifications:
Interfaces: Audio headphone jack
Environmental:
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: Maximum 95% non-condensing, dry storage
Reliability:
Operating Life: 100,000 cycles minimum
Warranty: One year, parts and labor
Mechanical:
Media Thickness: 0.025 inches (0.635mm) to 0.035 inches (0.889mm)
Media Formats: ISO 7811 and AAMVA
Swipe Speed: 5 to 60 inches per second, bi-directional
Dimensions: (L)x(W)x(H) - 1.18 inches (30mm) x 0.43 inches (11mm) x 1.77 inches (45mm)
Weight: 0.512 oz.
ID Tech ID-80110008-001 Credit Card Reader Overview
Card Swiping on your Mobile Device The ID TECH UniMag II is a magnetic stripe reader that communicates with mobile devices via the headphone jack. Use your mobile device to read a variety of magnetic stripes, including credit cards, signature debit cards, gift cards, and loyalty cards.
Superior MagStripe Reading Performance The UniMag II utilizes ID TECH's proven MagStripe reading technology, providing bi-directional card reading of up to two tracks of information. When reading card data the UniMag II encrypts the information before it enters the mobile device, providing protection of sensitive data.
Full specifications (PDF)
