IDP 651404 ID Card Printer
Full specifications (PDF)

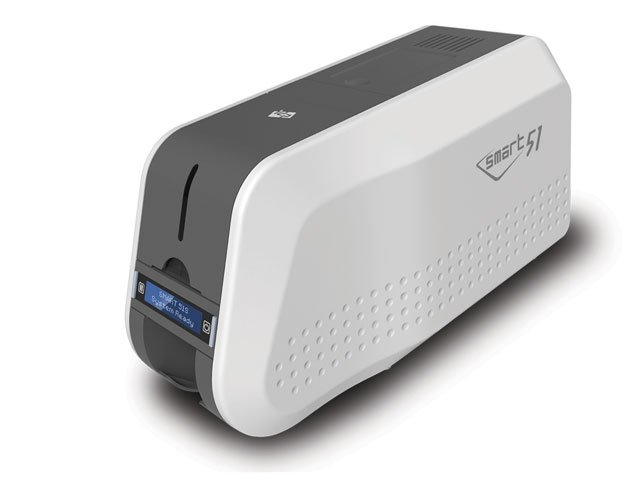

IDP Smart-51S ID Card Printer Model Overview
The SMART-51S Single Sided ID Card Printer is the perfect solution for small to mid-sized businesses seeking reliable, high-quality ID card printing. With its innovative FINE™ Imaging Technology, this printer delivers vibrant colors and crisp monochrome prints at a maximum speed of 17 seconds per card. User-friendly and designed for seamless operation, the SMART-51S offers optional features such as Ethernet connectivity and encoding capabilities, ensuring your printing needs are met both efficiently and affordably. Enjoy peace of mind with a 3-year warranty that guarantees performance and reliability.
Key Features
- Fast Printing Speed: Up to 17 seconds per card (YMCKO)
- High Resolution: 300dpi with edge-to-edge printing
- Flexible Options: Upgradeable modules for dual-sided printing and laminating
- Cost-Effective: Lowest cost per print in its class
- Security: Advanced measures including password verification and data encryption
- User-Friendly: Easy-to-use 2-line LCD display with front operation controls
Specifications
- Printing:
- Print Type: Dye-Sublimation
- Print Area: Edge to Edge
- Resolution: 300dpi
- Print Speed: 5 sec/card (monochrome), 17 sec/card (color)
- Card Specifications:
- Card Size: ISO CR80 or ISO CR79 (optional)
- Card Thickness: 0.38mm (15mil), 1.0mm (40mil)
- Card Type: PVC, PET, Composite PVC
- Capacity:
- Input Hopper: 100/200 cards
- Output Hopper: 40 cards front, 100 cards rear
- Connectivity:
- Supported Platforms: Windows, Mac OS, Linux
- Communication: USB, Ethernet (optional)
- Power:
- Power Supply: AC100/220V, 50~60Hz
- Power Consumption: 48W
- Dimensions:
- Size: 165 x 390 x 210 mm (6.5 x 15.4 x 8.3 inches)
- Weight: 4.5 kg (10 lbs)
Recommended Accessories
Category
- ID Card Laminate and Film (1)
- ID Card Printer Accessories (15)
- ID Card Printer Cleaner (1)
Recommended Accessories for Model: IDP 651404 ID Card Printer
Top ID Card Laminate and Film Purchased With IDP 651404
-
IDP 659390 Laminate and FilmClear patch type laminate film, 1mil (25mic), standard, 250 cards/rollShips from vendor — chat for lead time$89.99
Top ID Card Printer Accessories Purchased With IDP 651404
-
$168.79 -
IDP 651356 AccessorySMART-51 Magnetic Stripe Enc. Standard (ISO 7811 (Track, Read/Write), Hi-Co / Lo-Co Enc.)Ships from vendor — chat for lead time$511.36 -
IDP 651358 AccessorySMART-51 Magnetic Stripe Enc. Upper (ISO 7811 (Track, Read/Write), Hi-Co / Lo-Co Enc.)Ships from vendor — chat for lead time$395.61
Top ID Card Printer Cleaner Purchased With IDP 651404
-
IDP 659909 ID Printer CleanerIDP Long Sleeve cleaning card kit for automatic cleaning (10 pcs)-Compatible with Smart 51 or SMART-70 Series printersItem on backorder — chat for lead time$45.99
Frequently Asked Questions
What printing speed can I expect from the IDP Smart-51S printer?
The IDP Smart-51S delivers up to 212 full-color ID cards per hour, making it an excellent choice for small- to mid-size card issuance programs. This next-generation speed represents a significant upgrade over previous models, allowing your organization to produce credentials quickly and efficiently.
Does the Smart-51S support encoding options like magnetic stripe or smart card encoding?
Yes, the Smart-51S can be upgraded with optional encoding capabilities including magnetic stripe, contact (ISO 7816-compliant), and contactless encoding options such as MIFARE, DESFIRE, and iClass. These optional modules allow you to customize the printer to meet your specific card issuance security requirements.
What connectivity options are available on the IDP Smart-51S?
The Smart-51S features both USB and Ethernet connectivity, giving you flexible deployment options whether you're connecting to a single workstation or integrating into a networked environment. Standard USB connectivity also ensures quick setup and portability for desktop operations.
Can the Smart-51S be upgraded to print on both sides of ID cards?
Yes, the Smart-51S is field-upgradeable with the optional Smart-51 Flipper unit for dual-sided printing capabilities. This allows you to maximize the usable space on your ID cards without replacing your entire printer system.
What security features does the Smart-51S include to protect my card issuance program?
The Smart-51S includes built-in password protection with both administrator and user authentication levels to ensure secure access to your printing operations. Additionally, the printer features computer authentication capabilities that allow you to lock the device to a single PC, rendering it unusable if stolen.
Is lamination available for the IDP Smart-51S to increase card durability?
Yes, we offer an optional Smart-51 Lamination Module that can enhance both security and durability of your ID cards. Lamination protects cards from physical wear and tear while also deterring tampering and forgery, and supports both laminate patches and holographic film applications.
