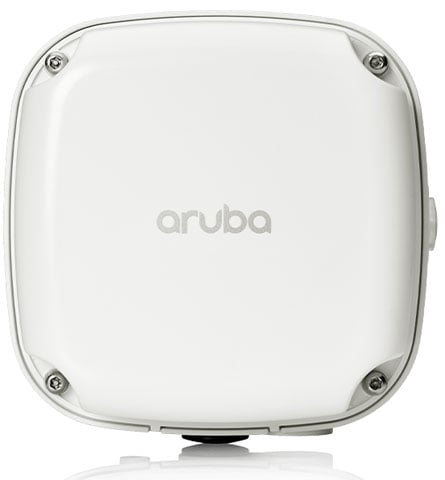

HPE Aruba 560 Series Wireless Access Points Model Overview
Ideal for campuses, venues and industrial sites, the 560 Series AP offers enterprise-class Wi-Fi 6 in a rugged outdoor form factor. Two 2×2:2 radios deliver up to 1.49 Gbps aggregate throughput with OFDMA and MU-MIMO for efficient multi-user access. Its IP55-rated enclosure resists dust, moisture and extreme temperatures, while integrated Bluetooth 5 and Zigbee radios support IoT deployments. Automated provisioning and centralized management reduce operational complexity, and policy enforcement firewalls keep guest and operational traffic secure.
Key Features
1.49 Gbps aggregate Wi-Fi 6 performance
OFDMA and MU-MIMO for optimized capacity
IP55-rated, –40 °C to +65 °C; weather and wind resistant
Bluetooth 5 & Zigbee for seamless IoT integration
Zero-touch provisioning and cloud management
Dynamic segmentation and built-in firewall
Specifications
5 GHz HE80: 1.2 Gbps; 2.4 GHz HE40: 574 Mbps
Model options: internal omni or integrated directional antenna
1×1 GbE RJ-45 port for uplink
Power options: 802.3af/at PoE or 12 V DC
Power consumption: 15.6 W max; 4.2 W idle
Size: 110 × 165 × 165 mm; Weight: 1.09 kg
HPE Aruba R4W44A Wireless Access Points Overview
Aruba 560 Series Outdoor Access Points
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection.
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With maximum aggregate on air data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for most environments.
The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
What Wi-Fi 6 performance can I expect from the HPE Aruba 560 Series AP?
The HPE Aruba 560 Series delivers up to 1.49 Gbps aggregate throughput across its dual 2×2:2 radios, with 1.2 Gbps on the 5 GHz HE80 band and 574 Mbps on the 2.4 GHz HE40 band. OFDMA and MU-MIMO technologies optimize capacity for efficient multi-user access, making it ideal for high-density deployments in campuses, venues, and industrial sites. We offer this access point with flexible antenna configurations to match your deployment requirements.
Is the HPE Aruba 560 Series suitable for outdoor and harsh environments?
Yes, the 560 Series is purpose-built for outdoor deployment with an IP55-rated enclosure that resists dust and moisture while operating reliably in extreme temperatures from –40 °C to +65 °C. Its weather and wind-resistant design makes it an excellent choice for industrial sites, outdoor venues, and campus perimeters where standard indoor access points would fail. Contact us today to discuss your specific environmental requirements.
What IoT connectivity options does this access point provide?
The HPE Aruba 560 Series integrates Bluetooth 5 and Zigbee radios alongside Wi-Fi 6, enabling seamless IoT device connectivity without requiring separate hardware. This multi-protocol support simplifies deployments for organizations managing sensors, beacons, and other IoT endpoints across their wireless infrastructure. Visit barcodesinc.com to explore our complete IoT-enabled networking solutions.
How is the 560 Series provisioned and managed?
The access point features zero-touch provisioning that dramatically reduces deployment time and operational complexity, with centralized cloud-based management for simplified administration across multiple sites. Dynamic segmentation and built-in firewall capabilities enforce security policies to keep guest and operational traffic isolated and protected. Our team can help you integrate this AP into your existing management infrastructure.
What power options and consumption levels should I plan for?
The HPE Aruba 560 Series supports both 802.3af/at PoE and 12 V DC power inputs, providing flexibility for various deployment scenarios. Power consumption is minimal at 15.6 W maximum and just 4.2 W during idle operation, making it energy-efficient for large-scale outdoor deployments. Available from us with complete power supply compatibility guidance for your infrastructure.
What antenna options are available for the 560 Series?
The access point is offered with two antenna configurations: internal omnidirectional antennas for 360-degree coverage and integrated directional antennas for focused coverage areas. This flexibility allows you to optimize RF performance based on your specific site topology and coverage objectives. Contact us today to determine which antenna configuration best suits your deployment needs.
The HPE Aruba R4W44A Wireless Access Points is also known as
HPE-R4W44A
