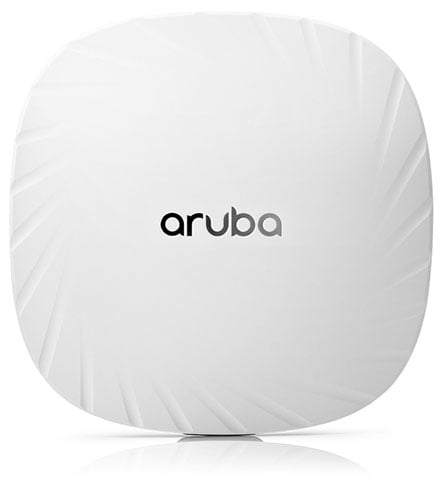

HPE Aruba 500 Series Indoor Wireless Access Points Model Overview
Designed for cost-sensitive deployments that demand enterprise-class features, this campus AP supports dual 2×2:2 radios on 5 GHz and 2.4 GHz bands to deliver up to 1.77 Gbps total throughput. Its small form factor and versatile ceiling or wall-mount options fit classrooms, branch offices and retail stores. Built-in OFDMA and MU-MIMO reduce airtime contention for dozens of connected devices, while automated RF tools—ClientMatch and AirMatch—optimize performance and roaming without manual tuning. The two Smart Rate 1 GbE ports provide PoE in or out for network or downstream devices, and the USB 2.0 host port supports local edge services. Security is enforced with WPA3, Enhanced Open and MACsec.
Key Features
802.11ax dual-radio with 2×2:2 MIMO
Up to 1.77 Gbps aggregate throughput
2×1 GbE Smart Rate (PoE-PD/PSE) ports
USB 2.0 host for on-premise analytics or security
OFDMA for optimized spectrum use
MU-MIMO for simultaneous multi-client support
WPA3, Enhanced Open and MACsec security
Specifications
5 GHz: HE80 SU-MIMO up to 1.2 Gbps; HE40 MU-MIMO 2×2 up to 574 Mbps
The Aruba 500 series access points, with Wi-Fi 6 (802.11ax) technology and Aruba's intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500 Series also provides differentiated capabilities that include AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
Additionally, Green AP energy savings are available when Aruba's AI/ML capabilities are enabled.
Incredible efficiency
Air Slice, available only on Aruba Wi-Fi 6 APs, works with the Policy Enforcement Firewall to enhance OFDMA capabilities with application QoS assurance.
Unsurpassed client experiences
Aruba's ClientMatch, part of Aruba's AI-powered mobility solution, intelligently groups Wi-Fi 6 and MU-MIMO capable clients on the best-performing APs to optimize performance and roaming.
IoT platform capabilities
Aruba Wi-Fi 6 and Wi-Fi 5 APs include support for Zigbee and Bluetooth to simplify the deployment and management of IoT services.
What is the maximum throughput of the HPE Aruba R2H29A access point?
The HPE Aruba R2H29A delivers up to 1.77 Gbps aggregate throughput across its dual 2×2:2 MIMO radios. On the 5 GHz band, it achieves up to 1.2 Gbps in HE80 SU-MIMO mode, while the 2.4 GHz band supports up to 574 Mbps in HE40 SU-MIMO mode. This performance makes it suitable for classrooms, branch offices, and retail environments where multiple devices require simultaneous connectivity.
Can the HPE Aruba R2H29A be powered over Ethernet, and does it support PoE out?
Yes, the R2H29A supports both PoE-PD (Power over Ethernet in) and PoE-PSE (Power over Ethernet out) through its two Smart Rate 1 GbE ports. It can be powered via 802.3af/at PoE with a maximum consumption of 15.4 W, or via 12 V DC with a maximum of 12 W, providing flexibility for network deployments and the ability to power downstream devices.
What security features does the HPE Aruba R2H29A provide?
The R2H29A enforces security through WPA3, Enhanced Open, and MACsec protocols. These enterprise-class security features protect wireless communications and device authentication, making it suitable for cost-sensitive deployments that still require robust security standards. Contact us today to discuss security requirements for your specific deployment.
How many devices can the HPE Aruba R2H29A support simultaneously?
The R2H29A supports up to 256 associated client devices per radio, with support for 16 BSSIDs on each radio. Built-in OFDMA and MU-MIMO technologies reduce airtime contention and enable simultaneous multi-client support, allowing dozens of connected devices to operate efficiently without manual RF tuning.
What mounting options and physical specifications does the R2H29A offer?
The R2H29A features a compact form factor measuring 160 × 161 × 37 mm and weighing just 500 g, with versatile ceiling or wall-mount options. Its small size and flexible deployment options make it ideal for fitting into classrooms, branch offices, retail stores, and other space-constrained environments where enterprise-class wireless coverage is needed.
Does the HPE Aruba R2H29A include USB connectivity for edge services?
Yes, the R2H29A includes a USB 2.0 host port that supports local edge services, on-premise analytics, and security applications. This additional connectivity option enables organizations to extend functionality for specific use cases without requiring external hardware. Visit barcodesinc.com to explore the full specifications and availability of this access point.
The HPE Aruba R2H29A Wireless Access Points is also known as
HPE-R2H29A
