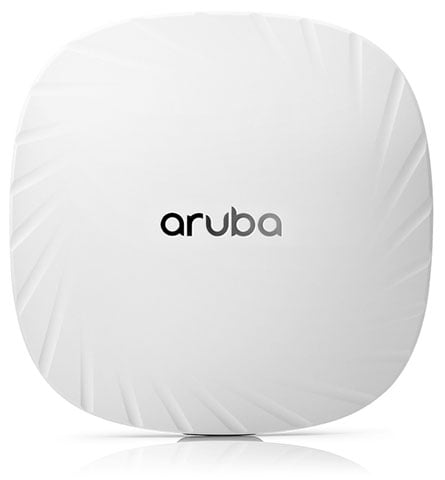

HPE Aruba 500 Series Indoor Wireless Access Points Model Overview
Designed for cost-sensitive deployments that demand enterprise-class features, this campus AP supports dual 2×2:2 radios on 5 GHz and 2.4 GHz bands to deliver up to 1.77 Gbps total throughput. Its small form factor and versatile ceiling or wall-mount options fit classrooms, branch offices and retail stores. Built-in OFDMA and MU-MIMO reduce airtime contention for dozens of connected devices, while automated RF tools—ClientMatch and AirMatch—optimize performance and roaming without manual tuning. The two Smart Rate 1 GbE ports provide PoE in or out for network or downstream devices, and the USB 2.0 host port supports local edge services. Security is enforced with WPA3, Enhanced Open and MACsec.
Key Features
802.11ax dual-radio with 2×2:2 MIMO
Up to 1.77 Gbps aggregate throughput
2×1 GbE Smart Rate (PoE-PD/PSE) ports
USB 2.0 host for on-premise analytics or security
OFDMA for optimized spectrum use
MU-MIMO for simultaneous multi-client support
WPA3, Enhanced Open and MACsec security
Specifications
5 GHz: HE80 SU-MIMO up to 1.2 Gbps; HE40 MU-MIMO 2×2 up to 574 Mbps
The Aruba 500 series access points, with Wi-Fi 6 (802.11ax) technology and Aruba's intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500 Series also provides differentiated capabilities that include AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
Additionally, Green AP energy savings are available when Aruba's AI/ML capabilities are enabled.
Incredible efficiency
Air Slice, available only on Aruba Wi-Fi 6 APs, works with the Policy Enforcement Firewall to enhance OFDMA capabilities with application QoS assurance.
Unsurpassed client experiences
Aruba's ClientMatch, part of Aruba's AI-powered mobility solution, intelligently groups Wi-Fi 6 and MU-MIMO capable clients on the best-performing APs to optimize performance and roaming.
IoT platform capabilities
Aruba Wi-Fi 6 and Wi-Fi 5 APs include support for Zigbee and Bluetooth to simplify the deployment and management of IoT services.
What is the maximum throughput of the HPE Aruba R2H23A wireless access point?
The HPE Aruba R2H23A delivers up to 1.77 Gbps aggregate throughput across its dual 2×2:2 MIMO radios. The 5 GHz radio supports up to 1.2 Gbps in HE80 SU-MIMO mode, while the 2.4 GHz radio provides up to 574 Mbps in HE40 SU-MIMO mode. This performance makes it suitable for classrooms, branch offices, and retail environments requiring enterprise-class connectivity.
Does the HPE Aruba R2H23A support Power over Ethernet (PoE)?
Yes, the R2H23A features two Smart Rate 1 GbE ports that support both PoE Power Delivery (PoE-PD) and Power Sourcing Equipment (PSE) capabilities. The access point can be powered via 802.3af/at PoE or 12V DC, with maximum power consumption of 12W DC or 15.4W PoE, making it flexible for various network deployments.
What security features does the HPE Aruba R2H23A include?
The R2H23A enforces security through WPA3, Enhanced Open, and MACsec protocols. These enterprise-grade security standards protect your wireless network from unauthorized access and ensure secure communication across connected devices. Contact us today to discuss security requirements for your deployment.
How many devices can connect to the HPE Aruba R2H23A at once?
The R2H23A supports up to 256 associated client devices per radio, with support for 16 BSSIDs on each radio. Built-in OFDMA and MU-MIMO technologies reduce airtime contention and enable simultaneous multi-client support, making it ideal for high-density environments like classrooms and retail stores.
What automated RF optimization tools are included with the HPE Aruba R2H23A?
The R2H23A includes ClientMatch and AirMatch automated RF tools that optimize performance and roaming without requiring manual tuning. These intelligent features dynamically adjust to your network environment, reducing configuration complexity while maintaining optimal coverage and client experience. Visit barcodesinc.com to learn more about this access point's capabilities.
Is the HPE Aruba R2H23A suitable for outdoor or high-moisture environments?
The R2H23A is designed for indoor deployment with an operating temperature range of 0°C to 50°C and humidity tolerance of 5% to 93% non-condensing. Its compact form factor (160 × 161 × 37 mm) and versatile ceiling or wall-mount options make it ideal for classrooms and branch offices, though it is not rated for outdoor or high-moisture industrial environments.
The HPE Aruba R2H23A Wireless Access Points is also known as
HPE-R2H23A
