HP Parts Accessory Model Overview
Products and parts from HP.

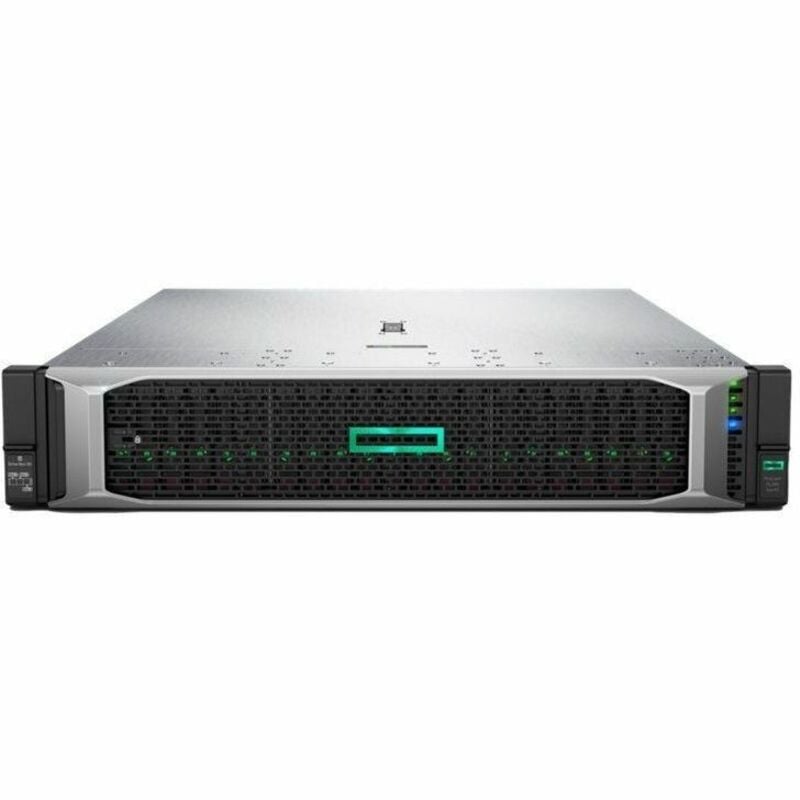

HP P63680-B21 Server Overview
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.
Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Gold
Processor Generation:
2nd Gen
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.30 GHz
Chipset
Chipset Manufacturer:
Intel
Memory
Maximum Memory Supported:
1.54 TB
Memory Technology:
DDR4 SDRAM
Number of Occupied Memory Slots:
6
Intel Optane Memory Ready:
Yes
Signal Processing:
Registered (Buffered)
Storage
Number of Solid State Drives:
2
Total Solid State Drive Capacity:
960 GB
Solid State Drive Interface:
Serial ATA/600
Solid State Drive Configuration:
2 x 480GB
Controllers
Controller Model:
Smart Array P408i-a SR
I/O Expansions
Number of Total Expansion Bays:
9
Number of External 5.25" Bays:
1
Number of Internal 2.5" Bays:
8
Total Number of Expansion Slots:
3
PCI Express x8 (Gen 3.x) Slots:
2
PCI Express x16 (Gen 3.x) Slots:
1
PCI Express Details:
3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
5
Number of Network (RJ-45) Ports:
2
Remote Management Controller:
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)
Operating System
Operating System Supported:
Windows Server Red Hat Enterprise Linux SuSE Linux Enterprise Server Citrix XenServer
Power Description
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
2
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Redundant Power Supply:
Yes
Hot Swappable Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Weight (Approximate):
42.99 lb
Miscellaneous
Package Contents:
ProLiant DL380 Gen10 5218 2.3GHz 16-core 1P 192GB-R P408i-a 8SFF 800W PS Server SFF Easy Install Rails Kit with Cable Management Arm
Security Features:
UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 3.0
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Additional Warranty Information:
3-year parts, 3-year labor, 3-year onsite support with next business day response.
Item Numbers
GTIN:
0190017669120
UPC:
190017669120
EAN:
0190017669120
UNSPSC:
43211501
