HP P58691-B21 Servers

Part Number: P58691-B21
Model: Parts
Add to My Shopping List Add to Compare
$16,841.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Type
EPYC
Processor Generation
4th Gen

Product Description:

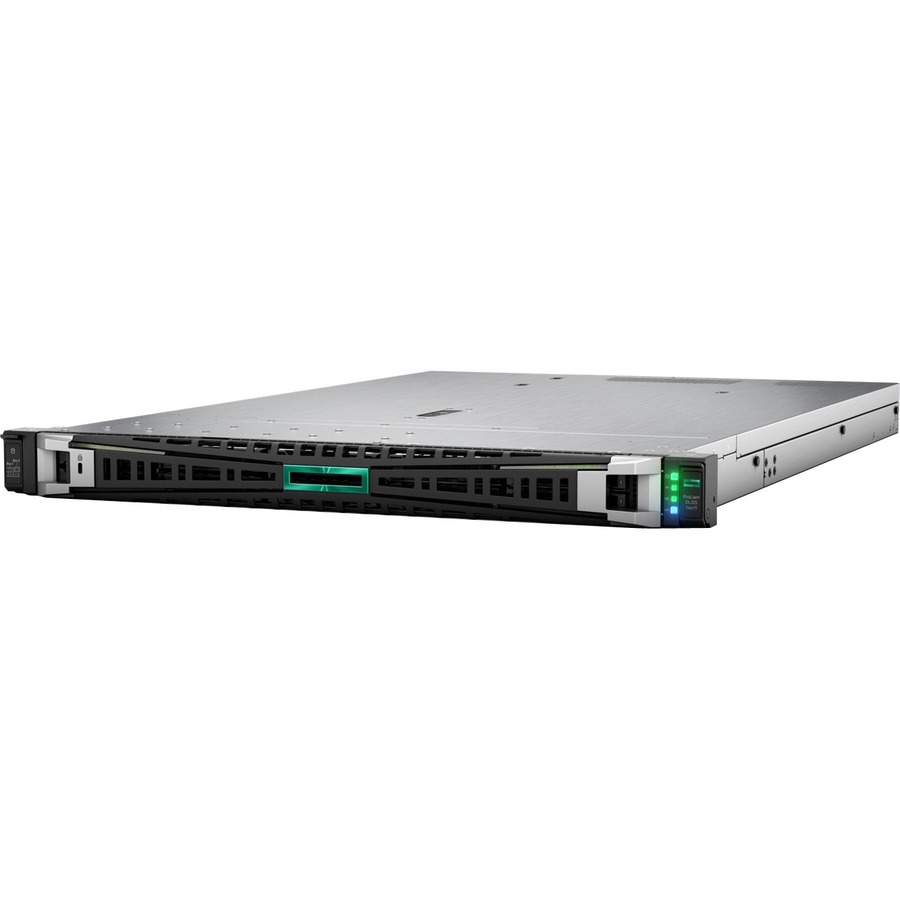

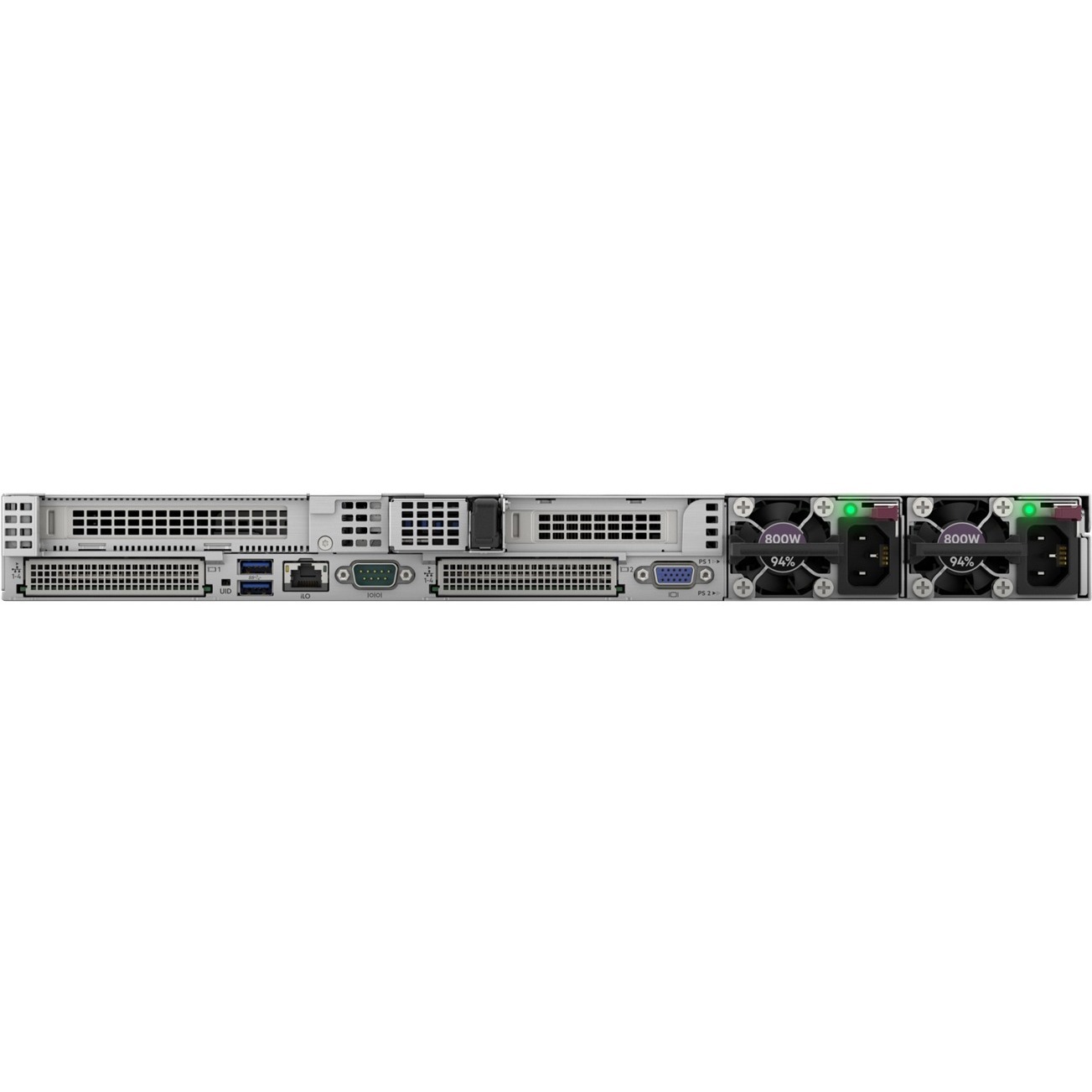

  Servers, HP ProLiant DL325 G11, 1U Rack Server, 1 x AMD EPYC 9354P 2.85 GHz, 32 GB RAM, 12GBps SAS Controller, AMD Chip, 1 Processor Support, 3 TB RAM Support, Up to 16 MB Graphic Card, 10 Gigabit Ethernet, 8 x SFF Bay(s), Hot Swappable Bays, 1 x 800 W
Explore all HP Parts Accessories
Add to Quote
HP P58691-B21 Servers
HP P58691-B21 Servers
HP P58691-B21 Servers HP P58691-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P58691-B21 Servers Overview
HPE ProLiant DL325 Gen11

Are you looking for a scalable, low-cost performance server solution for your virtualized and software-defined compute workloads? The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to 2 GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Type:
EPYC
Processor Generation:
4th Gen
Processor Model:
9354P
Processor Core:
Dotriaconta-core (32 Core)
Processor Speed:
2.85 GHz
Cache:
256 MB
Chipset
Chipset Manufacturer:
AMD
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
3 TB
Memory Technology:
DDR5 SDRAM
Memory Clock Speed:
4.80 GHz
Error Checking:
ECC
Total Number of Memory Slots:
12
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Storage
Total Hard Drive Capacity:
No
Optical Drive Type:
No
Controllers
Controller Type:
12Gb/s SAS
Controller Model:
MR408i-o
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
1
PCI Express x16 (Gen 3.x) Slots:
1
PCI Express Details:
1 PCIe 5.0 x16 Full-height, Full-length slot
Riser Card:
1 PCIe x16 Primary Riser
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)
Operating System
Operating System Supported:
  • Windows Server 2019
  • Windows Server 2022
  • Red Hat Enterprise Linux 8.6
  • Red Hat Enterprise Linux 9.0
  • SUSE Linux Enterprise Server 15 SP4
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
1.7"
Width:
17.1"
Depth:
25.6"
Weight (Approximate):
34.26 lb
Miscellaneous
Package Contents:
  • ProLiant DL325 G11 Server
  • Standard 6-foot IEC C-13/C-14 Jumper Cord
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-3 validation (iLO 6 certification in progress)
  • Common Criteria certification (iLO 6 certification in progress)
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Tamper-free updates - components digitally signed and verified
  • Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • Secure erase of NAND/User data
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 3.0
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3-year parts, 3-year labor, 3-year onsite support with next business day response.
Item Numbers
UNSPSC: 43211501

Frequently Asked Questions

The HP P58691-B21 features a single AMD EPYC 9354P processor running at 2.85 GHz. This server supports up to 1 processor and is designed for single-socket deployment in demanding warehouse and logistics environments.

The HP P58691-B21 comes standard with 32 GB of RAM and supports up to 3 TB of total memory capacity. This substantial memory support makes it suitable for data-intensive operations common in large-scale warehouse management systems.

The HP ProLiant DL325 G11 includes 8 small form factor (SFF) hot-swappable drive bays, allowing for flexible storage expansion without downtime. The hot-swappable design is ideal for mission-critical logistics operations that require continuous uptime.

This server is equipped with 10 Gigabit Ethernet connectivity, enabling high-speed data transfer for warehouse management and inventory tracking systems. The 10 Gigabit network interface supports modern data center and enterprise networking requirements.

The HP P58691-B21 is a 1U rack server with a single 800 W power supply, making it ideal for space-constrained data center environments. The compact 1U form factor allows for dense server deployment in warehouse and logistics facilities.

Yes, we offer the HP ProLiant DL325 G11 server as part of our comprehensive AIDC and IT infrastructure solutions. Contact us today to discuss server configurations, pricing, and delivery options for your warehouse or logistics operation.
