HP P57688-B21 Servers

Part Number: P57688-B21
Model: Parts
Add to My Shopping List Add to Compare
$14,208.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Installed
1
Processor Type
Xeon Gold
Processor Generation
4th Gen
Processor Model
5416S

Product Description:

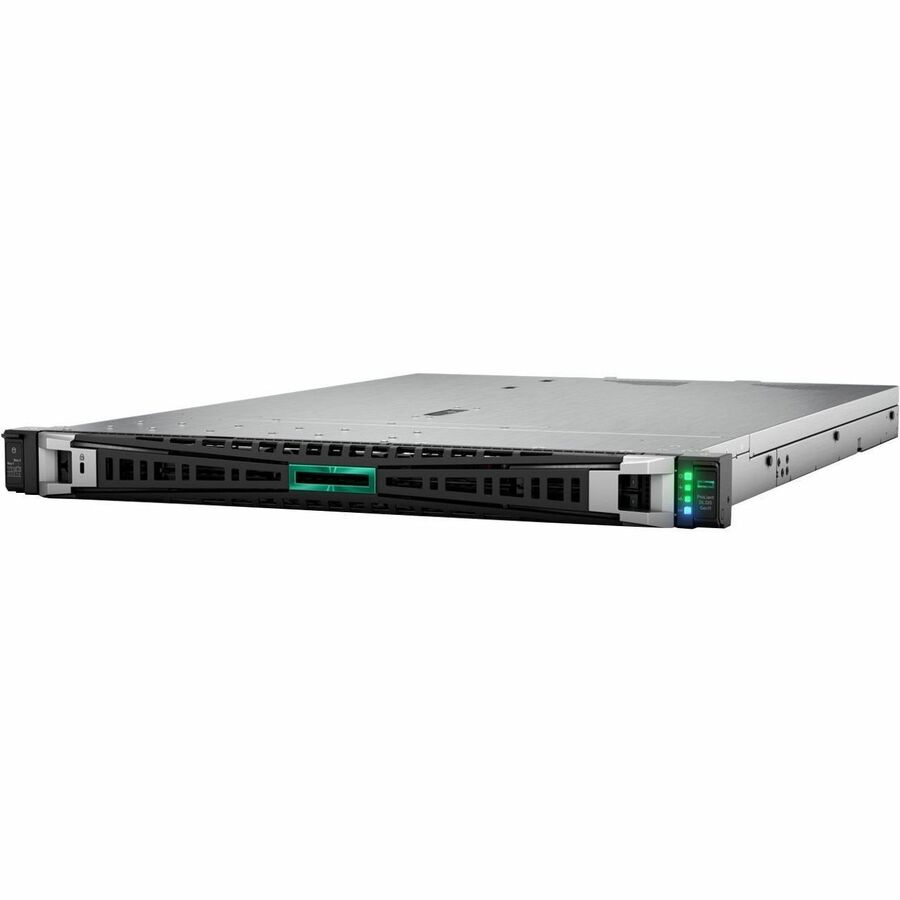

  Servers, HP ProLiant DL320 G11, 1U Rack Server, 1 x Intel Xeon Gold 5416S 2 GHz, 32 GB RAM, Intel C741 Chip, 2.04 TB RAM Support, Up to 16 MB Graphic Card, Gigabit Ethernet, 8 x SFF Bay(s), 1 x 500 W
Explore all HP Parts Accessories
Add to Quote
HP P57688-B21 Servers
HP P57688-B21 Servers
HP P57688-B21 Servers HP P57688-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P57688-B21 Servers Overview

HPE ProLiant DL320 Gen11

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable to diverse workloads and environments, the compact 1U 1P HPE ProLiant DL320 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL320 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL320 Gen11 supports the 4th Generation Intel® Xeon® Scalable Processors with up to 32 cores, plus 4800 MT/s HPE DDR5 Smart Memory up to 2.0 TB. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the single socket segment, the HPE ProLiant DL320 Gen11 delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at 1P economics. DL320 Gen11 is an excellent choice for daily business and workloads in Data Management, Virtualization, Content Delivery Network (CDN), Intelligent Video Analytics (IVA), General Compute, Data Collection, Software Defined Storage, Software Defined Compute, Cold Storage, Compute Storage, Edge AI, and Virtual Desktop Infrastructure (VDI).

Processor
Number of Processors Installed:
1
Processor Type:
Xeon Gold
Processor Generation:
4th Gen
Processor Model:
5416S
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2 GHz
Cache:
30 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C741
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
2.04 TB
Memory Technology:
DDR5 SDRAM
Memory Clock Speed:
4.80 GHz
Error Checking:
ECC
Total Number of Memory Slots:
16
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Controllers
Controller Model:
MR408i-o
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Total Number of Expansion Slots:
2
PCI Express Details:
2 x16 FHHL PCIe Gen5
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
4
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO6
Operating System
Operating System Supported:
  • Windows Server
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Ubuntu
  • Oracle Linux
  • Citrix XenServer
  • CentOS
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
500 W
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
1.7"
Width:
17.1"
Depth:
23.8"
Weight (Approximate):
36.84 lb
Miscellaneous
Package Contents:
  • ProLiant DL320 Gen11 5416S 2.0GHz 16-core 1P 32GB-R MR408i-o 8SFF 500W PS Server
  • Rail Kit
  • 6-foot IEC C-13/C-14 Jumper Cord
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Tamper-free updates - components digitally signed and verified
  • Immutable Silicon Root of Trust
  • Ability to rollback firmware
  • FIPS 140-2 validation
  • Secure erase of NAND/User data
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China.
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Bezel Locking Kit option
  • Support for Commercial National Security Algorithms (CNSA)
  • Chassis Intrusion detection option
  • Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Item Numbers
GTIN: 0190017619293
UPC: 190017619293
EAN: 0190017619293
UNSPSC: 43211501

Frequently Asked Questions

The HP P57688-B21 is equipped with 1 x Intel Xeon Gold 5416S processor running at 2 GHz. This single-socket configuration delivers enterprise-class performance suitable for a variety of server workloads in data center environments.

The HP P57688-B21 supports up to 2.04 TB of RAM and comes standard with 32 GB of RAM installed. This substantial memory capacity enables efficient handling of demanding applications and large datasets in enterprise environments.

The HP P57688-B21 is a 1U rack server featuring 8 x SFF (Small Form Factor) drive bays for internal storage expansion. The 1U form factor makes it ideal for high-density rack deployments in warehouse and logistics operations.

The HP P57688-B21 includes Gigabit Ethernet connectivity for reliable network communication. This enables seamless integration into existing IT infrastructure for warehouse management systems and logistics applications.

The HP P57688-B21 is equipped with a 500 W power supply, providing sufficient power for the processor, memory, and storage components in a single-socket 1U server configuration.

Yes, the HP P57688-B21 is designed as an enterprise 1U rack server with Intel Xeon Gold processor, substantial memory support, and the Intel C741 chipset. We offer this server for organizations requiring reliable, scalable infrastructure for warehouse management and logistics operations—contact us today to discuss your specific deployment needs.
