HP P57685-B21 Servers

Part Number: P57685-B21
Model: Parts
Add to My Shopping List Add to Compare
$7,347.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Type
Xeon Bronze
Processor Generation
4th Gen

Product Description:

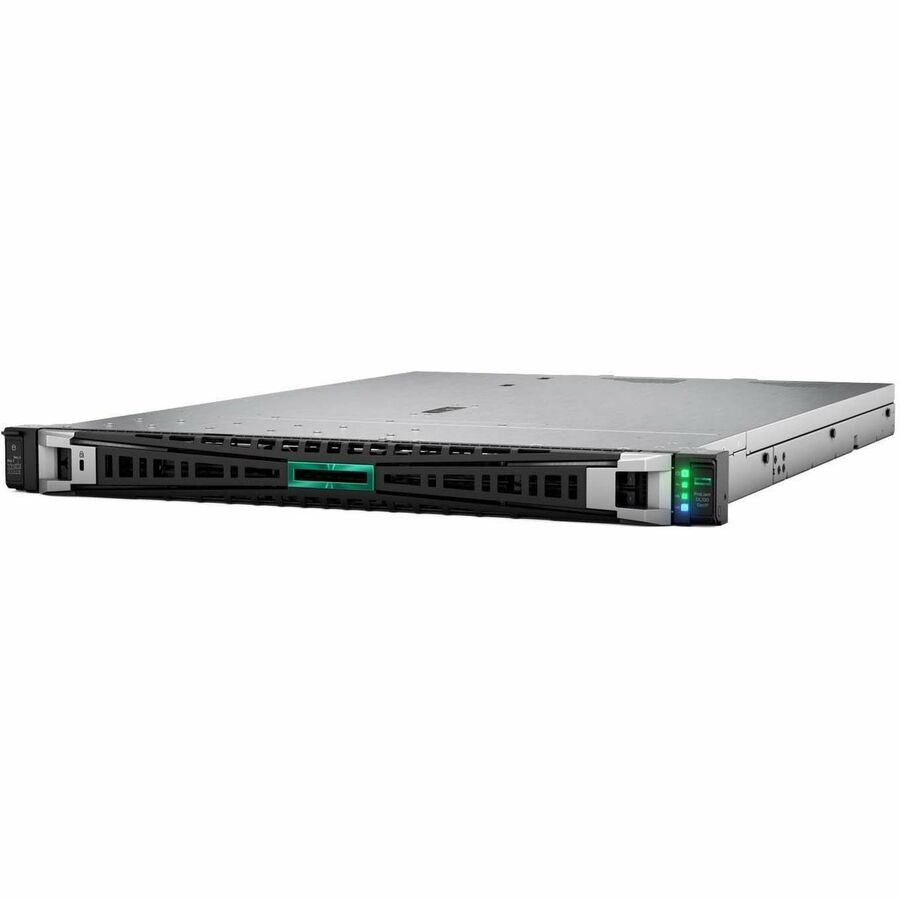

  Servers, HP ProLiant DL320 G11, 1U Server, 1 x Intel Xeon Bronze 3408U 1.80 GHz, 16 GB RAM, Serial ATA Controller, Intel C741 Chip, 1 Processor Support, 2.04 TB RAM Support, Up to 16 MB Graphic Card, Gigabit Ethernet, 4 x LFF Bay(s), 1 x 500 W, Redundant Power Supply
Explore all HP Parts Accessories
Add to Quote
HP P57685-B21 Servers
HP P57685-B21 Servers
HP P57685-B21 Servers HP P57685-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Type:
Xeon Bronze
Processor Generation:
4th Gen
Processor Model:
3408U
Processor Core:
Octa-core (8 Core)
Processor Speed:
1.80 GHz
Cache:
22.50 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C741
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
2.04 TB
Memory Technology:
DDR5 SDRAM
Memory Clock Speed:
4.80 GHz
Error Checking:
ECC
Total Number of Memory Slots:
16
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Controllers
Controller Type:
Serial ATA
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
4
Number of 3.5" Bays:
4
Number of LFF Bays:
4
Total Number of Expansion Slots:
3
PCI Express Details:
2 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
4
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO6
DisplayPort:
Yes
Number of DisplayPorts:
1
Operating System
Operating System Supported:
  • Windows Server
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Citrix XenServer
  • Oracle Linux
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C14
Maximum Power Supply Wattage:
500 W
Redundant Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Rack Height:
1U
Height:
1.7"
Width:
17.1"
Depth:
26.2"
Weight (Approximate):
29.10 lb
Miscellaneous
Package Contents:
  • HPE ProLiant DL320 Gen11 3408U 1.8GHz 8-core 1P 16GB-R 4LFF 500W PS Server
  • Jumper Cord


Security Features:
  • UEFI Secure Boot and Secure Start support
  • Tamper-free updates - components digitally signed and verified
  • Immutable Silicon Root of Trust
  • Ability to rollback firmware
  • FIPS 140-2 validation
  • Secure erase of NAND/User data
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Bezel Locking Kit option
  • Support for Commercial National Security Algorithms (CNSA)
  • Chassis Intrusion detection option
  • Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

3-Year Parts, 3-Year Labor, 3-Year Onsite Support With Next Business Day Response

Item Numbers
GTIN: 0190017619262
UPC: 190017619262
EAN: 0190017619262
UNSPSC: 43211501

Frequently Asked Questions

The HP P57685-B21 features one Intel Xeon Bronze 3408U processor running at 1.80 GHz. This single-socket configuration supports up to 1 processor and is designed for efficient performance in 1U server deployments. Contact us today to verify processor availability and current specifications for your deployment needs.

The HP P57685-B21 supports up to 2.04 TB of RAM capacity with 16 GB included standard. The server uses an Intel C741 chipset to manage memory operations efficiently for enterprise workloads. Visit barcodesinc.com or contact us today for memory upgrade options and compatibility information.

The HP ProLiant DL320 G11 provides 4 x LFF (large form factor) drive bays for internal storage expansion. The exact storage capacity depends on the drives you install, allowing flexibility for SATA-based storage configurations. We offer compatible storage solutions—contact us today to discuss your specific capacity requirements.

Yes, the HP ProLiant DL320 G11 is equipped with a 1 x 500 W redundant power supply for enhanced reliability and uptime. This redundancy ensures your server maintains power during maintenance or component failures. Contact us today for power supply specifications and replacement options.

The server includes Gigabit Ethernet connectivity for network communications and data transfer. The integrated network controller supports standard enterprise networking speeds for warehouse and logistics operations. Visit barcodesinc.com to explore compatible network adapters and connectivity solutions for your infrastructure.

The HP ProLiant DL320 G11 is a compact 1U server designed for space-efficient data center and server room installations, making it suitable for logistics and warehouse infrastructure. Its single-processor architecture, redundant power supply, and Gigabit Ethernet support standard enterprise applications. Contact us today to discuss whether this server meets your specific warehouse management system requirements.
