HP P56964-B21 Servers

Part Number: P56964-B21
Model: Parts
Add to My Shopping List Add to Compare
$19,343.45
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Gold
Processor Generation
2nd Gen

Product Description:

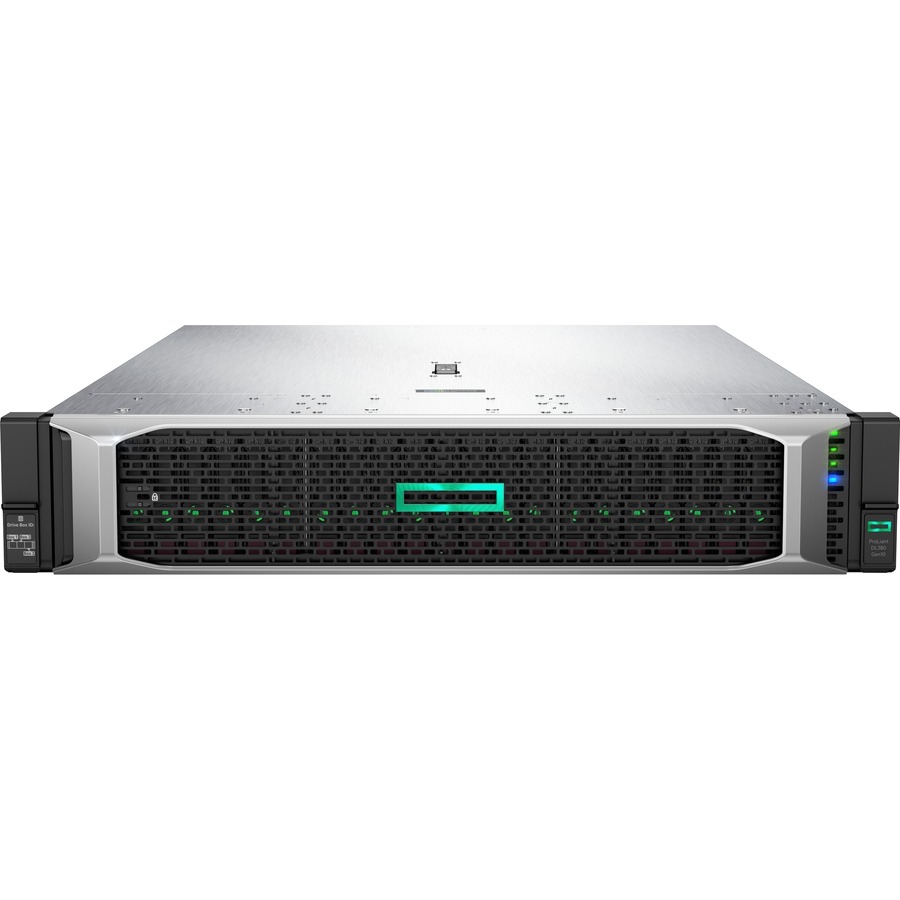

  Servers, HP ProLiant DL380 G10, 2U Rack Server, 1 x Intel Xeon Gold 5218R 2.10 GHz, 32 GB RAM, Serial ATA, 12GBps SAS Controller, Intel C621 Chip, 2 Processor Support, 1.54 TB RAM Support, Up to 16 MB Graphic Card, 10 Gigabit Ethernet, 8 x SFF Bay(s), Hot Swappable Bays, 1 x 800 W
Explore all HP Parts Accessories
Add to Quote
HP P56964-B21 Servers
HP P56964-B21 Servers
HP P56964-B21 Servers HP P56964-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P56964-B21 Servers Overview
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.
Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Gold
Processor Generation:
2nd Gen
Processor Model:
5218R
Processor Core:
Icosa-core (20 Core)
Processor Speed:
2.10 GHz
Cache:
27.50 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C621
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
1.54 TB
Memory Technology:
DDR4 SDRAM
Total Number of Memory Slots:
24
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Storage
Total Hard Drive Capacity:
No
Controllers
Controller Type:
  • Serial ATA
  • 12Gb/s SAS
Controller Model:
MR416ip 4GB and Smart Storage Battery
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
3
PCI Express x8 (Gen 3.x) Slots:
2
PCI Express x16 (Gen 3.x) Slots:
1
PCI Express Details:
3-slots (x8, x16, x8 with dual m.2) as standard
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
5
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
VGA:
Yes
Remote Management:
Yes
Remote Management Controller:
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)
Operating System
Operating System Supported:
  • Windows Server 2022 Essentials
  • Windows Server 2022 Standard
  • Windows Server 2022 Datacenter
  • Windows Server 2019 Essentials
  • Windows Server 2019 Datacenter
  • Windows Server 2016 Standard
  • Windows Server 2016 Datacenter
  • Windows Server 2016 Essential
  • Windows Server 2012 R2 Essentials
  • Windows Server 2012 R2 Standard
  • Windows Server 2012 R2 Datacenter
  • Hyper-V
  • ClearOS 7.6
  • Red Hat Enterprise Linux 7.6
  • SUSE Linux Enterprise Server 12 SP3
  • SuSE Linux Enterprise Server 15
  • Red Hat Enterprise Linux 8
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
2U
Height:
3.4"
Width:
17.5"
Depth:
26.7"
Weight (Approximate):
42.99 lb
Miscellaneous
Package Contents:
  • ProLiant DL380 G10 Server
  • 6-foot IEC C-13/C-14 Jumper Cord
  • SFF Easy Install Rail Kit with Cable Management Arm
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Tamper-free updates - components digitally signed and verified
  • Immutable Silicon Root of Trust
  • Ability to rollback firmware
  • FIPS 140-2 validation
  • Secure erase of NAND/User data
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 3.0
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3-year parts, 3-year labor, 3-year onsite support with next business day response.
Item Numbers
GTIN: 0190017618364
UPC: 190017618364
EAN: 0190017618364
UNSPSC: 43211501

Frequently Asked Questions

This product is discontinued and no longer sold by Barcodes Inc. We provide information on this model for support of existing equipment only. If you need a current-generation HP ProLiant server or alternative solutions, contact us today to discuss available options that meet your infrastructure requirements.

The HP ProLiant DL380 G10 features one Intel Xeon Gold 5218R processor running at 2.10 GHz with support for up to 2 processors. This server supports a maximum of 1.54 TB of RAM across its memory slots, delivering enterprise-class performance for demanding applications.

The DL380 G10 includes 8 small form factor (SFF) hot-swappable drive bays, allowing flexible storage configuration. The server features a 12 Gbps SAS controller for high-speed data transfer, making it suitable for I/O-intensive workloads in warehouse and logistics environments.

The HP P56964-B21 includes 10 Gigabit Ethernet connectivity for high-speed network performance. This makes it suitable for data-intensive operations common in warehouse management systems and logistics applications requiring rapid data synchronization.

The server is equipped with a single 800W power supply, providing adequate power for the dual-processor configuration and storage subsystem. This power rating is typical for 2U rack-mount servers in this performance class.

Yes, the DL380 G10 is categorized as suitable for POS system applications and can serve as a backend server for warehouse management and logistics operations. Its enterprise-grade architecture, dual-processor support, and high-speed networking make it appropriate for mission-critical retail and supply chain environments.
