HP P56954-B21 Servers

Part Number: P56954-B21
Model: Parts
Add to My Shopping List Add to Compare
$100,073.89
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Gold
Processor Generation
2nd Gen

Product Description:

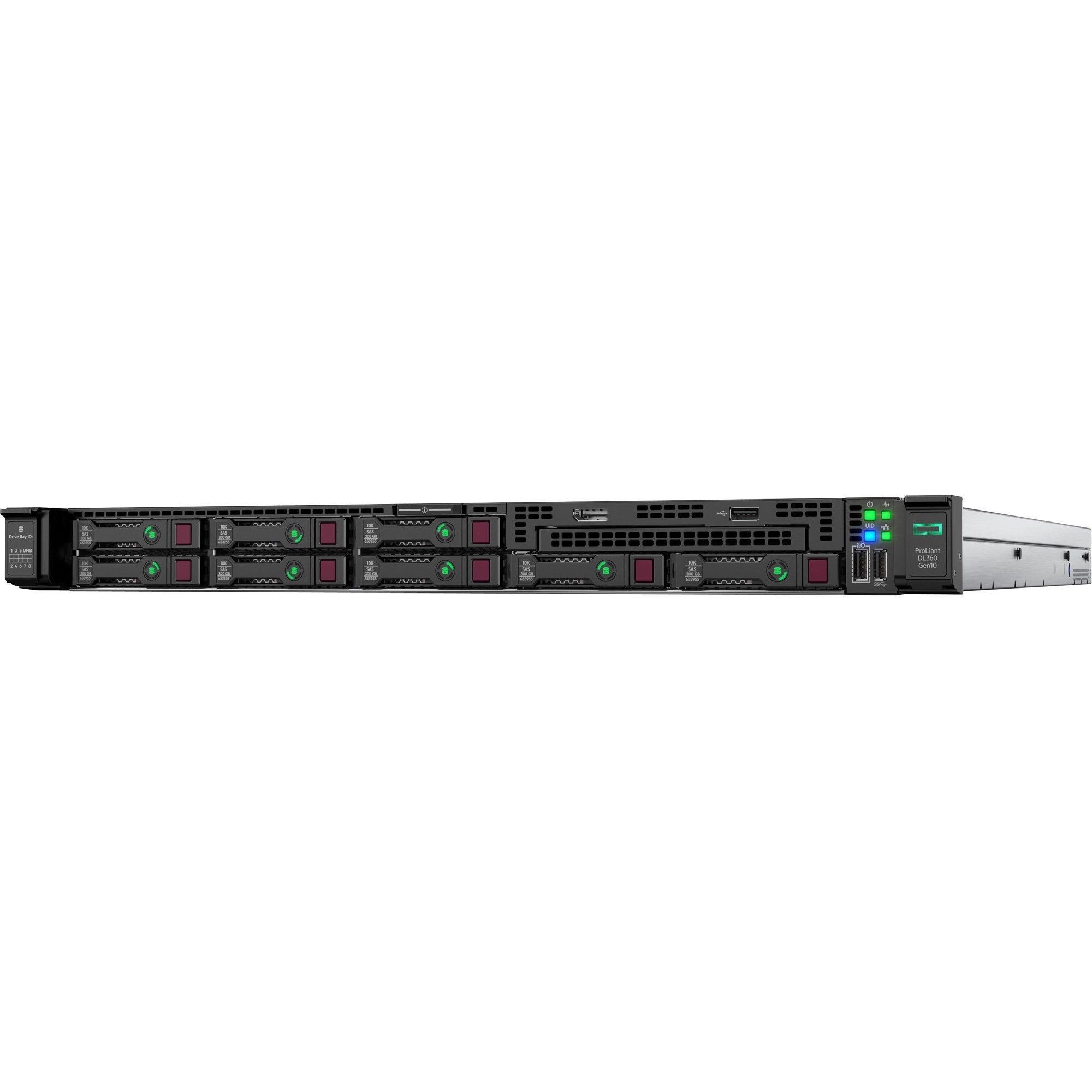

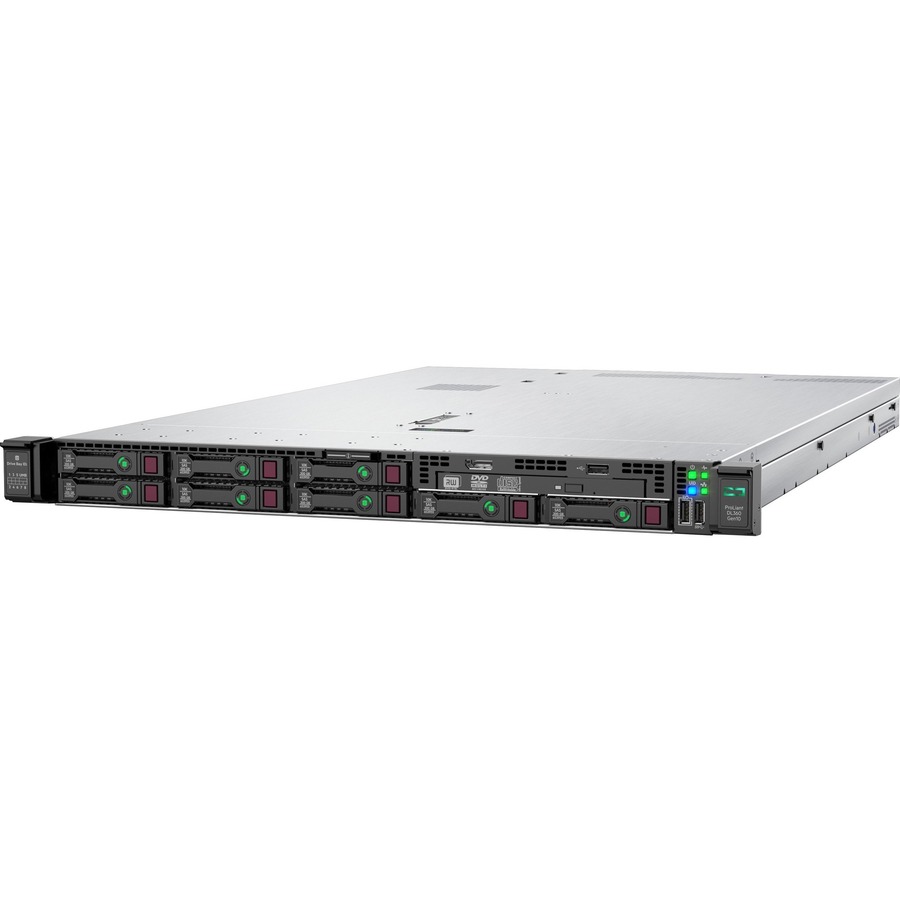

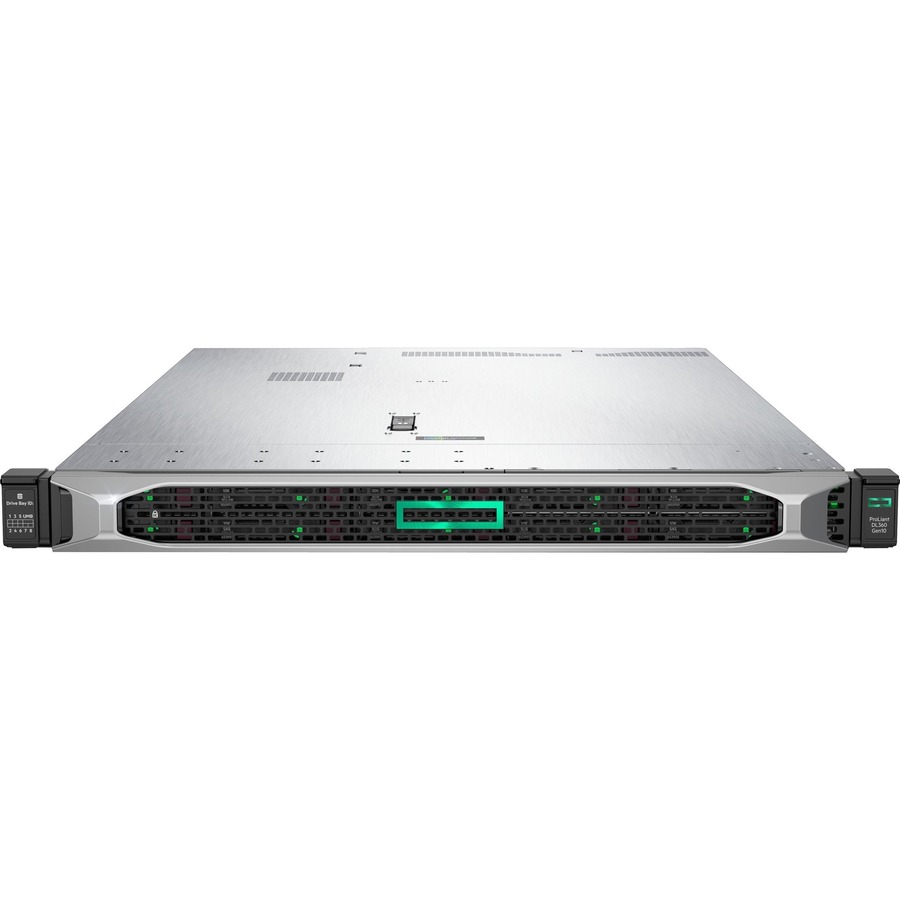

  Servers, HP ProLiant DL360 G10, 1U Rack Server, 1 x Intel Xeon Gold 6248R 3 GHz, 32 GB RAM, Serial ATA, 12GBps SAS Controller, Intel C621 Chip, 2 Processor Support, 1.54 TB RAM Support, Up to 16 MB Graphic Card, 10 Gigabit Ethernet, 8 x SFF Bay(s), Hot Swappable Bays, 1 x 800 W, Intel Optane Memory Ready
Explore all HP Parts Accessories
Add to Quote
HP P56954-B21 Servers
HP P56954-B21 Servers
HP P56954-B21 Servers
HP P56954-B21 Servers HP P56954-B21 Servers HP P56954-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P56954-B21 Servers Overview
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise.

The HPE ProLiant DL360 Gen10 Server supports the Intel® Xeon® Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.
Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Gold
Processor Generation:
2nd Gen
Processor Model:
6248R
Processor Core:
Tetracosa-core (24 Core)
Processor Speed:
3 GHz
Cache:
35.75 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C621
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
1.54 TB
Memory Technology:
DDR4 SDRAM
Error Checking:
ECC
Total Number of Memory Slots:
24
Number of Occupied Memory Slots:
1
Intel Optane Memory Ready:
Yes
Signal Processing:
Registered (Buffered)
Storage
Number of Hard Drives:
No
Optical Drive Type:
No
Controllers
Controller Type:
  • Serial ATA
  • 12Gb/s SAS
Controller Model:
MR416i-a/4GB with Smart Storage Battery
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
2
PCI Express x8 (Gen 3.x) Slots:
1
PCI Express x16 (Gen 3.x) Slots:
1
PCI Express Details:
2 PCIe: 1 x16 FH, 1 x8 LP
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
5
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO 5
Operating System
Operating System Supported:
  • Windows Server 2022 Essentials
  • Windows Server 2022 Standard
  • Windows Server 2022 Datacenter
  • Windows Server 2019 Essentials
  • Windows Server 2019 Standard
  • Windows Server 2019 Datacenter
  • Windows Server 2016 Essential
  • Windows Server 2016 Standard
  • Windows Server 2016 Datacenter
  • Windows Server 2012 R2 Essentials
  • Windows Server 2012 R2 Standard
  • Windows Server 2012 R2 Datacenter
  • Hyper-V
  • ClearOS 7.6
  • Red Hat Enterprise Linux 7.6
  • Red Hat Enterprise Linux 8
  • SUSE Linux Enterprise Server 12 SP3
  • SuSE Linux Enterprise Server 15
  • Ubuntu 18.04 LTS
  • Oracle Linux
  • Citrix XenServer
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
1.7"
Width:
17.1"
Depth:
27.8"
Weight (Approximate):
35.87 lb
Miscellaneous
Package Contents:
  • ProLiant DL360 G10 Server
  • 6-foot IEC C-13/C-14 Jumper Cord
  • Rail Kit SFF Easy Install w/o CMA
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • iLO Security Modes
  • Granular control over iLO interfaces
  • Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
  • Tamper-free updates - components digitally signed and verified
  • Secure Recovery - recover critical firmware to known good state on detection of compromised FW
  • Ability to rollback firmware
  • Secure erase of NAND
  • Bezel Locking Kit
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 3.0
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:
3-year parts, 3-year labor, 3-year onsite support with next business day response.
Item Numbers
GTIN: 0190017616964
UPC: 190017616964
EAN: 0190017616964
UNSPSC: 43211501

Frequently Asked Questions

The HP P56954-B21 features 1 x Intel Xeon Gold 6248R processor running at 3 GHz. This server supports up to 2 processors, making it suitable for demanding enterprise workloads that require multi-socket performance scaling.

The HP P56954-B21 comes with 32 GB of RAM installed and supports up to 1.54 TB of total memory capacity. This substantial memory support makes it ideal for memory-intensive applications and virtualization environments.

The server features 8 x SFF (Small Form Factor) hot-swappable bays with a 12Gbps SAS controller, allowing you to configure storage with Serial ATA or SAS drives. The hot-swappable design enables storage expansion and replacement without downtime.

The HP P56954-B21 includes 10 Gigabit Ethernet connectivity, delivering high-speed network performance for data-intensive operations. This is essential for modern data center environments requiring fast inter-server and storage communication.

The HP P56954-B21 is a 1U rack server with a single 800 W power supply, making it space-efficient for dense data center deployments. The compact 1U form factor allows for high-density server configurations in standard rack cabinets.

Yes, the HP ProLiant DL360 G10 is Intel Optane Memory Ready, enabling you to leverage high-speed persistent memory technology for enhanced application performance. Contact us today to configure your server with Optane memory options available from us.
