HP P55953-001 Servers

Part Number: P55953-001
Model: Parts
Add to My Shopping List Add to Compare
$13,208.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Gold
Processor Generation
4th Gen

Product Description:

  Servers, HP, ML350 G11 5416S MR408I-O 8SFF SVR PL-SY
Explore all HP Parts Accessories
Add to Quote
HP P55953-001 Servers
HP P55953-001 Servers
HP P55953-001 Servers HP P55953-001 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P55953-001 Servers Overview

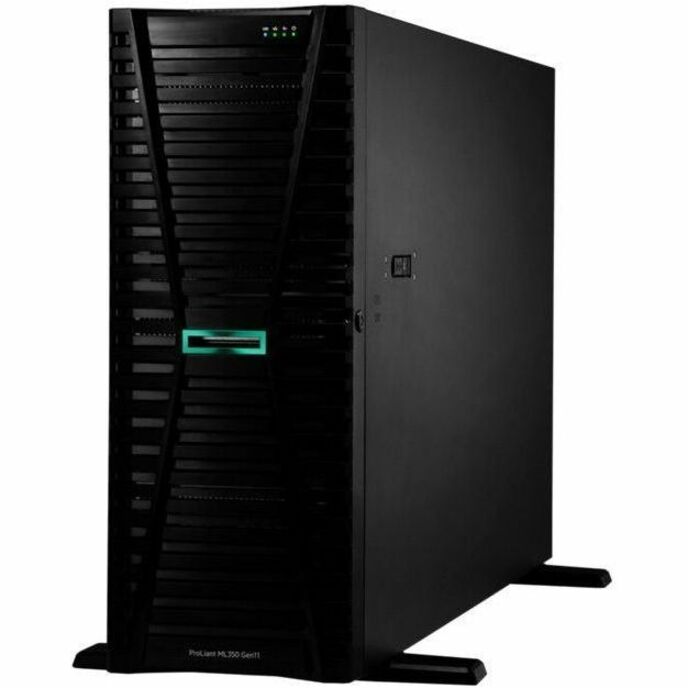

HPE ProLiant ML350 Gen11

Provide most powerful and storage flexibility 2P tower server with rackable chassis design for various environments, and delivers exceptional compute performance, security, reliability, and expandability. Design to fulfill with wide range workloads for small offices, remote and branch offices of large enterprises, growing SMBs and data centers. HPE ProLiant ML350 Gen11 server is an excellent choice to accelerate your growing business.

Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Gold
Processor Generation:
4th Gen
Processor Model:
5416S
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2 GHz
Cache:
30 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C741
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
8 TB
Memory Technology:
DDR5 SDRAM
Error Checking:
ECC
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Controllers
Controller Type:
  • Serial ATA
  • Serial Attached SCSI (SAS)
Controller Model:
MR408i-o
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
4
PCI Express Details:
4 x8 PCIe 5.0 slots
Riser Card:
4 x8 PCIe 5.0 slots with primary riser cage
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Number of USB 2.0 Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
4
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)
DisplayPort:
Yes
Number of DisplayPorts:
1
Operating System
Operating System Supported:
  • Windows Server
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Oracle Linux
  • Ubuntu
  • Citrix XenServer
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Tower
Rack Height:
4U
Height:
18.2"
Width:
6.9"
Depth:
28"
Weight (Approximate):
81.97 lb
Miscellaneous
Package Contents:
  • ProLiant ML350 G11 Server
  • 6-foot IEC C-13/C-14 Jumper Cord
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-3 validation (iLO 6 certification in progress)
  • Common Criteria certification (iLO 6 certification in progress)
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Tamper-free updates -- components digitally signed and verified
  • Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • Secure erase of NAND
  • TPM (Trusted Platform Module) 2.0
  • Front bezel key-lock feature -- standard, available in both Tower and Rack models
  • Padlock slot, standard
  • Kensington Lock slot, standard
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Compliance:
Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Item Numbers
GTIN: 0190017611358
UPC: 190017611358
EAN: 0190017611358
UNSPSC: 43211501

Frequently Asked Questions

The HP P55953-001 Server supports Genuine Windows 7 Professional in both 32-bit and 64-bit versions. We recommend verifying your specific configuration requirements with our team to ensure optimal compatibility for your deployment.

This server is available with Intel Core 2 Duo Processor options, including the P7570 (2.26 GHz, 3 MB L2 cache, 1066 MHz FSB) and the T6570 (2.10 GHz, 2 MB L2 cache, 800 MHz FSB). Contact us today to discuss which processor configuration best fits your workload requirements.

The HP P55953-001 Server supports up to 8 GB of PC-3-10600 (1333MHz) DDR3 SDRAM memory in a 2 x 4 GB configuration. Note that full availability of 4 GB or more requires a 64-bit operating system, as 32-bit systems may have memory limitations above 3 GB.

Storage options include 250 GB to 500 GB SATA 3.0Gb/s hard drives operating at 7200 rpm, with an optional 64 GB Solid State Drive available. Visit barcodesinc.com to configure your preferred storage solution.

The server features integrated NVIDIA GeForce 200 graphics, with an optional discrete NVIDIA 10P GT230M graphics card available. This provides flexibility for deployments requiring enhanced graphics performance.

The server includes an integrated Intel 82579LM Gigabit Network Connection for reliable networking, along with a 56K v.92 modem for legacy connectivity needs. Additional ports and connectors support USB, display, and audio connectivity for comprehensive integration into your infrastructure.
