HP P55247-B21 Servers

Part Number: P55247-B21
Model: Parts
Add to My Shopping List Add to Compare
$11,987.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Silver
Processor Generation
3rd Gen

Product Description:

  Servers, HP ProLiant DL380 G10 Plus, 2U Rack Server, 1 x Intel Xeon Silver 4314 2.40 GHz, 32 GB RAM, 12GBps SAS Controller, Intel C621A Chip, 2 Processor Support, 2 TB RAM Support, Up to 16 MB Graphic Card, 10 Gigabit Ethernet, 8 x SFF Bay(s), Hot Swappable Bays, 1 x 800 W, Intel Optane Memory Ready
Explore all HP Parts Accessories
Add to Quote
HP P55247-B21 Servers
HP P55247-B21 Servers
HP P55247-B21 Servers HP P55247-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P55247-B21 Servers Overview

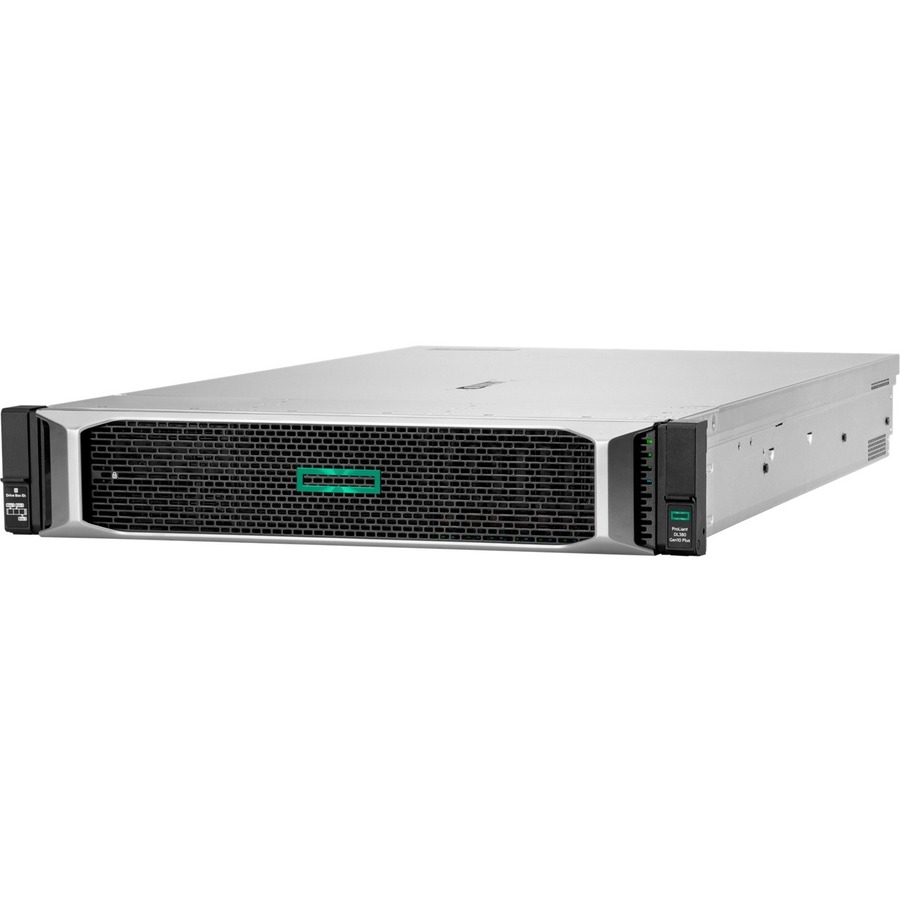

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 Plus delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.

Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Silver
Processor Generation:
3rd Gen
Processor Model:
4314
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.40 GHz
Cache:
24 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C621A
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
2 TB
Memory Technology:
DDR4 SDRAM
Total Number of Memory Slots:
32
Number of Occupied Memory Slots:
1
Intel Optane Memory Ready:
Yes
Signal Processing:
Registered (Buffered)
Storage
Number of Hard Drives:
No
Optical Drive Type:
No
Controllers
Controller Type:
12Gb/s SAS
Controller Model:
MR416i-p
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
3
PCI Express Details:
3 PCIe: x8/x16/x8 PCIe 4.0
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
5
Network (RJ-45):
No
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO 5
Operating System
Operating System Supported:
  • Windows Server 2019 Datacenter
  • Windows Server 2019 Standard
  • Windows Server 2019 Essentials
  • Windows Server 2016 Datacenter
  • Windows Server 2016 Standard
  • Windows Server 2016 Essential
  • Hyper-V
  • Red Hat Enterprise Linux 7.9
  • Red Hat Enterprise Linux 8.2
  • Ubuntu 20.04 LTS
  • SUSE Linux Enterprise Server 12 SP5
  • SUSE Linux Enterprise Server 15 SP2
Operating System:
No
Power Description
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Rack
Rack Height:
2U
Height:
3.4"
Width:
17.5"
Depth:
28"
Weight (Approximate):
63.43 lb
Miscellaneous
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Tamper-free updates - components digitally signed and verified
  • Immutable Silicon Root of Trust
  • Ability to rollback firmware
  • FIPS 140-2 validation
  • Secure erase of NAND/User data
  • Common Criteria certification
  • TPM (Trusted Platform Module) 1.2 option
  • Configurable for PCI DSS compliance
  • TPM (Trusted Platform Module) 2.0 option
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Bezel Locking Kit option
  • Support for Commercial National Security Algorithms (CNSA)
  • Chassis Intrusion detection option
  • Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
Item Numbers
UNSPSC: 43211501

Frequently Asked Questions

The HP P55247-B21 features 1 x Intel Xeon Silver 4314 processor running at 2.40 GHz with support for up to 2 processors in the system. This dual-socket architecture enables scalable performance for enterprise workloads requiring multi-threaded processing power.

The HP P55247-B21 comes standard with 32 GB of RAM and supports up to 2 TB of total system memory. This substantial memory capacity makes it suitable for memory-intensive applications and virtualization environments.

The HP P55247-B21 ProLiant DL380 G10 Plus includes 8 x SFF (Small Form Factor) hot-swappable drive bays, allowing you to upgrade or replace storage without system downtime. It features a 12 Gbps SAS controller for high-speed data transfer and is Intel Optane Memory ready for enhanced performance options.

This server is equipped with 10 Gigabit Ethernet connectivity, enabling high-speed network communication essential for data-intensive warehouse and logistics operations. The networking infrastructure supports modern datacenter requirements for rapid data transfer and real-time inventory management.

The HP P55247-B21 is a 2U rack-mount server designed for standard datacenter deployments, featuring a single 800 W power supply. This compact 2U form factor allows efficient use of rack space while delivering enterprise-class performance.

Please note that product availability may vary. Contact us today at barcodesinc.com to confirm current stock status and pricing for the HP P55247-B21, or to discuss alternative server solutions that meet your infrastructure requirements.
