HP P55246-B21 Servers

Part Number: P55246-B21
Model: Parts
Add to My Shopping List Add to Compare
$11,600.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Silver
Processor Generation
3rd Gen

Product Description:

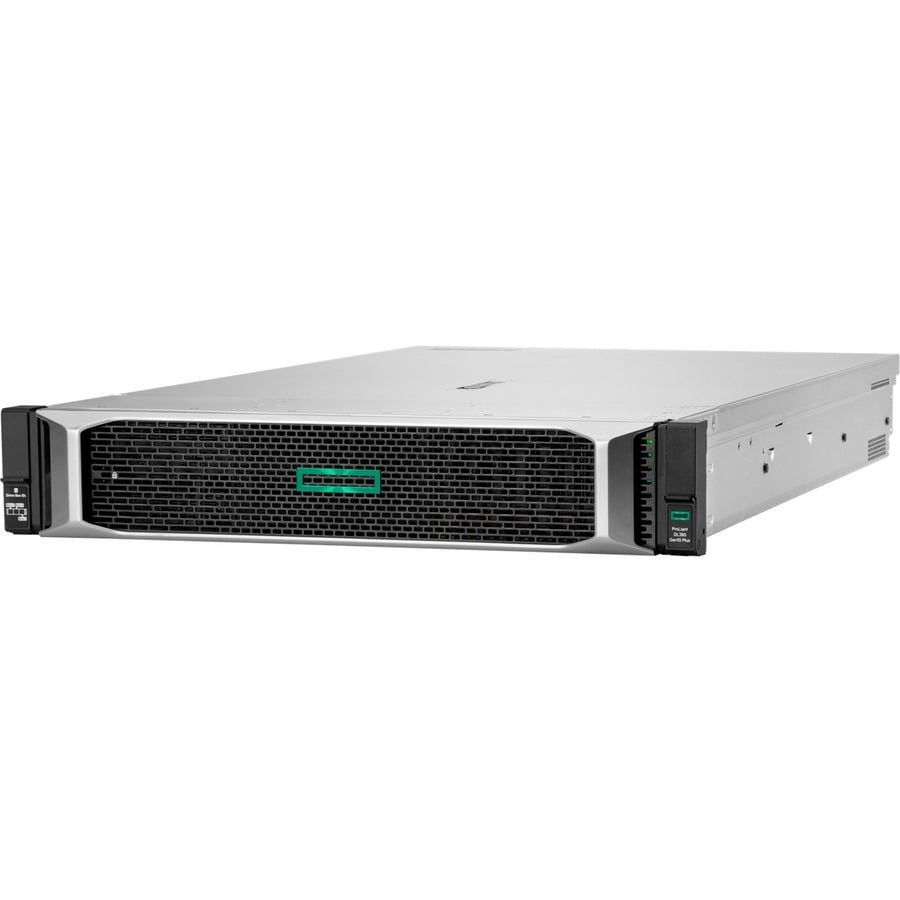

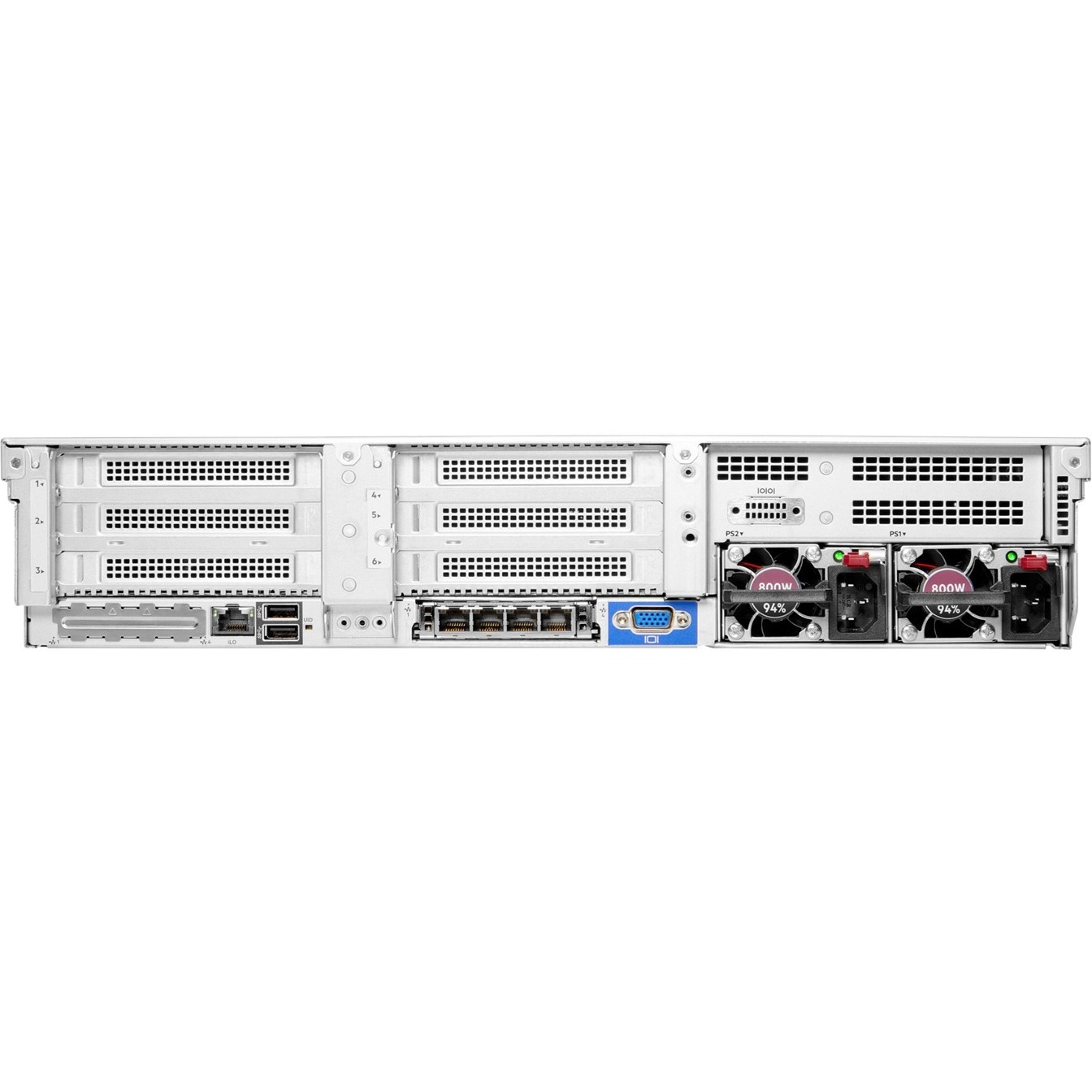

  Servers, HP ProLiant DL380 G10 Plus, 2U Rack Server, 1 x Intel Xeon Silver 4310 2.10 GHz, 32 GB RAM, 12GBps SAS Controller, Intel C621A Chip, 2 Processor Support, 2 TB RAM Support, Up to 16 MB Graphic Card, 10 Gigabit Ethernet, 8 x SFF Bay(s), Hot Swappable Bays, 1 x 800 W, Intel Optane Memory Ready
Explore all HP Parts Accessories
Add to Quote
HP P55246-B21 Servers
HP P55246-B21 Servers
HP P55246-B21 Servers HP P55246-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P55246-B21 Servers Overview

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 Plus delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.

Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Silver
Processor Generation:
3rd Gen
Processor Model:
4310
Processor Core:
Dodeca-core (12 Core)
Processor Speed:
2.10 GHz
Cache:
18 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C621A
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
2 TB
Memory Technology:
DDR4 SDRAM
Total Number of Memory Slots:
32
Number of Occupied Memory Slots:
1
Intel Optane Memory Ready:
Yes
Signal Processing:
Registered (Buffered)
Storage
Number of Hard Drives:
No
Optical Drive Type:
No
Controllers
Controller Type:
12Gb/s SAS
Controller Model:
MR416i-p
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
3
PCI Express Details:
3 PCIe: x8/x16/x8 PCIe 4.0
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
5
Network (RJ-45):
No
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO 5
Operating System
Operating System Supported:
  • Windows Server 2019 Datacenter
  • Windows Server 2019 Standard
  • Windows Server 2019 Essentials
  • Windows Server 2016 Datacenter
  • Windows Server 2016 Standard
  • Windows Server 2016 Essential
  • Hyper-V
  • Red Hat Enterprise Linux 7.9
  • Red Hat Enterprise Linux 8.2
  • Ubuntu 20.04 LTS
  • SUSE Linux Enterprise Server 12 SP5
  • SUSE Linux Enterprise Server 15 SP2
Operating System:
No
Power Description
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
2U
Height:
3.4"
Width:
17.5"
Depth:
28"
Weight (Approximate):
63.43 lb
Miscellaneous
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Tamper-free updates - components digitally signed and verified
  • Immutable Silicon Root of Trust
  • Ability to rollback firmware
  • FIPS 140-2 validation
  • Secure erase of NAND/User data
  • Common Criteria certification
  • TPM (Trusted Platform Module) 1.2 option
  • Configurable for PCI DSS compliance
  • TPM (Trusted Platform Module) 2.0 option
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Bezel Locking Kit option
  • Support for Commercial National Security Algorithms (CNSA)
  • Chassis Intrusion detection option
  • Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
Item Numbers
UNSPSC: 43211501

Frequently Asked Questions

The HP ProLiant DL380 G10 Plus supports up to 2 Intel Xeon Silver 4310 processors running at 2.10 GHz. This dual-socket configuration delivers enterprise-class performance for a variety of server workloads in warehouse and logistics environments.

This server supports up to 2 TB of RAM with a 32 GB standard configuration. The system uses DDR4 memory and provides multiple DIMM slots for flexible memory expansion as your infrastructure needs grow.

The HP ProLiant DL380 G10 Plus features 8 small form factor (SFF) hot-swappable bays for flexible storage configuration. The 12 Gbps SAS controller supports rapid data access, making it suitable for high-performance storage applications in logistics operations.

This server includes 10 Gigabit Ethernet connectivity, enabling fast data transfer for warehouse management systems and distributed logistics networks. The high-speed networking supports real-time barcode scanning and RFID data integration across your facility.

The HP ProLiant DL380 G10 Plus is a 2U rack server with a single 800 W power supply. Its compact 2U density allows efficient deployment in standard server racks commonly found in distribution centers and warehouse IT infrastructure.

Yes, the HP ProLiant DL380 G10 Plus is Intel Optane Memory Ready, allowing you to leverage high-speed persistent memory for enhanced performance in demanding warehouse and logistics applications. Contact us today to discuss Optane configurations that match your operational requirements.
