HP P55243-B21 Servers

Part Number: P55243-B21
Model: Parts
$12,138.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
Xeon Gold
Processor Generation
3rd Gen

Product Description:

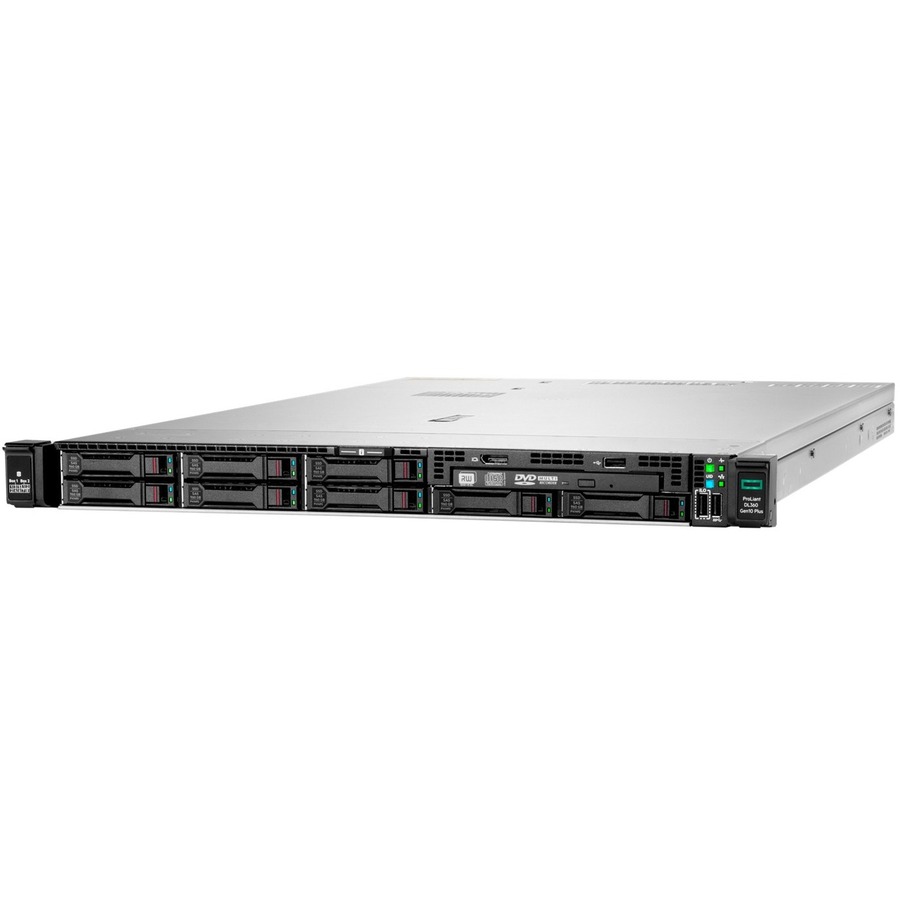

  Servers, HP ProLiant DL360 G10 Plus, 1U Rack Server, 1 x Intel Xeon Gold 5315Y 3.20 GHz, 32 GB RAM, 12GBps SAS Controller, Intel C621A Chip, 2 Processor Support, 2 TB RAM Support, Up to 16 MB Graphic Card, 10 Gigabit Ethernet, 8 x SFF Bay(s), 1 x 800 W, Intel Optane Memory Ready

HP Parts Accessory Model Overview

Products and parts from HP.
HP P55243-B21 Servers Overview

HPE ProLiant DL360 Gen10 Plus server

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.

Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
Xeon Gold
Processor Generation:
3rd Gen
Processor Model:
5315Y
Processor Core:
Octa-core (8 Core)
Processor Speed:
3.20 GHz
Cache:
12 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C621A
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
2 TB
Memory Technology:
DDR4 SDRAM
Memory Clock Speed:
3.20 GHz
Total Number of Memory Slots:
32
Number of Occupied Memory Slots:
1
Intel Optane Memory Ready:
Yes
Signal Processing:
Registered (Buffered)
Storage
Total Hard Drive Capacity:
No
Controllers
Controller Type:
12Gb/s SAS
Controller Model:
MR416i-a/4GB
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Total Number of Expansion Slots:
3
PCI Express Details:
2 PCIe: 1 x16 FH, 1 x16 LP
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
5
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
4
Remote Management:
Yes
Remote Management Controller:
HPE iLO 5
Operating System
Operating System Supported:
  • Windows Server 2019 Essentials
  • Windows Server 2019 Standard
  • Windows Server 2019 Datacenter
  • Windows Server 2016 Essential
  • Windows Server 2016 Standard
  • Windows Server 2016 Datacenter
  • Windows Server 2012 R2 Essentials
  • Windows Server 2012 R2 Standard
  • Windows Server 2012 R2 Datacenter
  • Hyper-V
  • Red Hat Enterprise Linux 8
  • SUSE Linux Enterprise Server 12 SP3
  • SuSE Linux Enterprise Server 15
  • Red Hat Enterprise Linux 6.9
  • Red Hat Enterprise Linux 7.3
  • Red Hat Enterprise Linux 7.6
  • ClearOS 7.6
  • Ubuntu 16.04.3
  • Ubuntu 18.04 LTS
  • Oracle Linux
Operating System:
No
Power Description
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
1.7"
Width:
17.1"
Depth:
29.2"
Weight (Approximate):
39.93 lb
Miscellaneous
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • iLO Security Modes
  • Granular control over iLO interfaces
  • Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
  • Tamper-free updates - components digitally signed and verified
  • Secure Recovery - recover critical firmware to known good state on detection of compromised FW
  • Ability to rollback firmware
  • Secure erase of NAND
  • TPM (Trusted Platform Module)
  • Bezel Locking Kit
  • Chassis Intrusion detection option
Item Numbers
GTIN: 0190017604732
UPC: 190017604732
EAN: 0190017604732
UNSPSC: 43211501

Frequently Asked Questions

The HP P55243-B21 features a single Intel Xeon Gold 5315Y processor running at 3.20 GHz with support for up to 2 processors total. This server comes with 32 GB of RAM and supports up to 2 TB of maximum memory capacity, making it suitable for memory-intensive enterprise applications and virtualization workloads.

The HP P55243-B21 ProLiant DL360 G10 Plus includes 8 Small Form Factor (SFF) drive bays for internal storage expansion. The server features a 12 Gbps SAS Controller and is Intel Optane Memory Ready, allowing you to configure high-performance storage solutions tailored to your data center requirements.

This server is equipped with 10 Gigabit Ethernet connectivity, providing high-speed network performance for demanding enterprise environments. The advanced networking capabilities make it ideal for data-intensive applications and high-throughput warehouse management systems.

The HP P55243-B21 is a 1U Rack Server designed for efficient data center deployment with a single 800 W power supply. Its compact 1U form factor maximizes rack density while the 800 W PSU provides reliable power for the dual-processor architecture and storage expansion.

Yes, the HP P55243-B21 is designed for enterprise workloads with its Intel Xeon Gold 5315Y processor, support for up to 2 TB of RAM, and dual-processor capability. The Intel C621A chipset and advanced memory protection features make it well-suited for virtualization, database servers, and mission-critical logistics and warehouse management applications.

We offer the HP P55243-B21 ProLiant DL360 G10 Plus as part of our comprehensive server and enterprise hardware portfolio. Contact us today or visit barcodesinc.com to discuss your server requirements and get pricing for this enterprise-grade solution.
