HP P55016-B21 Servers

Part Number: P55016-B21
Model: Parts
Add to My Shopping List Add to Compare
$13,185.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Number of Processors Installed
1
Processor Type
EPYC
Processor Generation
4th Gen

Product Description:

  Servers, HP ProLiant DL365 G11, 1U Rack Server, 1 x AMD EPYC 9124 2.70 GHz, 32 GB RAM, 12GBps SAS Controller, AMD Chip, 2 Processor Support, 3 TB RAM Support, Up to 16 MB Graphic Card, Gigabit Ethernet, 8 x SFF Bay(s), Hot Swappable Bays, 1 x 800 W
Explore all HP Parts Accessories
Add to Quote
HP P55016-B21 Servers
HP P55016-B21 Servers
HP P55016-B21 Servers
HP P55016-B21 Servers HP P55016-B21 Servers HP P55016-B21 Servers

HP Parts Accessory Model Overview

Products and parts from HP.
HP P55016-B21 Servers Overview

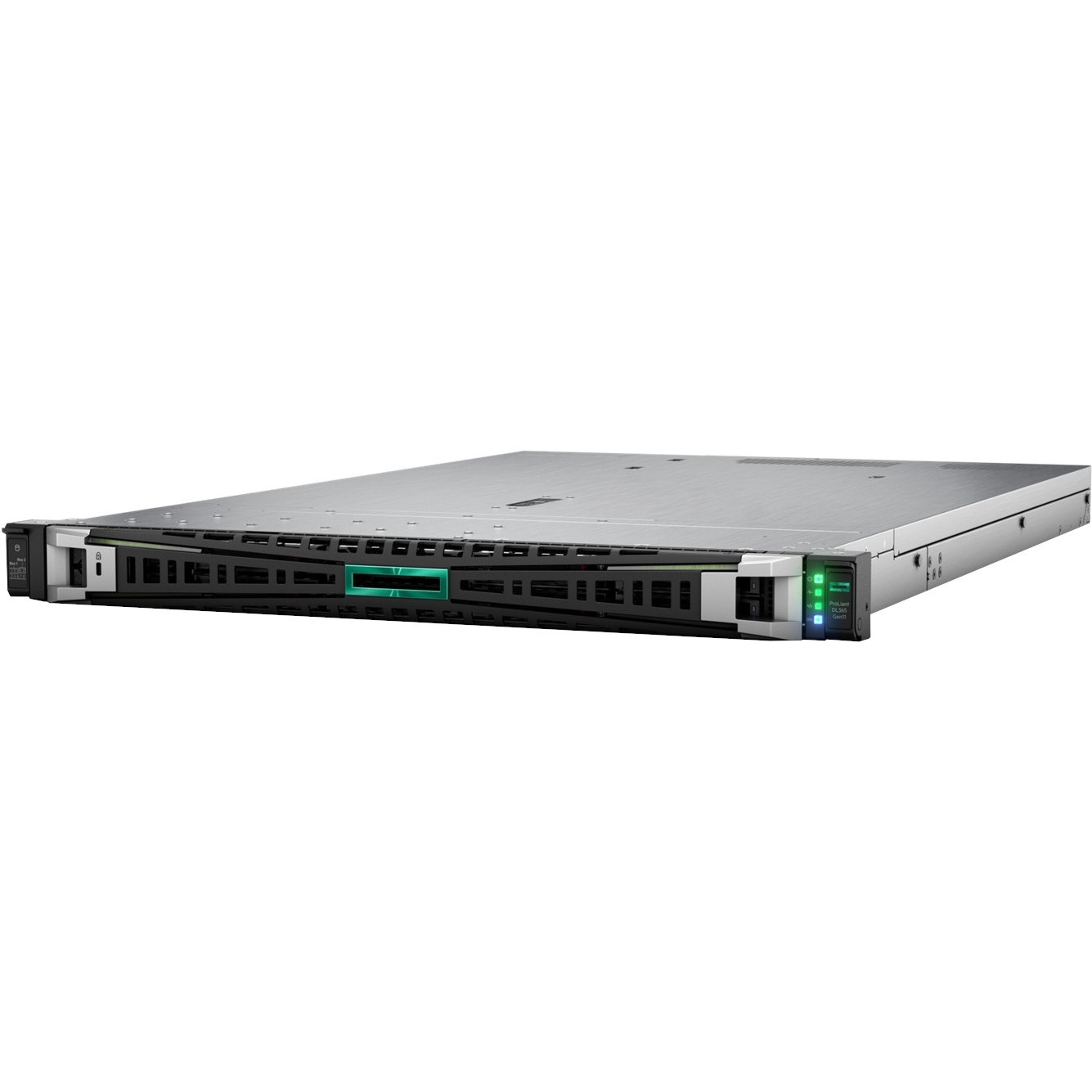

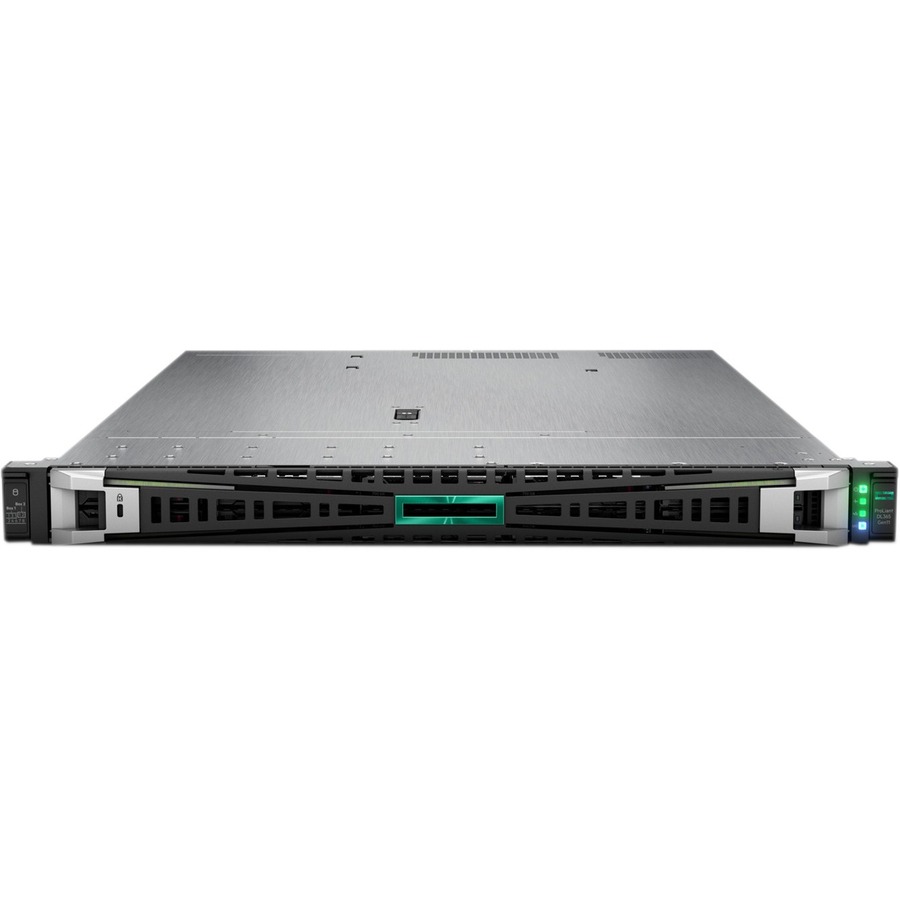

HPE ProLiant DL365 Gen11

Are you looking for a scalable, compute-dense solution for high-performance workloads such as VDI, EDA, or CAD?

The new HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 6 TB), and high-speed PCIe Gen5 I/O, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution.

The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server boots.

The HPE ProLiant DL365 Gen11 server is an excellent choice for those who require increased compute density with built-in security and flexibility.

Processor
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Type:
EPYC
Processor Generation:
4th Gen
Processor Model:
9124
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.70 GHz
Cache:
64 MB
Chipset
Chipset Manufacturer:
AMD
Memory
Standard Memory:
32 GB
Maximum Memory Supported:
3 TB
Memory Technology:
DDR5 SDRAM
Error Checking:
ECC
Total Number of Memory Slots:
24
Number of Occupied Memory Slots:
1
Signal Processing:
Registered (Buffered)
Storage
Total Hard Drive Capacity:
No
Optical Drive Type:
No
Controllers
Controller Type:
12Gb/s SAS
Controller Model:
MR408i-o
RAID Supported:
Yes
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Number of SFF Bays:
8
Hot Swappable Bays:
Yes
Total Number of Expansion Slots:
1
PCI Express Details:
PCI-Express Slots 1 slot (x16) as standard (2nd Slot upgradeable.)
Display & Graphics
Graphics Memory Capacity:
16 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
5
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
4
VGA:
Yes
Number of VGA Ports:
1
Remote Management:
Yes
Remote Management Controller:
HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)
Operating System
Operating System Supported:
  • Windows Server 2019
  • Windows Server 2022
  • Red Hat Enterprise Linux 8.6
  • Red Hat Enterprise Linux 9.0
  • SUSE Linux Enterprise Server 15 SP4
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
2
Number of Power Supplies Installed:
1
Plug/Connector Type:
C13/C14
Maximum Power Supply Wattage:
800 W
Hot Swappable Power Supply:
Yes
Power Source:
Power Supply
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
1.7"
Width:
17.7"
Depth:
25.6"
Weight (Approximate):
40.54 lb
Miscellaneous
Package Contents:
  • ProLiant DL365 G11 Server
  • 6-foot IEC C-13/C-14 jumper cord
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-3 validation (iLO 6 certification in progress)
  • Common Criteria certification (iLO 6 certification in progress)
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Tamper-free updates - components digitally signed and verified
  • Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • Secure erase of NAND/User data
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 3.0
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
3 Year
Additional Warranty Information:

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Item Numbers
GTIN: 0190017603216
UPC: 190017603216
EAN: 0190017603216
UNSPSC: 43211501

Frequently Asked Questions

The HP P55016-B21 features 1 x AMD EPYC 9124 processor running at 2.70 GHz with support for up to 2 processors. This server supports AMD Chip architecture and delivers enterprise-class performance for demanding workloads in warehouse and logistics environments.

The HP P55016-B21 comes with 32 GB of RAM installed and supports up to 3 TB of total system memory. It features 8 x SFF (Small Form Factor) hot-swappable bays for flexible storage configuration, making it ideal for scalable data center deployments.

This is a 1U rack server with a compact form factor designed for high-density data center installations. It includes a single 800 W power supply, providing efficient power delivery for continuous warehouse and logistics operations.

The HP P55016-B21 includes a 12 Gbps SAS controller for high-speed storage connectivity and features Gigabit Ethernet for reliable network connectivity. The hot-swappable bay design allows for easy maintenance and upgrades without system downtime.

Yes, with dual processor support, up to 3 TB RAM capacity, and a 12 Gbps SAS controller, the HP P55016-B21 is engineered for enterprise virtualization, database applications, and intensive warehouse management system workloads. The 1U form factor makes it ideal for organizations requiring high-performance computing in limited rack space.

We offer the HP P55016-B21 ProLiant DL365 G11 server as part of our comprehensive server and infrastructure solutions. Contact us today or visit barcodesinc.com to discuss your enterprise server requirements and get pricing tailored to your warehouse and logistics needs.
