HP P54654-001 Server

Part Number: P54654-001
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
1
Number of Processors Installed
1
Processor Manufacturer
Intel
Processor Type
Xeon

Product Description:

  Servers, HP ProLiant MicroServer G10 Plus v2, Ultra Micro Tower Server, 1 x Intel Xeon E-2314 2.80 GHz, 16 GB RAM, 1 TB HDD, (1 x 1TB) HDD Configuration, Serial ATA Controller, Intel C252 Chip, 1 Processor Support, 64 GB RAM Support, Gigabit Ethernet, 4 x LFF Bay(s), 1 x 180 W
Explore all HP Parts Accessories
Add to Quote
HP P54654-001 Server
HP P54654-001 Server

HP Parts Accessory Model Overview

Products and parts from HP.
HP P54654-001 Server Overview

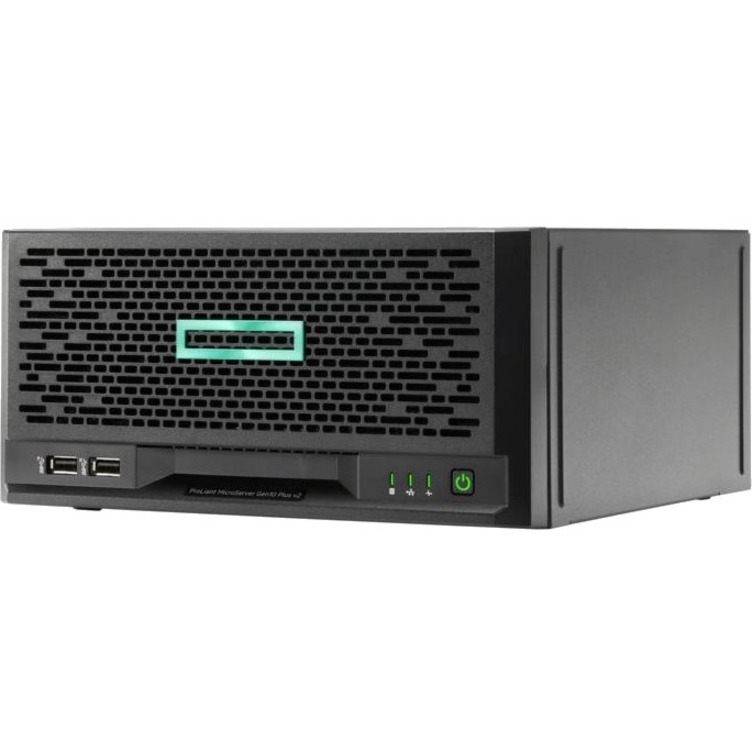

HPE ProLiant MicroServer Gen10 Plus v2

HPE ProLiant MicroServer Gen10 Plus v2 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud, or even workloads demanding datacenter performance. It has the same design as the previous version and can be placed flat or vertically depending on customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, whether you want a generalpurpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.
Processor
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E-2314
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.80 GHz
Cache:
8 MB
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C252
Memory
Standard Memory:
16 GB
Maximum Memory Supported:
64 GB
Memory Technology:
DDR4 SDRAM
Error Checking:
ECC
Number of Total Memory Slots:
2
Number of Occupied Memory Slots:
1
Signal Processing:
Unregistered (Unbuffered)
Storage
Number of Hard Drives:
1
Total Hard Drive Capacity:
1 TB
Hard Drive Interface:
Serial ATA/600
Hard Drive RPM:
7200
Hard Drive Configuration:
1 x 1TB
Optical Drive Type:
No
Controllers
Controller Type:
Serial ATA
Controller Model:
VROC
I/O Expansions
Number of Total Expansion Bays:
4
Number of 3.5" Bays:
4
Number of LFF Bays:
4
Hot Swappable Bays:
No
Number of Total Expansion Slots:
1
PCI Express Details:
1 standard (Low Profile) PCIe 4.0
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
7
Number of USB 2.0 Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
4
VGA:
Yes
Number of VGA Ports:
1
DisplayPort:
Yes
Number of DisplayPorts:
1
Operating System
Operating System Supported:
  • Windows Server 2019 Essentials
  • Windows Server 2019 Datacenter
  • Windows Server 2019 Standard
  • Hyper-V
  • Windows Server 2022 Essentials
  • Windows Server 2022 Standard
  • Windows Server 2022 Datacenter
  • Red Hat Enterprise Linux 8.4
Operating System:
No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported:
1
Number of Power Supplies Installed:
1
Plug/Connector Type:
C5
Maximum Power Supply Wattage:
180 W
Redundant Power Supply:
No
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Ultra Micro Tower
Height:
4.7"
Width:
9.7"
Depth:
9.7"
Weight (Approximate):
15.87 lb
Miscellaneous
Security Features:
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Ability to rollback firmware
  • Secure erase of NAND/User data
  • TPM (Trusted Platform Module) 2.0 Gen 10 Plus
  • Front bezel lock feature, standard
  • Padlock slot, standard
  • Kensington Lock slot, standard
  • Power cord clip, standard
Environmentally Friendly:
Yes
Warranty
Additional Warranty Information:
Server Warranty includes 1- Year Parts, 1-Year Labor, 1- Year Onsite support with next business day response
Item Numbers
GTIN: 0190017600529
UPC: 190017600529
EAN: 0190017600529
UNSPSC: 43211501
