Storage Capacity:
256 GB
HP M1F73AA Products
Part Number:
M1F73AA
Model:
HP Parts Accessory Model Overview
Products and parts from HP.
HP M1F73AA Products Overview

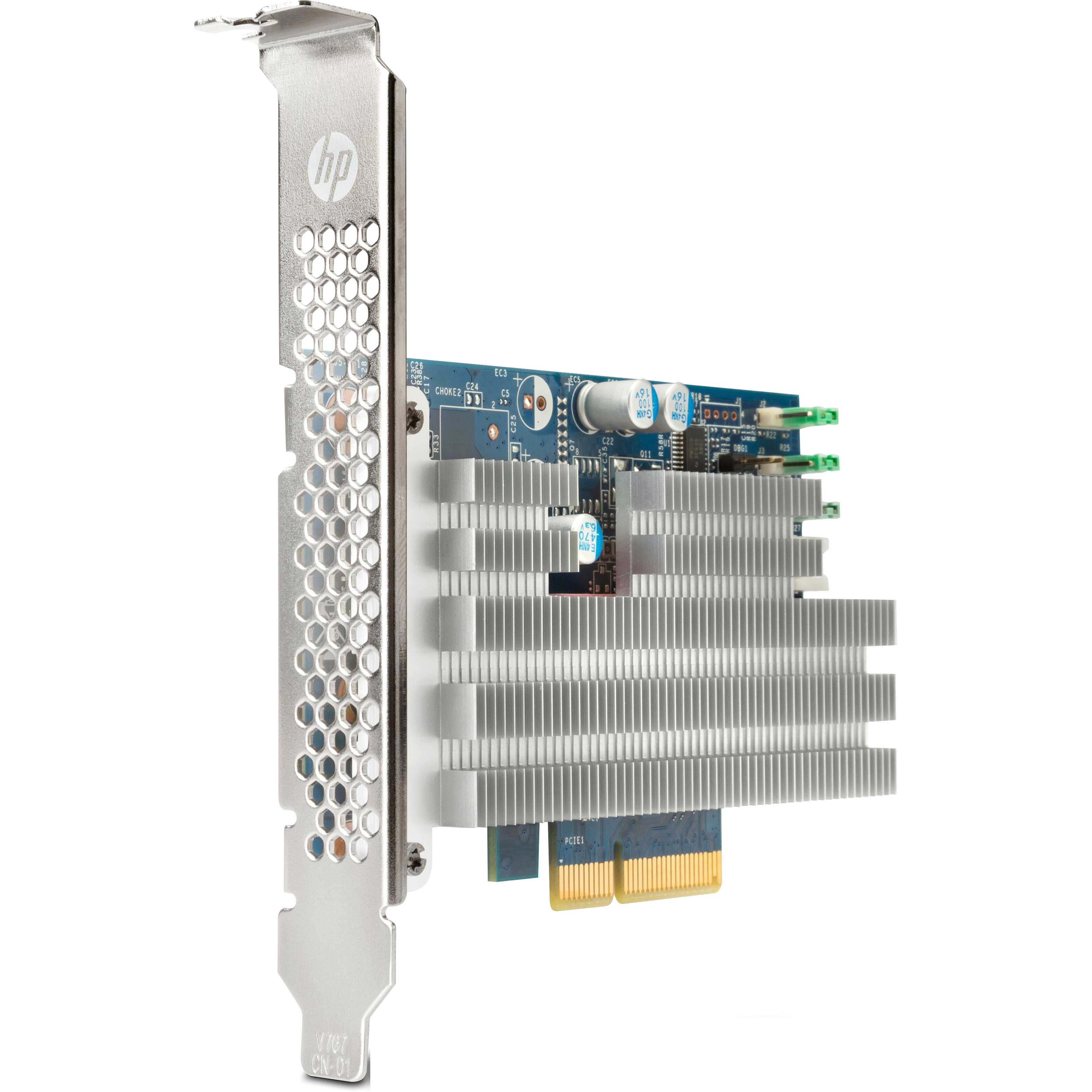

HP Z Turbo Drive
Introduction
Storage technology with NAND media is outgrowing the bandwidth limitations of the SATA bus. New high performance s torage solutions will connect directly to the PCIe bus for revolutionary performance improvements. These comp onents will be available in a variety of form factors and performance levels, designed specifically for certain market segments, and ultimately the costs will continue to decline as the technology evolves.
Performance
HP Z Turbo Drive G2 The new HP Z Turbo Drive G2 features the next generation PCIe SSD. This M.2 form factor device uses PCIe Gen3 x4 which enables performance levels greater than 2GB/s. The Random Read performance is significantly improved also, due to the NVMe controlle r technology u sed on the device. This performance i s available at a price that is comparable to commercial SATA SSDs.
The HP Z Turbo Drive G2 will be supported on desktop platforms of HP Z Workstations. It will support storage configurations as a Boot device and as a Data device. It also can be configured with other storage components including SATA and SAS drives and controllers. Not all configurations are available from the factory.
Introduction
Storage technology with NAND media is outgrowing the bandwidth limitations of the SATA bus. New high performance s torage solutions will connect directly to the PCIe bus for revolutionary performance improvements. These comp onents will be available in a variety of form factors and performance levels, designed specifically for certain market segments, and ultimately the costs will continue to decline as the technology evolves.
Performance
HP Z Turbo Drive G2 The new HP Z Turbo Drive G2 features the next generation PCIe SSD. This M.2 form factor device uses PCIe Gen3 x4 which enables performance levels greater than 2GB/s. The Random Read performance is significantly improved also, due to the NVMe controlle r technology u sed on the device. This performance i s available at a price that is comparable to commercial SATA SSDs.
The HP Z Turbo Drive G2 will be supported on desktop platforms of HP Z Workstations. It will support storage configurations as a Boot device and as a Data device. It also can be configured with other storage components including SATA and SAS drives and controllers. Not all configurations are available from the factory.
Technical Information
Drive Performance
Maximum Read Transfer Rate:
2150 MB/s
Maximum Write Transfer Rate:
1260 MB/s
Interfaces/Ports
Drive Interface:
PCI Express
Physical Characteristics
Drive Type:
Internal
Weight (Approximate):
3.90 oz
Miscellaneous
Compatibility:
HP Desktop Workstations:
- Z440
- Z640
- Z840
Device Supported:
- Desktop PC
- Workstation
Item Numbers
GTIN:
0889296444763
UPC:
889296444763
EAN:
0889296444763
UNSPSC:
43201830
