HP J9783A#ABA Network Switch

HP Ethernet Switches - Managed - 8 x 10/100 + 2 x combo Gigabit SFP - desktop, rack-mountable, wall-mountable. North American version.

Ethernet Switch provides reliable, efficient connectivity to ensure maximum feasibility
Features 8 networking ports to easily establish a local network or expand your existing one
Built-in power supply to ensure all components are being supplied with accurate voltage
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
Management capability allows maximum efficiency and with unrestricted control
Gigabit Ethernet port for ultra-fast network speeds
Twisted Pair media support ensures maximum convenience and great usability
256 MB memory makes you productive with its smooth performance

Need a different version? See all HP Ethernet Switches Network Switches

$589.00

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Overview

HP Ethernet Switches Network Switch Model Overview

HP FlexNetwork architecture brings consistent and open standardsâ€“based networking to enterprise networks in the data center, campus and branches. HP networking switches offer high performance, scalability, and a wide range of features for core to edge connectivity that dramatically reduces network complexity and lowers cost of ownership.

HP J9783A#ABA Network Switch Overview

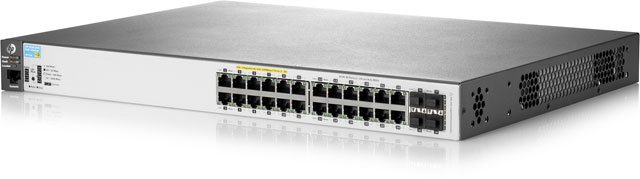

HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Bypass:

Modular:

Management Port:

Yes

USB:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

8 x Fast Ethernet Network
2 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Fast Ethernet
Gigabit Ethernet

Network Technology:

10/100Base-TX
10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

MIB II
Command Line Interface (CLI)
SNMP v1/2c/3
QoS
VLAN
Web-based Management
DHCP
Telnet
RMON
Intelligent Management Center
sFlow

Memory

Standard Memory:

256 MB

Memory Technology:

DDR3 SDRAM

Flash Memory:

128 MB

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable
Wall Mountable
Desktop

Height:

1.8"

Width:

10"

Depth:

6.3"

Weight (Approximate):

1.81 lb

Miscellaneous

Certifications & Standards:

FCC Class A certified
CISPR 22 Class A
CISPR 24
EN 61000-3-2
IEC 61000-3-2
IEC 61000-3-3
IEC 61000-4-11
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
VCCI Class A ITE
EN 61000-3-3
EN55024
EN55022 Class A
UL 60950-1
IEC 60950-1
EN 60950-1
EN 60825
CSA C22.2 No. 60950-1

Country of Origin:

China

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0657379391125

UPC: 657379391125

EAN: 0657379391125

UNSPSC: 43222612

Reviews

Q&A

Get help from a Barcoding Expert!

The HP J9783A#ABA Network Switch is also known as HPE-J9783A#ABA
