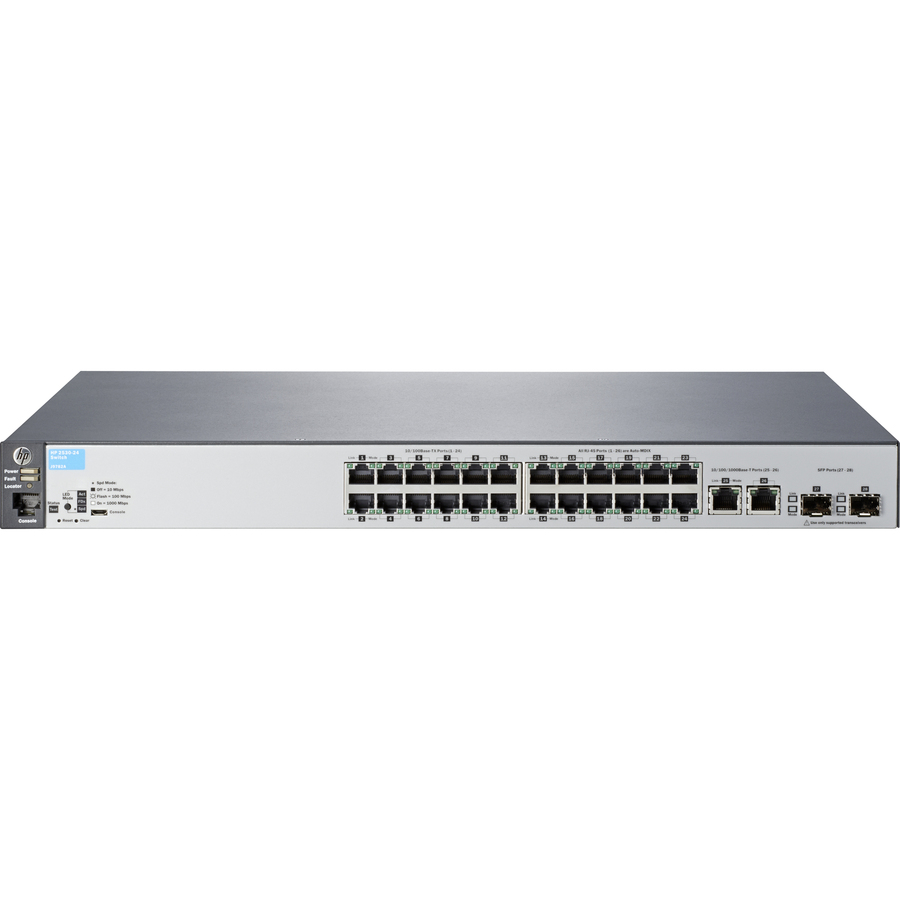

HP J9782A#ABA Ethernet Switch

Part Number: J9782A#ABA

Model: Ethernet Switches

$779.00

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Total Number of Network Ports

Token Ring Port

LRE Port

Uplink Port

Yes

Product Description:

Managed - 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000 - desktop, rack-mountable, wall-mountable. North American version.

Explore all HP Ethernet Switches Ethernet Switches

Add to Quote

Overview

HP Ethernet Switches Ethernet Switch Model Overview

HP FlexNetwork architecture brings consistent and open standards–based networking to enterprise networks in the data center, campus and branches. HP networking switches offer high performance, scalability, and a wide range of features for core to edge connectivity that dramatically reduces network complexity and lowers cost of ownership.

HP J9782A#ABA Ethernet Switch Overview

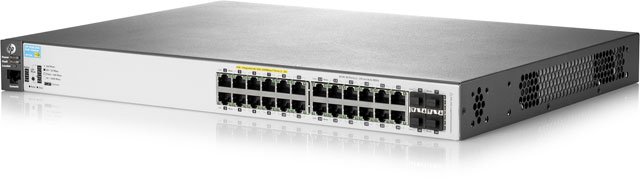

The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0.

The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Uplink Port:

Yes

Bypass:

Management Port:

Yes

USB:

Yes

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

24 x Fast Ethernet Network
2 x Gigabit Ethernet Uplink
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Fast Ethernet
Gigabit Ethernet

Network Technology:

10/100Base-TX
10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots:

2.0

Expansion Slot Type:

SFP

Shared SFP Slot:

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

Web-based Management
Intelligent Management Center
CLI
Telnet
SNMP v1, v2c, v3
MIB II
RMON 1, 2, 3, 9
DHCP
QoS
VLAN
sFlow

Memory

Standard Memory:

256 MB

Memory Technology:

DDR3 SDRAM

Flash Memory:

128 MB

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable
Desktop
Wall Mountable

Height:

1.8"

Width:

17.4"

Depth:

9.7"

Weight (Approximate):

5.70 lb

Miscellaneous

Package Contents:

2530-24 Switch
Mounting Hardware

Certifications & Standards:

IEEE Standards:

802.1D
802.1p
802.1Q
802.1s
802.1w
802.3
802.3ab
802.3ad
802.3az
802.3x

Safety:

UL 60950-1
CAN/CSA 22.2 No. 60950-1
EN 60825
IEC 60950-1
EN 60950-1

Emissions:

FCC Class A
EN 55022
CISPR-22 Class A
VCCI Class A

Immunity:

EN 61000-3-3
IEC 61000-3-3
EN 61000-3-2
IEC 61000-3-2
IEC 61000-4-11
IEC 61000-4-8
IEC 61000-4-6
IEC 61000-4-5
IEC 61000-4-4
IEC 61000-4-3
IEC 61000-4-2
EN 55024
CISPR 24

Country of Origin:

China

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0172302747133, 0657379383045, 0818213948374

UPC: 172302747133, 657379383045, 818213948374

EAN: 0172302747133, 0657379383045, 0818213948374

UNSPSC: 43222612
