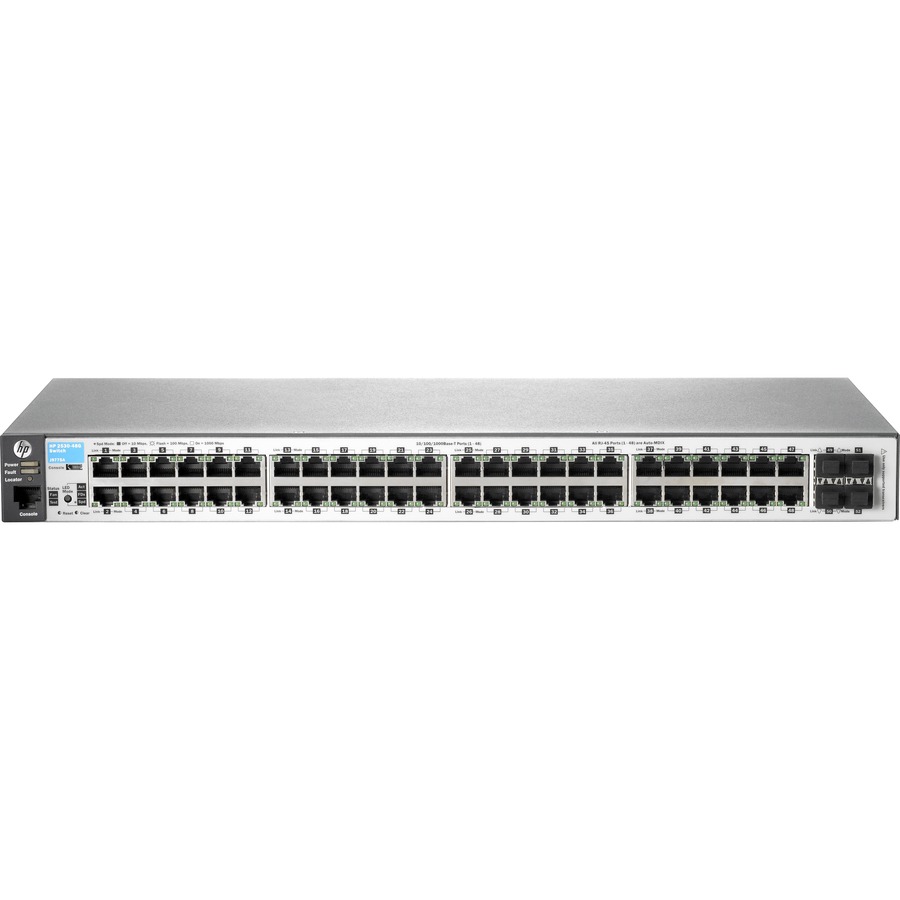

HP J9775A#ABA Network Switch

The HP J9775A#ABA Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
HP Ethernet Switches - Managed - 48 x 10/100/1000 + 4 x Gigabit SFP - desktop, rack-mountable, wall-mountable. North American version.
  • Effectively reduces downtime with improved network performance
  • Features 48 networking ports to meet the requirements of the most demanding workgroups
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Gigabit Ethernet port for ultra-fast network speeds
  • Twisted Pair media support ensures maximum convenience and great usability
  • 128 MB memory seamlessly handles multiple connections together
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
HP Ethernet Switches Network Switch Model Overview
HP FlexNetwork architecture brings consistent and open standards–based networking to enterprise networks in the data center, campus and branches. HP networking switches offer high performance, scalability, and a wide range of features for core to edge connectivity that dramatically reduces network complexity and lowers cost of ownership.
HP J9775A#ABA Network Switch Overview

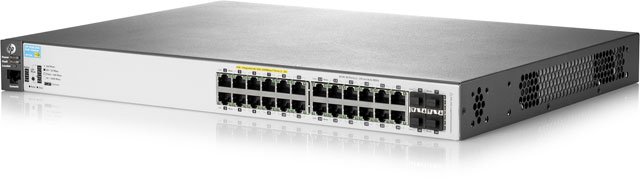

The HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.

Each 2530 switch has 24 or 48 RJ-45 10/100/1000 ports and four small form-factor pluggable (SFP) slots for fiber connectivity. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24G-PoE+ and the HP 2530-48G-PoE+ Switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port.

Interfaces/Ports
Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Stack Port:
No
Number of Network (RJ-45) Ports:
48
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP
Shared SFP Slot:
No
Number of SFP Slots:
4
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • Web Based Management
  • Syslog
  • SNMP v1/v2c/v3
  • RMON 1,2,3,9
  • CLI
  • MIB II
  • Telnet
  • VLAN
  • DHCP
  • QoS
Memory
Standard Memory:
128 MB
Memory Technology:
DDR3 SDRAM
Flash Memory:
256 MB
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Desktop
  • Rack-mountable
  • Wall Mountable
Height:
1.8"
Width:
17.4"
Depth:
10"
Weight (Approximate):
6.80 lb
Miscellaneous
Certifications & Standards:

Safety:

  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • EN 60825
  • IEC 60950-1
  • EN 60950-1

Emissions:

  • FCC Class A
  • EN 55022/CISPR-22 Class A
  • VCCI Class A

Immunity:

  • EN 55024, CISPR 24
  • EN 55024, CISPR 24
  • IEC 61000-4-2
  • EC 61000-4-3
  • IEC 61000-4-4
  • EC 61000-4-5
  • IEC 61000-4-6
  • IEC 61000-4-8
  • IEC 61000-4-11
  • EN 61000-3-2
  • IEC 61000-3-2
  • EN 61000-3-3
  • IEC 61000-3-3

IEEE Standards:

  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.3
  • 802.3ab
  • 802.3ad
  • 802.3az
  • 802.3x
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0886112458140
UPC: 886112458140
EAN: 0886112458140
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The HP J9775A#ABA Network Switch is also known as HPE-J9775A#ABA
