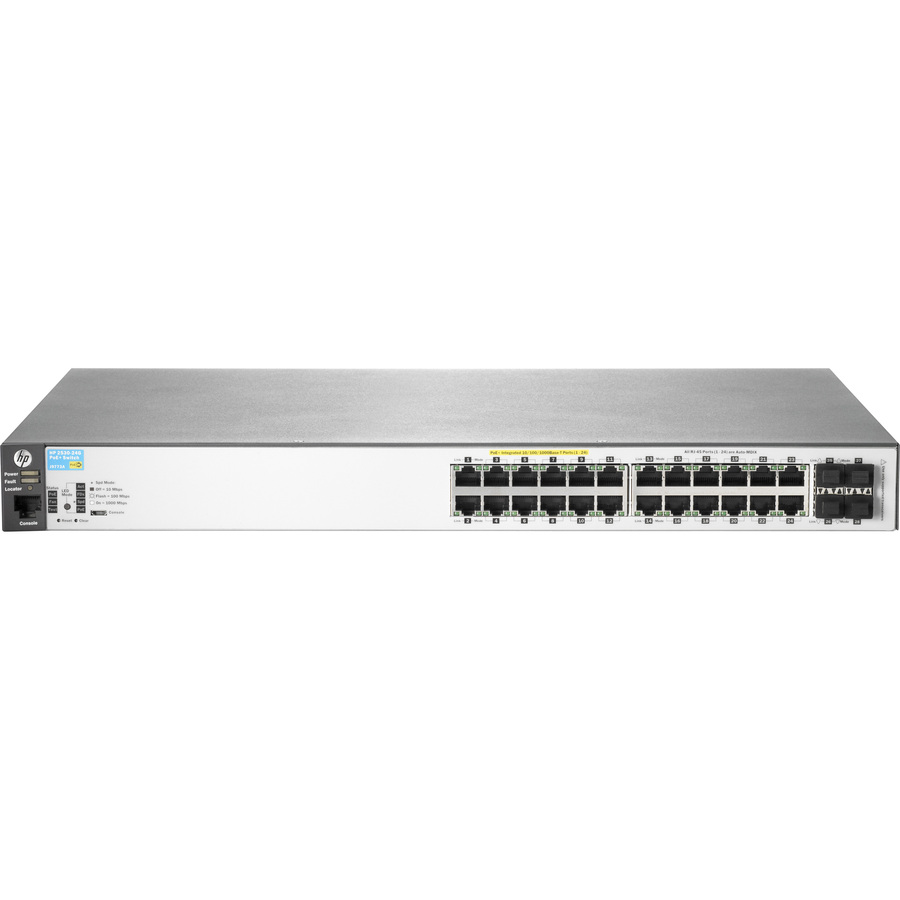

HP J9773A#ABA Network Switch

HP Ethernet Switches - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, rack-mountable, wall-mountable - PoE+. North American version.

Effectively reduces downtime with improved network performance
With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
Features 24 networking ports to establish large network
Built-in power supply to ensure all components are being supplied with accurate voltage
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Desktop form factor allows hassle-free and easy usage with increased efficiency
Management capability allows maximum efficiency and with unrestricted control
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
USB allows powerful and efficient transfer of data with maximum productivity

Need a different version? See all HP Ethernet Switches Network Switches

$2,176.00

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Overview

HP Ethernet Switches Network Switch Model Overview

HP FlexNetwork architecture brings consistent and open standardsâ€“based networking to enterprise networks in the data center, campus and branches. HP networking switches offer high performance, scalability, and a wide range of features for core to edge connectivity that dramatically reduces network complexity and lowers cost of ownership.

HP J9773A#ABA Network Switch Overview

The HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.

Each 2530 switch has 24 or 48 RJ-45 10/100/1000 ports and four small form-factor pluggable (SFP) slots for fiber connectivity. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24G-PoE+ and the HP 2530-48G-PoE+ Switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Bypass:

Modular:

Management Port:

Yes

USB:

Yes

Number of PoE+ (RJ-45) Ports:

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Shared SFP Slot:

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

MIB II
CLI
SNMP v1/v2c/v3
QoS
VLAN
GUI
DHCP
TELNET
RMON 1,2,3,9
Intelligent Management Center

Memory

Standard Memory:

128 MB

Memory Technology:

DDR3 SDRAM

Flash Memory:

128 MB

Power Description

PoE (RJ-45) Port:

Yes

Power Source:

Power Supply

Redundant Power Supply Supported:

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Desktop
Rack-mountable
Wall Mountable

Height:

1.8"

Width:

17.4"

Depth:

13"

Weight (Approximate):

8.71 lb

Miscellaneous

Package Contents:

2530-24G-PoE+ Switch
Rack-Mounting Kit

Certifications & Standards:

Emissions:

FCC Class A
EN 55022/CISPR-22 Class A
VCCI Class A

IEEE Protocols:

802.1D
802.1p
802.1Q
802.1s
802.1w
802.3
802.3ab
802.3ad
802.3af
802.3at
802.3az
802.3x

Safety:

UL 60950-1
CAN/CSA 22.2 No. 60950-1
EN 60825
IEC 60950-1
EN 60950-1

Country of Origin:

China

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0886112457761

UPC: 886112457761

EAN: 0886112457761

UNSPSC: 43222612

Reviews

Q&A

Get help from a Barcoding Expert!

The HP J9773A#ABA Network Switch is also known as HPE-J9773A#ABA
