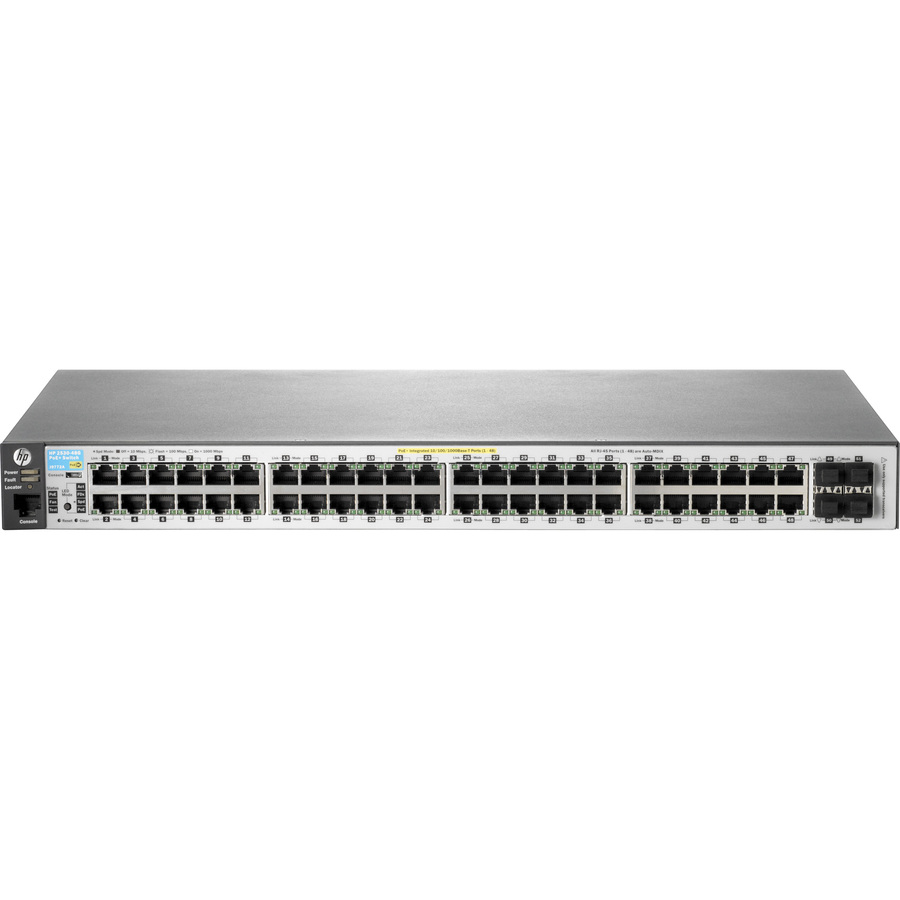

HP J9772A#ABA Network Switch

The HP J9772A#ABA Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
HP Ethernet Switches - Managed - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, rack-mountable, wall-mountable - PoE+. North American version.
  • Effectively reduces downtime with improved network performance
  • With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
  • Features 48 networking ports to establish large network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Management capability provides control over setup and configuration of your network
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • USB allows quick transmission of data at a higher rate for your convenience
Read More

Need a different version? See all HP Ethernet Switches Network Switches

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
HP J9772A#ABA Network Switch
HP J9772A#ABA Network Switch HP J9772A#ABA Network Switch HP J9772A#ABA Network Switch HP J9772A#ABA Network Switch HP J9772A#ABA Network Switch HP J9772A#ABA Network Switch
HP J9772A#ABA Network Switch
HP J9772A#ABA Network Switch
HP J9772A#ABA Network Switch
HP J9772A#ABA Network Switch
HP J9772A#ABA Network Switch
HP J9772A#ABA Network Switch
HP Ethernet Switches Network Switch Model Overview
HP FlexNetwork architecture brings consistent and open standards–based networking to enterprise networks in the data center, campus and branches. HP networking switches offer high performance, scalability, and a wide range of features for core to edge connectivity that dramatically reduces network complexity and lowers cost of ownership.
HP J9772A#ABA Network Switch Overview

The HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.

Each 2530 switch has 24 or 48 RJ-45 10/100/1000 ports and four small form-factor pluggable (SFP) slots for fiber connectivity. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24G-PoE+ and the HP 2530-48G-PoE+ Switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port.

Interfaces/Ports
Total Number of Network Ports:
48
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Number of PoE+ (RJ-45) Ports:
48
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP
Shared SFP Slot:
No
Number of SFP Slots:
4
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • MIB II
  • CLI
  • SNMP v1/v2c/v3
  • QoS
  • VLAN
  • GUI
  • DHCP
  • TELNET
  • RMON 1,2,3,9
  • Intelligent Management Center
Memory
Standard Memory:
128 MB
Memory Technology:
DDR3 SDRAM
Flash Memory:
128 MB
Power Description
PoE (RJ-45) Port:
Yes
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop
  • Wall Mountable
Height:
1.8"
Width:
17.4"
Depth:
12.7"
Weight (Approximate):
10.41 lb
Miscellaneous
Package Contents:
  • 2530-48G-PoE+ Switch
  • Rack-Mounting Kit
Certifications & Standards:

Emissions:

  • FCC Class A
  • EN 55022/CISPR-22 Class A
  • VCCI Class A

IEEE Protocols:

  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.3
  • 802.3ab
  • 802.3ad
  • 802.3af
  • 802.3at
  • 802.3az
  • 802.3x

Safety:

  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • EN 60825
  • IEC 60950-1
  • EN 60950-1
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0886112457570
UPC: 886112457570
EAN: 0886112457570
UNSPSC: 43222612
