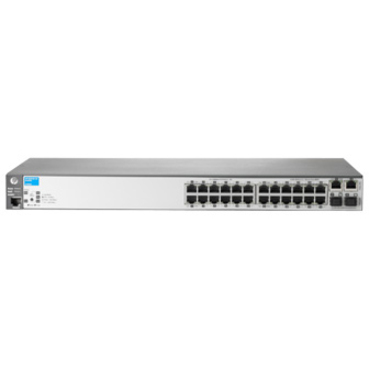

HP J9624A#ABA Network Switch

HP Ethernet Switches - Managed - 12 x 10/100 + 12 x 10/100 PoE+ + 2 x 10/100/1000 + 2 x SFP - rack-mountable - PoE+. North American version.

Layer 3 Switch provides dependable and powerful connectivity for maximum usability
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
Features 24 networking ports to establish large network
Power Supply power source for required power supply to ensure maximum efficiency
Can work as layer 3 routing for scalable network design
Desktop form factor allows hassle-free and easy usage with increased efficiency
Gigabit Ethernet port for ultra-fast network speeds
512 MB memory makes you productive with its smooth performance

Need a different version? See all HP Ethernet Switches Network Switches

$1,155.00

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Overview

HP Ethernet Switches Network Switch Model Overview

HP FlexNetwork architecture brings consistent and open standardsâ€“based networking to enterprise networks in the data center, campus and branches. HP networking switches offer high performance, scalability, and a wide range of features for core to edge connectivity that dramatically reduces network complexity and lowers cost of ownership.

HP J9624A#ABA Network Switch Overview

The HP E2620 Switch Series consists of five switches with 10/100 connectivity. The HP E2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployment in open spaces. The HP E2620-24-PPoE+ Switch, HP E2620-24-PoE+ Switch, and HP E2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant and provide up to 30 W per powered port. All E2620 series switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With IPV4/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP E2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Uplink Port:

Yes

Number of PoE+ (RJ-45) Ports:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

24 x Fast Ethernet Network
2 x Gigabit Ethernet Uplink
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Ethernet Technology:

Gigabit Ethernet
Fast Ethernet

Network Technology:

10/100/1000Base-T
10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

RMON 1, 2, 3, 9
QoS
DHCP
SNMP v1, v2c, v3
Telnet
sFlow
CLI
Web-based Management
MIB
VLAN

Memory

Standard Memory:

512 MB

Memory Technology:

SDRAM

Flash Memory:

512 MB

Power Description

PoE (RJ-45) Port:

Yes

Power Source:

Power Supply

Redundant Power Supply Supported:

Yes

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Desktop
Wall Mountable
Rack-mountable

Height:

1.7"

Width:

17.4"

Depth:

10"

Weight (Approximate):

7.04 lb

Miscellaneous

Package Contents:

E2620-24-PPoE+ Layer 3 Switch
Rack Mounting Kit

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0657379385995, 0885631711385

UPC: 657379385995, 885631711385

EAN: 0657379385995, 0885631711385

UNSPSC: 43222612
