HP EY022AA Barcode Scanner

HP EY022AT Barcode Scanner A newer version of this item is available.
It is replaced by the HP EY022AT Barcode Scanner.
HP Barcode Scanner - USB kit. Includes scanner, USB cable.
  • Speed up customer's checkout experience
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser scan engine guarantees rapid error free data entry
  • Scan barcodes with a staggering speed of 100 scan/s
Read More

Need a different version? See all HP Barcode Scanner Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
HP EY022AA Barcode Scanner
HP EY022AA Barcode Scanner HP EY022AA Barcode Scanner HP EY022AA Barcode Scanner HP EY022AA Barcode Scanner
HP EY022AA Barcode Scanner
HP EY022AA Barcode Scanner
HP EY022AA Barcode Scanner
HP EY022AA Barcode Scanner
Full specifications (PDF)
HP Barcode Scanner Barcode Scanner Model Overview

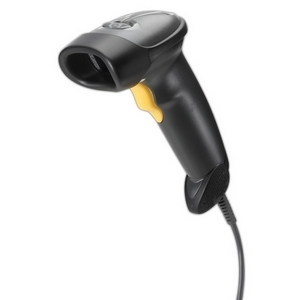

The Barcode Scanner is a small, lightweight hand-held scanner which offers superior performance, excellent reliability and user-friendly comfort to create a more productive retail environment. Used in conjunction with HP Point of Sale System rp5000, the Barcode Scanner scans from industry-standard barcodes for fast and easy input of retail information. The Barcode Scanner offers fast performance with 100 scans per second in a lightweight durable design.
HP EY022AA Barcode Scanner Overview

The HP USB Bar Code Reader is a small, lightweight hand-held scanner which offers superior performance, excellent reliability and user-friendly comfort to create a more productive retail environment. Used in conjunction with HP Point of Sale System rp5000, the HP USB Bar Code Reader scans from industry-standard barcodes for fast and easy input of retail information. The HP USB Bar Code Reader offers fast performance with 100 scans per second in a lightweight durable design.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128 Full ASCII
  • Code 128
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Cable Type Included:
USB
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
6"
Width:
3.3"
Depth:
2.5"
Weight (Approximate):
5.15 oz
Miscellaneous
Package Contents:
  • USB Bar Code Reader
  • Scanner Stand
  • USB Cable
  • Point of Sale System Software
  • Documentation CD
  • Options Warranty Manual
Additional Information:

Nominal operating distance is 17 inch on 100% U.P.C./EAN symbols

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori

Laser Safety:

  • CDRH Class II
  • IEC Class 2
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0882780508637
UPC: 882780508637
EAN: 0882780508637
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The HP EY022AA Barcode Scanner is also known as EY022AA
