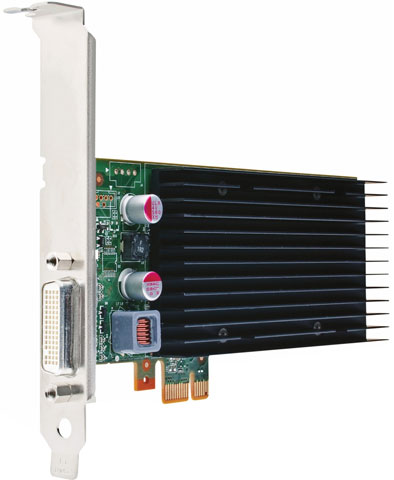

HP BV456AT Products

The HP BV456AT Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
HP - HP NVIDIA Quadro 300 Graphic Card - 512 MB DDR3 SDRAM - Low-profile - 2560 x 1600 Maximum Resolution - 520 MHz Core - 64 bit Bus Width
  • OpenGL 3.3 API offers a wide range of rendering, texture mapping functions, special effects and other improvements to enable truer output
  • NVIDIA® Quadro® 300 is known for its professional graphics that delivers rich-media quality and maneuvers complex graphics with perfection
  • 512 MB DDR3 SDRAM on-board memory renders detailed images in a flash
  • Power-efficient passive cooling keeps the board cool and ensures long-lasting usability
Read More
HP Parts Accessory Model Overview
Products and parts from HP.
HP BV456AT Products Overview

The NVIDIA NVS 300 PCIe Graphics Cards are low profile, dual-head graphics cards delivering next-generation multi-display capabilities to professional business and commercial applications.

If you require a graphics card for use with desktops in a telesales-center environment, or frequently analyze spreadsheets requiring the flexibility of dual-monitor displays, NVIDIA NVS 300 PCIe Graphics Cards are the ideal solution for you. Easily installed with a setup wizard, this controller integrates seamlessly with the Microsoft Windows environment. nView - NVIDIAs multi-display software, enhances your productivity in single or multi-display environments by allowing you to take advantage of features like Gridlines & Virtual Desktops (For e.g. 'Virtual Desktops' allows an end user to create up to 32 individual desktops)

The NVIDIA NVS 300 PCIe Graphics Cards are also GPU computing ready. They are capable of enhancing system performance if used in conjunction with applications that support GPU computing through DirectCompute, CUDA, or OpenCL frameworks.

The NVIDIA NVS 300 PCIe Graphics Cards include 512MB of DDR3 graphics memory. A minimum system memory configuration of 1GB is needed to support this card.

Technical Information
RAMDAC Speed:
400 MHz
Digital Signal:
Yes
API Supported:
  • DirectX 10.1
  • OpenGL 3.3
  • DirectCompute
  • OpenCL
Number of Monitors Supported:
2
Features:
  • CUDA Technology
  • Mosaic Technology
Processor & Chipset
Chipset Manufacturer:
NVIDIA
Chipset Line:
Quadro
Chipset Series:
NVS
Chipset Model:
300
GPU Clock:
520 MHz
Number of Stream Processors:
16
Memory
Standard Memory:
512 MB
Memory Speed:
790 MHz
Memory Technology:
DDR3 SDRAM
Bus Width:
64 bit
Interfaces/Ports
DMS-59 Port:
Yes
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Low-profile
Cooler Type:
Passive Cooler
Height:
2.6"
Length:
5.7"
Miscellaneous
System Requirements:

Operating System(s):

  • Windows 7 Home Basic
  • Windows 7 Home Premium
  • Windows 7 Professional Edition 32
  • Windows 7 Professional Edition 64
  • Windows 7 Ultimate Edition 32
  • Windows 7 Ultimate Edition 64
  • Windows Vista Business 64
  • Windows Vista Business 32
  • Windows Vista Home Basic 32
  • Windows XP Professional
  • Windows XP Home 32
Compatibility:

HP Compaq Business Desktop PCs:

  • 4000 Pro SFF
  • 6200 Pro MT
  • 6200 Pro SFF
  • 6000 Pro MT
  • 6000 Pro SFF
  • 6005 Pro MT
  • 6005 Pro SFF
  • dc7900 CMT
  • 8000 Elite SFF
  • 8000 Elite CMT
  • 8100 Elite SFF
  • 8100 Elite CMT
  • 8200 Elite SFF
  • 8200 Elite CMT

HP Point of Sale Systems:

  • rp5800
Platform Supported:
PC
Item Numbers
GTIN: 0726298531636, 0745449608249, 0886111690732
UPC: 726298531636, 745449608249, 886111690732
EAN: 0726298531636, 0745449608249, 0886111690732
UNSPSC: 43201401
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The HP BV456AT Products is also known as BV456AT
