HP A7K78UT#ABA Products

Part Number: A7K78UT#ABA

Model:

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Number of Processors Supported

Number of Processors Installed

Processor Manufacturer

Intel

Processor Type

Core i3

Product Description:

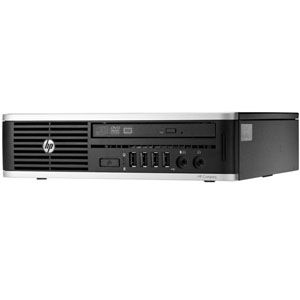

HP SignagePlayer mp8200 Desktop Computer - Intel Core i3 2nd Gen i3-2100 Dual-core (2 Core) 3.10 GHz - 4 GB RAM DDR3 SDRAM - 250 GB HDD - Ultra Slim - Windows Embedded Standard 7 - Intel HD 2000 DDR3 SDRAM - IEEE 802.11a/b/g/n - 135 W

Explore all HP Parts Accessories

Add to Quote

Overview

HP Parts Accessory Model Overview

Products and parts from HP.

HP A7K78UT#ABA Products Overview

The HP SignagePlayer mp8200 is an easily deployed digital signage solution pre-installed with an optimized Windows Embedded operating system and certified by leading software vendors for smooth and reliable playback of digital signage media.

Detailed Specs

Processor

Number of Processors Supported:

Number of Processors Installed:

Processor Manufacturer:

Intel

Processor Type:

Core i3

Processor Generation:

2nd Gen

Processor Model:

i3-2100

Processor Core:

Dual-core (2 Core)

Processor Speed:

3.10 GHz

Cache:

3 MB

Direct Media Interface:

5 GT/s

64-bit Processing:

Yes

Hyper-Threading:

Yes

Chipset

Chipset Manufacturer:

Intel

Chipset Model:

Q67 Express

Memory

Standard Memory:

4 GB

Maximum Memory Supported:

4 GB

Memory Technology:

DDR3 SDRAM

Memory Standard:

DDR3-1333/PC3-10600

Number of Total Memory Slots:

Storage

Total Hard Drive Capacity:

250 GB

Hard Drive Interface:

Serial ATA/300

Hard Drive RPM:

7200

Controllers

Controller Type:

Serial ATA/600

Display & Graphics

HDCP Supported:

Yes

Graphics Controller Manufacturer:

Intel

Graphics Controller Model:

HD 2000

Graphics Memory Technology:

DDR3 SDRAM

Graphics Memory Accessibility:

Shared

Graphics Controller Interface:

PCI Express x16

Network & Communication

Ethernet Technology:

Gigabit Ethernet

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

I/O Expansions

Number of Total Expansion Bays:

Number of External 5.25" Bays:

Number of Internal 2.5" Bays:

Number of Total Expansion Slots:

Number of Mini PCI Express Slots:

Interfaces/Ports

Total Number of USB Ports:

Number of USB 2.0 Ports:

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

VGA:

Yes

DisplayPort:

Yes

Software

Operating System Platform:

Windows

Operating System:

Windows Embedded Standard 7

Power Description

Input Voltage:

110 V AC
220 V AC

Maximum Power Supply Wattage:

135 W

Physical Characteristics

Form Factor:

Ultra Slim

Height:

2.6"

Width:

9.9"

Depth:

10"

Weight (Approximate):

6.80 lb

Miscellaneous

Package Contents:

SignagePlayer mp8200 Desktop Computer
AC Adapter

Certifications & Standards:

ACPI

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

80 Plus
WEEE
RoHS
ENERGY STAR
IT Eco Declaration

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0886112664541

UPC: 886112664541

EAN: 0886112664541

UNSPSC: 43211507
