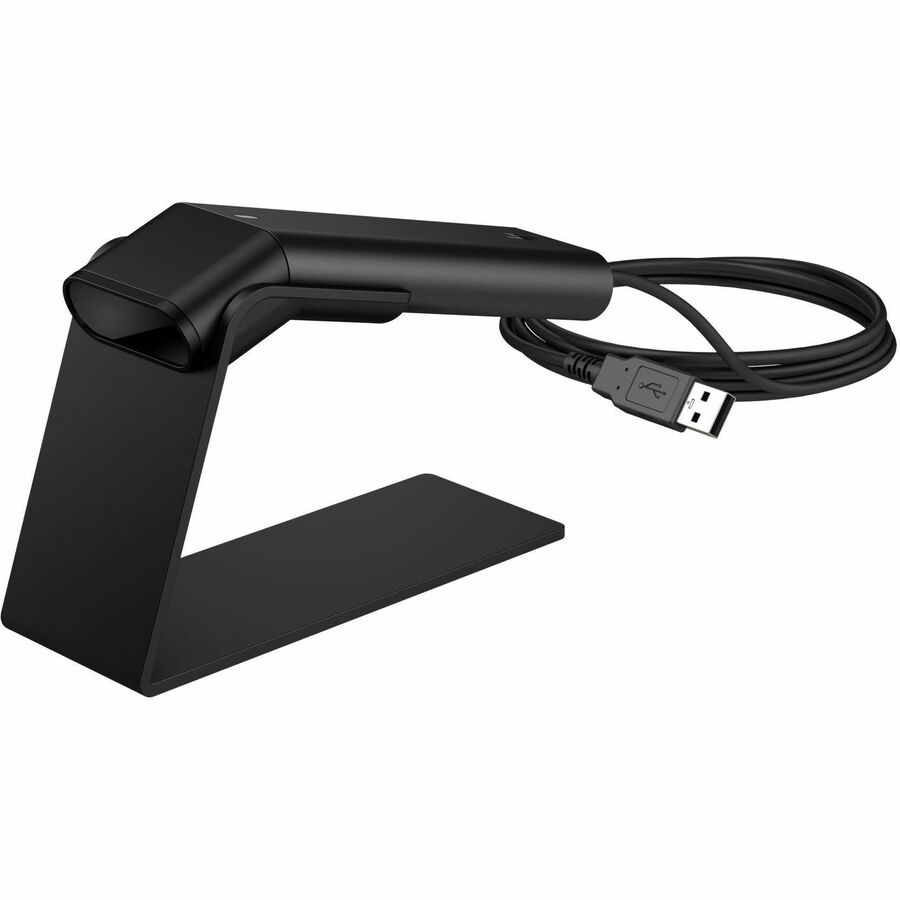

Full specifications (PDF)
Connectivity Technology:
Cable
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
- EAN-8
- EAN-13
- UPC-E
- UPC-A
- Code 128
- UCC/EAN 128 I2Of5
- ITF14
- ITF6
- Matrix 25
- CodaBar Code 39
- Code 93
- ISSN ISBN
- Industrial 25
- Standard 25
2D:
- Plessey Code 11
- MSI Plessey UCC/EAN
- Composite GS1
- Databar
- China Post 25
- Code 49
- Code 16K
- PDF417
- QR Code Micro
- QR Data
- Matrix Aztec
- Maxicode
- Chinese Sensible Code
- GM Code MicroPDF417
- Code One
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:
- 50 mm to 125 mm (1.9 in to 4.9 in) (5 mils) @ Code 39
- 35 mm to 250 mm (1.4 in to 9.8 in) (10 mils) @ Code 39
- 35 mm to 75 mm (1.4 in to 2.9 in) (10 mils) @ Data Matrix
- 15 mm to 115 mm (0.59 in to 4.5 in) (15 mils) @ Data Matrix
- 60 mm to 230 mm (2.4 in to 9.1 in) (13 mil) @ EAN-13
- 55 mm to 75mm (2.2 in to 2.9 in) (6.7 mils) @ PDF-417
- 20 mm to 145 mm (0.78 in to 5.7 in) (10 mils) @ PDF-417
- 25 mm to 80 mm (0.98 in to 3.1 in) (10 mils) @ QR Code
- 10 mm to 135 mm (0.4 in to 5.3 in) (15 mils) @ QR Code
Scan Pattern:
Linear
Scanning Distance:
9.80"
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
40°
Reading Angle (Pitch):
45°
Reading Angle (Roll):
360°
Minimum Print Contrast:
25%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
10 mil
Minimum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (DataMatrix):
15 mil
Minimum Element Resolution (PDF417):
6.7 mil
Maximum Element Resolution (PDF417):
10 mil
Illumination Type:
LED
Illumination Color:
White
