Full specifications (PDF)
Connectivity Technology:
Wireless

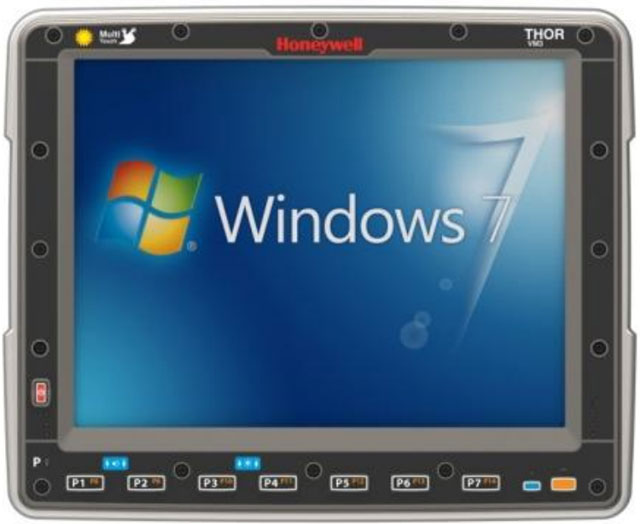

Honeywell VM3W2O1A1AUS1JA1 Data Terminal
Part Number:
VM3W2O1A1AUS1JA1
Model:
Thor VM3
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Model:
E3826
Processor Core:
Dual-core (2 Core)
Processor Type:
Atom
Processor Speed:
1.50 GHz
Memory
Standard Memory:
8 GB
Flash Memory:
128 GB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
XGA
Graphics Controller Manufacturer:
Intel
Display Screen Type:
LED
Touchscreen:
Yes
Touchscreen Type:
Resistive
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Headphone:
Yes
CANbus:
Yes
Built-in Devices
Built-in Devices:
- Speaker
- Microphone
- GPS Navigator
Power Description
Power Source:
Battery
Software
Operating System:
Windows 10
Physical Characteristics
Weight (Approximate):
6.65 lb
Miscellaneous
Certifications & Standards:
- Wi-Fi Certified
- CCX Certified
- EN 55024:2010
- MIL-STD-810F
- SAE-J1455
- IP66
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Antennas (6)
- Cables, Connectors, and Adapters (18)
- Carrying and Protective Accessories (2)
- Computer Accessories (3)
- Docks and Cradles (9)
- General Software (6)
- Honeywell Barcode Scanner (1)
- Keyboards and Front Panels (6)
- Miscellaneous (1)
- Mobile Computer Accessories (5)
- Motorola RFID Antenna (4)
- Mounting Hardware and Stands (23)
- Power Device (3)
- Ring Barcode Scanner (1)
- Scanner Accessories (15)
- Service Contract (1)
- Signature Capture Pad Accessories (6)
- Spare Parts (8)
- Stylus (3)
Recommended Accessories for Model: Honeywell VM3W2O1A1AUS1JA1 Data Terminal
Top Antennas Purchased With Honeywell VM3W2O1A1AUS1JA1
-
$404.92 -
Honeywell VM1288ANTENNA AntennaVM:GPS Antenna Kit, 14 ft (4M) adhesive mount$278.08 -
Honeywell VM2276ANTENNA Motorola AntennasHoneywell, Accessory, Set Of Two VM1A, VM2, VM3 Dual Band WLAN Whip Antennas - Attach Directly To ComputerIn Stock$187.08
Top Cables, Connectors, and Adapters Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VM1052CABLE Cables, Connectors, and AdaptersCable, USB Y, D9 Male to USB Type A plug, 6 Feet (Host) and USB Type A Socket 0.5 Feet (Client).In Stock$98.74 -
Honeywell VM1078CABLE Cables, Connectors, and AdaptersCable, Power Adapter, Compatible with Thor AC Power Supply.In Stock$116.63 -
Honeywell VM1077CABLE Cables, Connectors, and AdaptersAdapter cable for VX6/VX7 DC power cable$347.08
Top Carrying and Protective Accessories Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VM3512LCDFILM AccessoryVM3 RESISTIVE TOUCH SCREEN PROTECTIVE FILM WITH ANTI-GLARE COATING, 10 PACKIn Stock$138.10 -
Honeywell VM3513LCDFILM Carrying and Protective AccessoriesVM3 PCAP TOUCH SCREEN PROTECTIVE FILM WITH ANTI-GLARE COATING, 10 PACK$197.37
Top Computer Accessories Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell 9000160KEYBRD Signature PadAccessory, Honeywell Keyboard, Rugged, Windows Laptop Style, 95 Keys, USB Interface, Integrated Two Button Mouse Keypad.$692.23 -
LXE VM2013BRKTKIT AccessoryRAM MOUNT KIT FOR VM2, KEYBOARD AND COMPUTER, ROUND BASE, LONG ARM 13IN, 330MM, BALL FOR VEHICLE DOCK REAR, KEYBOARD MOUNT$646.38 -
Honeywell 9000070CABLE Cables, Connectors, and AdaptersCABLE, PS2 TO USB ADAPTER CABLE FOR KEYBOARDS (D9M - D9F)$181.32
Top Docks and Cradles Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VM1001VMCRADLE AccessoryHoneywell VM series vehicle dock. Standard Dock with Power Cable Dock with integral power supply, 10V DC to 60V DC, DC power cable included. Supports all Thor VM series models. Order VM3055FUSE if an in-line fuse kit is required. Most vehicles provide a spare fuse location in the vehicle fuse panel.In Stock$694.69 -
Honeywell VM1002VMCRADLE Docks and CradlesVM1/VM2 DOCK, DC POWER CABLE NOT INCLUDED, INCLUDES D BALL FOR DOCK (ORDER IF REUSING VX8/VX9 POWER CABLE AND RAM MOUNT). Non-Cancelable/Non-Returnable.$1,231.35 -
Honeywell VM2001BRACKET Docks and CradlesMOUNTING ADAPTER PLATE FOR VM2, ATTACHES TO DOCK FOR KEYBOARD USE, THIS ITEM IS INCLUDED IN VM2 KITS. Non-Cancelable/Non-Returnable.$209.40
Top General Software Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VM3W602RECOV SoftwareVM3 WIN 7 RECOVERY DVD - ENG$41.45 -
Honeywell VM3W603RECOV SoftwareVM3 Win 8 Recovery DVD$27.73 -
Honeywell VM3W604RECOV SoftwareVM3 Win 7 Recovery DVD - Simpl ified Chinese$25.47
Top Honeywell Barcode Scanner Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell 8651110RINGSCR Barcode ScannerBTmodule ringscnnr (SE955I) battery 2 hand/wrist straps (lg/sm)Please Call for Pricing or to Purchase
Top Keyboards and Front Panels Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell 9000160KEYBRD Signature PadAccessory, Honeywell Keyboard, Rugged, Windows Laptop Style, 95 Keys, USB Interface, Integrated Two Button Mouse Keypad.$692.23
-
Honeywell 9000161KEYBRD Signature PadTHOR NUMERIC KEYPAD, 21 KEY, USB$554.58 -
Honeywell VM3530FRONTPNL Signature PadVM3 FRONT PANEL: RESISTIVE, STANDARD TEMP$864.95
Top Miscellaneous Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Hand Held VM1009BRKTKIT ProductsRAM MOUNT KIT PLATE BASE LONG ARM 13IN BALL FOR V-DOCK REAR$465.18
Top Mobile Computer Accessories Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VM1510STYLUS StylusVM1/THOR:Stylus Kit w/Tethers, 5 Pack$98.85 -
Honeywell 9000092CABLE AccessoryAC POWER CABLE, C14 TYPE, ITALY 3-PIN. Non-Cancelable/Non-Returnable.$27.50 -
Honeywell 9000093CABLE Cables, Connectors, and AdaptersAC POWER CABLE, C14 TYPE, SWITZERLAND 3-PIN. Non-Cancelable/Non-Returnable.$159.69
Top Motorola RFID Antenna Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VM2276ANTENNA Motorola AntennasHoneywell, Accessory, Set Of Two VM1A, VM2, VM3 Dual Band WLAN Whip Antennas - Attach Directly To ComputerIn Stock$187.08
-
Honeywell VM3278ANTENNA Motorola AntennasTHOR, WWAN ANT KIT, LTE, 14 FT, MAGNETIC MNT$122.29 -
Honeywell VM3279ANTENNA Motorola AntennasTHOR, WWAN ANT KIT, LTE, 14 FT, ADHESIVE MNT$24.29
Top Mounting Hardware and Stands Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VX89A031RAMBALL Mounting Hardware and StandsBall D-Size 2.25 Inch Flat 2.5 Inch Clamp Base (for the VX8 and VX9)In Stock$115.23 -
Honeywell VX89A501RAMARM Mounting Hardware and StandsRAM Medium Arm (215mm for D Size 2.25 Inch Balls - 215mm=8.5 Inch) for the VX8 and VX9In Stock$187.94 -
Honeywell VX89A503RAMARM Mounting Hardware and StandsRAM Long Arm (330mm - 13 Inch, for D-Size 2.25 Inch Balls) for the VX8/9$308.00
Top Power Device Purchased With Honeywell VM3W2O1A1AUS1JA1
-
LXE VX89351PWRSPLY Power DeviceScreen blanking switch, switchbox, universal for VX8/VX9$160.01 -
Honeywell VM1301PWRSPLY Power DeviceTHOR:AC/DC power supply with US cord$149.18 -
Honeywell 9000313PWRSPLY Power DevicePower Supply DC 50, 150V, Trucks, 60W, For use with Thor VM1In Stock$919.32
Top Ring Barcode Scanner Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell 8651110RINGSCR Barcode ScannerBTmodule ringscnnr (SE955I) battery 2 hand/wrist straps (lg/sm)Please Call for Pricing or to Purchase
Top Scanner Accessories Purchased With Honeywell VM3W2O1A1AUS1JA1
-
LXE VX89A504RAMARM AccessoryRAM Medium Arm (145mm, 5.7 Inch, C-Size 1.5 Inch Balls) for the VX8/9In Stock$86.38 -
Honeywell VX89531PLATE AccessoryRAM Metal Table Stand (for the VX8/9)$486.95 -
Honeywell VM1001VMCRADLE AccessoryHoneywell VM series vehicle dock. Standard Dock with Power Cable Dock with integral power supply, 10V DC to 60V DC, DC power cable included. Supports all Thor VM series models. Order VM3055FUSE if an in-line fuse kit is required. Most vehicles provide a spare fuse location in the vehicle fuse panel.In Stock$694.69
Top Service Contract Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Intermec ICP-SFT1 Service ContractIntermec Annual software maintenance - 1 Year - Service - Technical - Electronic Service$59.15
Top Signature Capture Pad Accessories Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell 9000160KEYBRD Signature PadAccessory, Honeywell Keyboard, Rugged, Windows Laptop Style, 95 Keys, USB Interface, Integrated Two Button Mouse Keypad.$692.23
-
Honeywell 9000161KEYBRD Signature PadTHOR NUMERIC KEYPAD, 21 KEY, USB$554.58
-
Honeywell VM3530FRONTPNL Signature PadVM3 FRONT PANEL: RESISTIVE, STANDARD TEMP$864.95
Top Spare Parts Purchased With Honeywell VM3W2O1A1AUS1JA1
-
LXE VX89A041RAMBALL Spare PartsBall (C-Size 1.5, 2.5 Round Base)$66.28 -
Honeywell VM1002BRKTKIT Spare PartsRAM mount kit:round base,med. arm 8.5 /215mm ball for vehiclIn Stock$320.52 -
LXE VM1003BRKTKIT Spare PartsRAM mount kit:round base, long arm,13" (330mm),ball for dock$336.63
Top Stylus Purchased With Honeywell VM3W2O1A1AUS1JA1
-
Honeywell VM1510STYLUS StylusVM1/THOR:Stylus Kit w/Tethers, 5 Pack$98.85
-
Honeywell VM3511STYLUS StylusVM3 PCAP STYLUS KIT WITH TETHERS, 5 PACK$109.16 -
Honeywell 50122544-001FRE StylusVM3, STYLUS, HLDR, STD$15.05
