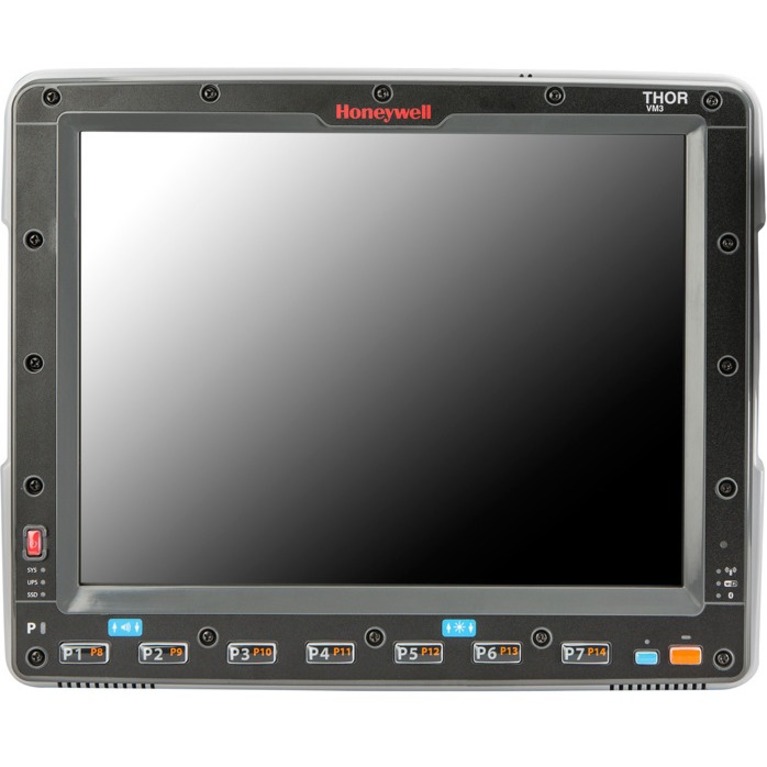

Honeywell VM3W2F5A1BUS1EA1 Data Terminal

The Honeywell VM3W2F5A1BUS1EA1 Data Terminal has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Thor VM3 Vehicle-Mounted Computer - Outdoor Pcap, 802.11a/b/g/n, Bluetooth, EXT WLAN Antenna Connections, 4GB RAM, 64GB Flash, UPS B, Windows 10, US. Interface cables and charging cradle sold separately. Dock with Integral power supply (Part# VM3001VMCRADLE).

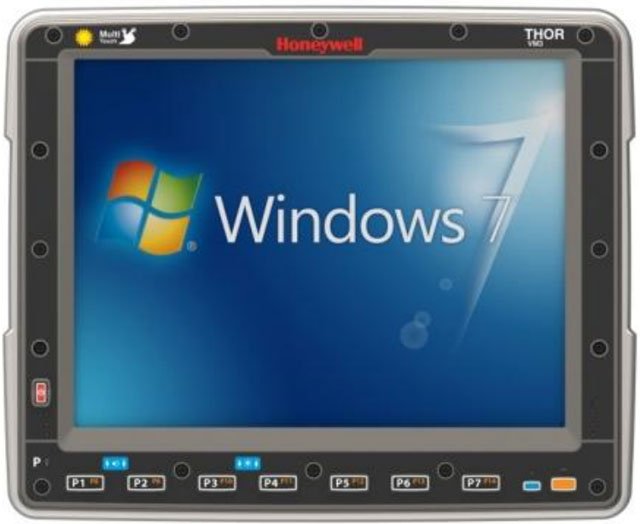

Honeywell VM3 Data Terminal Model Overview
Designed for use in the toughest distribution center environments, manufacturing facilities and freight operations, the Honeywell Thor™ VM3 is the industry’s most capable full-size vehicle-mounted mobile computer, delivering unmatched operational efficiencies.The Thor VM3 computer offers breakthrough features designedto eliminate downtime and maximize capital investment. The Smart Dock feature delivers immediate savings on support and maintenance costs while maximizing efficiency by enabling users to dynamically shift computers as vehicles fail or workloads change. The field-replaceable front panel allows enterprises to minimize investments in spare parts by substituting spare front panels for spare computers, and saves valuable time and maintenance costs by leveraging in-house support staff to service the most common breaking point. With the Thor VM3 computer, you gain the compatibility you need to upgrade to next-generation Microsoft® Windows® operating systems and the power to take advantage of the latest security and productivity-enhancing features and functionality. The Thor VM3 computer supports multiple Windows-based operating systems, so integration and application development are simple as business needs grow. For enterprises currently running on the Windows CE operating system, the Thor VM3 computer offers easy implementation and deployment into existing and future IT infrastructures. With memory expandable up to 4 GB RAM and 64 GB solid-state disk, the Thor VM3 computer can run powerful programs and applications to maximize efficiencies in activities such as case picking, truck loading, putaway and replenishment - giving workers real-time access to information anywhere it is needed. Whether indoors, outdoors, in a warehouse, on a shop floor or in intermodal facilities, the Thor VM3 computer enables enterprises to choose the options needed to maximize efficiencies in the most demanding environments. The Thor VM3 computer supports standard resistive touchscreen or optional capacitive touchscreen for multi-touch applications. A WWAN radio option enables use in expansive outdoor operations where a Wi-Fi network can’t be deployed. The Thor VM3 computer is built to withstand extreme temperatures and supports an optional screen defroster for cold storage and freezer environments and a brighter outdoor display for outdoor applications. An optional screen blanking feature restricts driver access to the screen when the vehicle is in motionto comply with the highest safety standards.

Features and Benefits

  • Smart Dock feature enables mounting and removal in seconds, saving on support and maintenance costs while maximizing efficiency by allowing dynamic shifting of computers as workloads change.
  • A user field-replaceable front panel reduces maintenance costs by allowing users to service the most wear- and abuse-prone components themselves rather than returning them to the repair depot.
  • Built-in ignition control eliminates the maintenance expense and lost productivity caused by a dead vehicle battery.
  • The Intel® x86 architecture and Dual Core 1.5 GHz processor enable superior performance in data-intensive applications.
  • With support for multiple versions of Windows (including Windows CE), the Thor VM3 easily integrates into existing IT infrastructures while enabling an upgrade path for the future.
  • The Thor VM3 full-size vehicle-mounted computer delivers unmatched operational efficiencies in the toughest distribution center environments.
Honeywell VM3W2F5A1BUS1EA1 Data Terminal Overview

We designed the Thor™ VM3 computer for the toughest distribution center environments, manufacturing facilities and freight operations. In fact, it's the industry's most capable full-size vehicle-mounted mobile computer. The VM3 computer combines a 30.73 cm (12.1 in) display with breakthrough innovations that deliver rapid value for your workflows.

Smart Dock

Lets you mount and remove the VM3 in seconds, saving on support and maintenance costs while maximizing efficiency.

Field-Replaceable Front Panel

Reduces maintenance cost by allowing you to service the most wear- and abuse-prone components yourself.

Ignition Control

Eliminates the maintenance expense and lost productivity caused by a dead vehicle battery.

Powerful, Versatile Platform

The Intel® x86 architecture and Dual Core 1.5GHz processor enable superior performance with data-intensive applications.

Simple Integration and Deployment

Supports multiple Microsoft® Windows®-based operating systems, so integration and application development are simple.

O/S Upgrade Path

Upgradeable for customers who need backward compatibility with their Windows® CE installed base now, but want to upgrade in the future.

Versatile

Can be deployed in multiple application environments - from dry goods to cold storage, indoor or outdoor, in-premise or in intermodal facilities.

Rugged

Backed by a durable IP66-rated design, the Thor VM3 computer is engineered to withstand the shock, vibration and ruggedness demands only a forklift can create.

Optional Screen Blanking

Restricts driver access to the screen when the vehicle is moving to comply with the highest safety standards.

Product Details

Disruptions in the supply chain are costly. Are you prepared to adapt? Organizations that are have a significant competitive advantage. Equipped with the Thor VM3 Vehicle-Mount Computer, you'll be ready.

  • The Smart Dock delivers immediate savings on support and maintenance costs while maximizing efficiency - undock the unit from one forklift and redock it on another vehicle in seconds, dynamically shifting workers and computers as the workload changes.
  • The field-replaceable front panel reduces your capital and maintenance cost by integrating the two most wear and abuse prone components, the keyboard and touchscreen, into a user-replaceable part. A screwdriver is all you need. This feature also reduces capital costs by letting you substitute spare front panels for spare computers.
  • The ignition control allows you to set power management preferences to save startup time and extend vehicle battery life.

The Thor VM3 computer supports multiple Windows®-based operating systems, so integration and application development are simple as your business needs grow. Case picking, truck loading, putaway and replenishment... the VM3 computer equips you to get the job done more efficiently.

And the VM3 computer lets you choose the options you need to maximize efficiencies in the most demanding environments - indoors, outdoors, in a warehouse, on a shop floor, or in intermodal facilities.

Technical Information
Connectivity Technology:
Wireless
Processor & Chipset
Processor Manufacturer:
Intel
Processor Model:
E3826
Processor Core:
Dual-core (2 Core)
Processor Type:
Atom
Processor Speed:
1.50 GHz
Memory
Standard Memory:
4 GB
Flash Memory:
64 GB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
XGA
Graphics Controller Manufacturer:
Intel
Display Screen Type:
LED
Touchscreen:
Yes
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Headphone:
Yes
CANbus:
Yes
Built-in Devices
Built-in Devices:
  • Speaker
  • Microphone
  • GPS Navigator
Power Description
Power Source:
Battery
Software
Operating System:
Windows 10
Physical Characteristics
Weight (Approximate):
6.65 lb
Miscellaneous
Certifications & Standards:
  • Wi-Fi Certified
  • CCX Certified
  • EN 55024:2010
  • MIL-STD-810F
  • SAE-J1455
  • IP66
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211505
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Honeywell VM3W2F5A1BUS1EA1 Data Terminal is also known as HSM-VM3W2F5A1BUS1EA1 or VM3W2F5A1BUS1EA1.
