Full specifications (PDF)
Connectivity Technology:
Wireless
Honeywell VM3W2F2A1AUS04A Data Terminal
Part Number:
VM3W2F2A1AUS04A

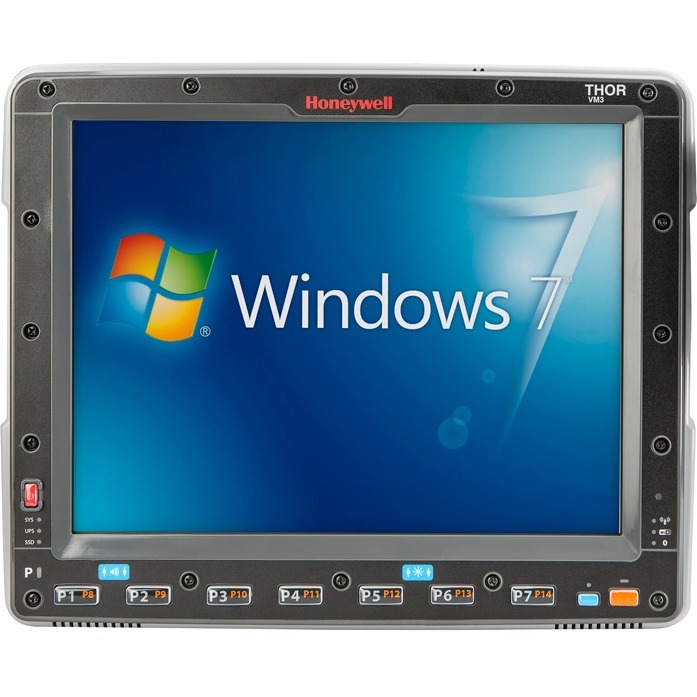

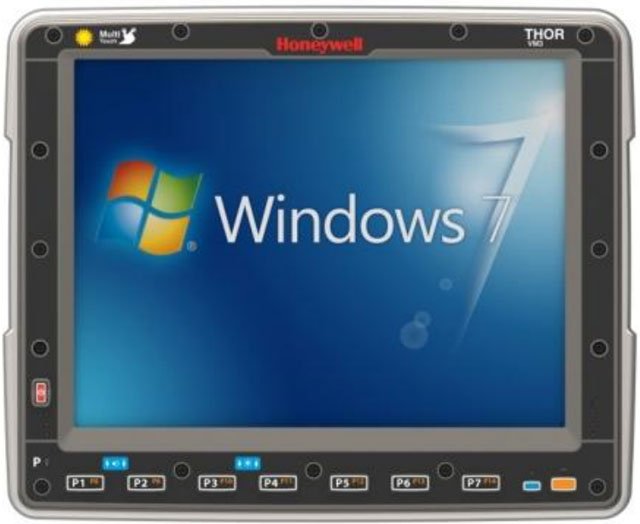

Honeywell VM3 Data Terminal Model Overview
The Honeywell Thor VM3 Vehicle-Mounted Computer is engineered for peak performance in the most demanding environments, including distribution centers and manufacturing facilities. This robust full-size computer significantly enhances operational efficiencies, minimizing downtime and maximizing your capital investment. Its cutting-edge Smart Dock feature facilitates quick mounting and removal, allowing for seamless transitions as workload demands shift. The device is built to withstand extreme exposure, ensuring reliability whether indoors or outdoors.
Key Features:
Specifications:
Key Features:
- Smart Dock: Enables quick computer mounting and removal.
- User field-replaceable front panel: Lowers maintenance costs by allowing in-house servicing.
- Intel® x86 Dual Core 1.5 GHz processor: Ensures top-notch performance for data-intensive applications.
- Multiple OS Support: Easily integrates with existing IT infrastructure while facilitating future upgrades.
Specifications:
- Mechanical Dimensions: 318 x 260 x 62 mm
- Weight: 3.0 kg (computer); 1.5 kg to 1.1 kg (dock, depending on type)
- Operating Temperature: -30°C to +50°C
- Processor: 1.5 GHz Dual Core Intel Atom E3826
- Memory: 4 GB DDR3; expandable storage options available
- Display: 12.1 in XGA LED backlit; optional touch panel configurations
- Wireless Connectivity: Optional WWAN and WLAN capabilities
- IP66 Certification: Moisture and particle resistance
Honeywell VM3W2F2A1AUS04A Data Terminal Overview
Designed for use in the toughest distribution center environments, manufacturing facilities and freight operations, the Thor™ VM3 is the industry's most capable full-size vehicle-mounted mobile computer, delivering unmatched operational efficiencies.
Technical Information
Processor & Chipset
Processor Type:
Atom
Processor Speed:
1.50 GHz
Memory
Standard Memory:
4 GB
Flash Memory:
64 GB
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
XGA
Display Screen Type:
LED
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
Internal
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Headphone:
Yes
CANbus:
Yes
Built-in Devices
Built-in Devices:
- Speaker
- Microphone
- GPS Navigator
Software
Operating System:
Windows 7
Physical Characteristics
Height:
10.3"
Width:
12.5"
Depth:
2.4"
Weight (Approximate):
6.65 lb
Miscellaneous
Certifications & Standards:
- CE
- Wi-Fi Certified
- CCX Certified
- EN 55024:2010
- MIL-STD-810F
- SAE-J1455
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0783555010396
UPC:
783555010396
EAN:
0783555010396
UNSPSC:
43211505
