Honeywell VM2W2A1A1BUS01A Data Terminal
Part Number:
VM2W2A1A1BUS01A
Model:
Thor VM2

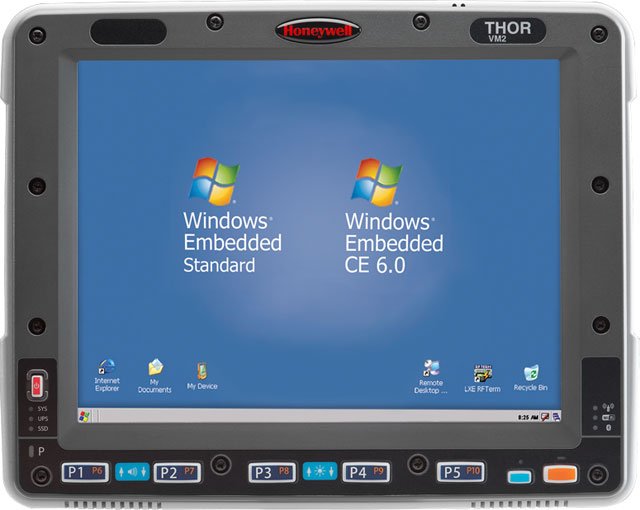

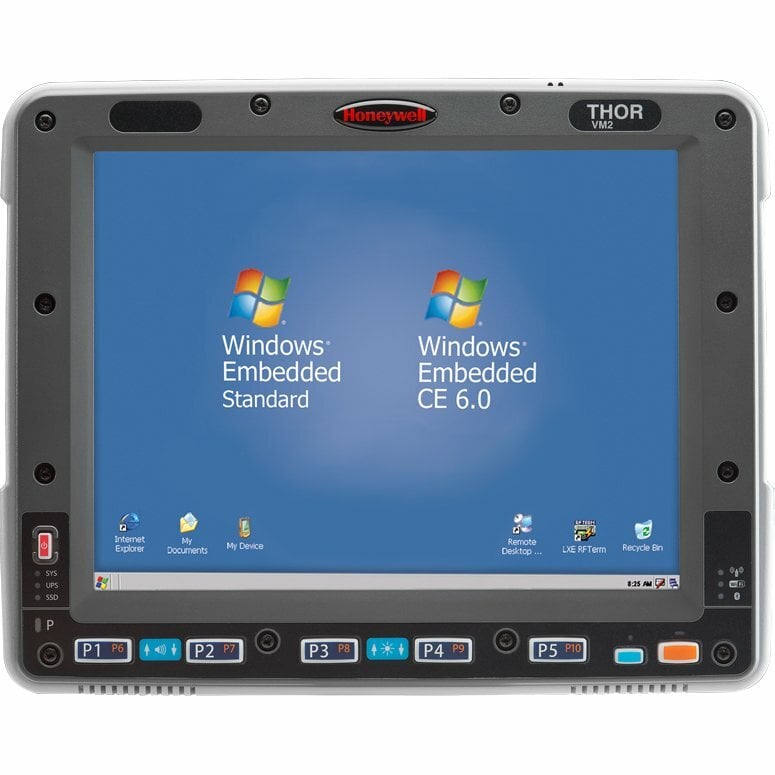

Honeywell VM2 Data Terminal Model Overview
Ideally suitable for warehouse, port or yard process automation, the Honeywell Thor VM2 introduces an additional form factor option that grants greater flexibility. The flexibility of the VM2 is further emphasized by its 9.7" XGA display, programmable multi-function keys, and WLAN and WWAN connectivity. Available with both Microsoft Windows CE 6.0 and Windows Embedded Standard 2009 operating systems and compatible with many industry standard terminal emulation and web browser applications including the popular Honeywell RFTerm™ TE, the Thor VM2 is built for simple and easy application development and system integration.
Honeywell VM2W2A1A1BUS01A Data Terminal Overview
Solidifying Honeywell's position as the leader in vehicle-mount computing, the Thor VM2 builds on the best-in-class Thor VM1 that was created specifically to address the unique challenges of supply chain applications.
Ideally suitable for warehouse, port and yard process automation, the Thor VM2 introduces an additional form factor option granting greater flexibility which is emphasized by its 9.7" XGA display, programmable multi-function keys, and WLAN and WWAN connectivity. Available with both Microsoft Windows CE 6.0 and Windows Embedded Standard 2009 operating systems and compatible with many industry standard terminal emulation and web browser applications including the popular Honeywell RFTerm™ TE, the Thor VM2 is built for simple and easy application development and system integration.
Comparatively equipped to reduce operator downtime and capital investment, the Thor VM2 leverages the same platform and innovative features as the well-known Thor VM1 vehicle-mount computer. Delivering laptop-like simplicity, the Smart Dock capability allows for the separation of the computer from the power supply empowering users to seamlessly migrate from vehicle to vehicle and reducing the required number of computers. Further, the field-replaceable front panel enables singletool touch screen repairs, which significantly minimizes downtime and maintenance costs resulting from wear and tear at the most common breaking point. Lastly, the power management settings that accompany the ignition control feature virtually eliminate dead vehicle batteries and the subsequent productivity losses.
Most supply chain models encompass many different activities, resources and functions and each stage in the process demands consistency and the ability to respond, real-time, to issues as they occur. To that end, the Thor VM2 vehicle-mount computer offers businesses a comprehensive route to dramatic operational improvements.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Atom
Processor Speed:
1.60 GHz
Memory
Standard Memory:
2 GB
Flash Memory:
4 GB
Display & Graphics
Screen Size:
9.7"
Graphics Modes:
XGA
Display Screen Type:
LED
Touchscreen:
Yes
Display Resolution:
1024 x 768
Network & Communication
Antenna Form Factor:
External
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Serial:
Yes
USB:
Yes
Headphone:
Yes
CANbus:
Yes
Built-in Devices
Built-in Devices:
- Speaker
- Microphone
Software
Operating System:
Windows Embedded Standard 2009
Physical Characteristics
Height:
8.4"
Width:
10.6"
Depth:
2.1"
Weight (Approximate):
4.85 lb
Miscellaneous
Certifications & Standards:
- IP66
- EN 55024:1998
- MIL-STD-810F
- SAE-J1455
- CCX
- CE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0984537686596
UPC:
984537686596
EAN:
0984537686596
UNSPSC:
43211505
