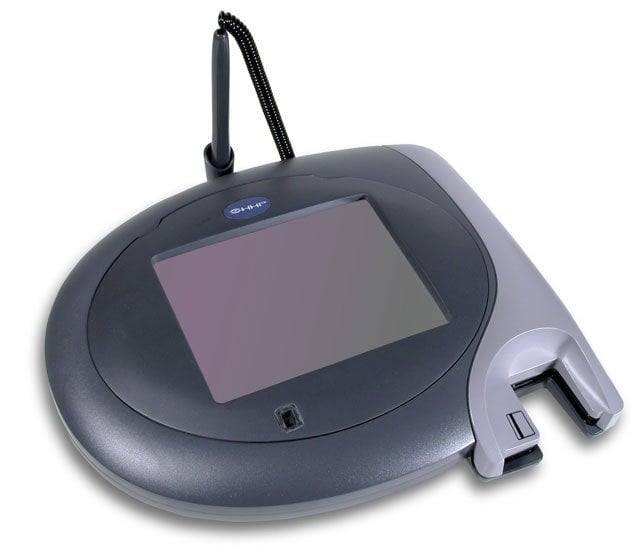

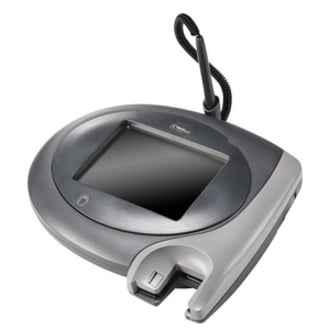

Honeywell TT8810-MEK4110 Signature Pad

The Honeywell TT8810-MEK4110 Signature Pad has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell TT8810 - Signature Capture Pad Kit, Monochrome Display, USB & Ethernet interfaces, Signature Capture, Virtual Pinpad, Hybrid MSR/Smart Card Reader for Tracks 1,2 and 3, 12 Foot Interface Cable-42206255-01, Advantage TT8800 SDK-3120579-01, Start-Up Guide and 110V Power Supply)

Need a different version? See all Honeywell TT8810 Signature Pads

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell TT8810-MEK4110 Signature Pad
Honeywell TT8810-MEK4110 Signature Pad Honeywell TT8810-MEK4110 Signature Pad
Honeywell TT8810-MEK4110 Signature Pad
Honeywell TT8810-MEK4110 Signature Pad
Full specifications (PDF)
Honeywell TT8810 Signature Pad Model Overview
The Honeywell TT8810 features a new touch screen, stylus, and screen protector system, Honeywell has enhanced the usability and extended the useful life of the product. Innovative and full featured, the TT8810 can process credit and debit payments, access smart cards, capture signatures and present electronic forms, advertising and other information to your customers. The TT8810 comes standard with features that cost extra with other terminals. USB, 16 MB of Ram, and a 3-track magnetic stripe/smart card reader are standard.
Honeywell TT8810-MEK4110 Signature Pad Overview

Hand Held Products offers the Transaction Team 8810 Transaction Terminal. This powerful, ergonomic, and versatile device is at home at the point of sale, service desk, or anywhere high function applications are needed. POS payments, EBT, signature capture, and in-lane, targeted communications are enabled by the Transaction Team 8810 fast processor and proven development environment.

Full specifications (PDF)
Technical Information
Encryption:
  • Triple DES
  • DES
Signature Capture:
Yes
Pin Pad:
Yes
Processor & Chipset
Processor Manufacturer:
Intel
Memory
Standard Memory:
16 MB
Flash Memory:
4 MB
Display & Graphics
Display Color:
Monochrome
Display Screen Type:
LCD
Touchscreen:
Yes
Screen Resolution:
320 x 240
Interfaces/Ports
USB:
Yes
Built-in Devices
Built-in Devices:
  • Magnetic Stripe Reader
  • Smart Card Reader
Power Description
Input Voltage:
120 V AC
Physical Characteristics
Height:
3"
Width:
9.8"
Depth:
8.3"
Weight (Approximate):
2.40 lb
Miscellaneous
Package Contents:
  • TT8810 Transaction Terminal
  • True Finger Touch
  • Signature Capture
  • Virtual PIN Pad
  • Hybrid MSR/Smart Card Reader for Tracks 1, 2, & 3
  • ISO7816 Compliant IC Cards Ethernet
  • 12' USB Cable
  • Screen Protector System
  • Start Up Guide
  • Power Supply
Additional Information:
  • Touch Pad Resolution: 903 x 1238 ppi
  • Magnetic Stripe Reader: Bi-directional 3 Track Reader
Certifications & Standards:
  • FCC Class A
  • CE (LVD)
  • UL 1950
  • CSA 22.2
  • EMV Level 1
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211720
Questions? Get help from
a POS Expert!

What is your POS application?

The Honeywell TT8810-MEK4110 Signature Pad is also known as HHP-TT8810MEK4110 or TT8810MEK4110.
