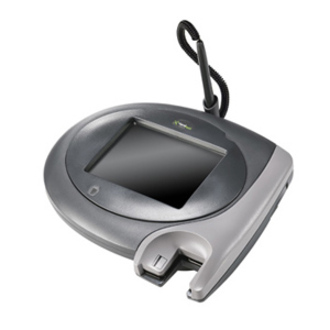

Honeywell TT8810-CEK4110 Signature Capture Pad


0.0

(No reviews)

Be the first to

Write a Review
Honeywell TT8810 - Signature Capture Pad Kit, Color LCD, USB & Ethernet interfaces, Virtual Pin Pad, Hybrid MSR-Smart Card Reader for Tracks 1,2 and 3, ISO7816 Compliant IC Cards, 12 ft. Interface Cable, Screen Protector System, Start Up Guide and 110V Power supply
This state-of the-art terminal offers unrivaled power, versatility, and value.

The Honeywell TT8810 features a new touch screen, stylus, and screen protector system, Honeywell has enhanced the usability and extended the useful life of the product. Innovative and full featured, the TT8810 can process credit and debit payments, access smart cards, capture signatures and present electronic forms, advertising and other information to your customers. The TT8810 comes standard with features that cost extra with other terminals. USB, 16 MB of Ram, and a 3-track magnetic stripe/smart card reader are standard.

Technical Information

  • Processor: Intel 32-bit
  • Display: Color - 320 x 240 - Touch Screen LCD
  • Signature Capture: Yes
  • Pin Pad: Yes
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Security:
    • PIN Encryption
    • Master/Session Support
    • DUKPT Support
    • DES 64 and 128 bit
    • Single and Triple DES
    • Secure Key Injection
    • Tamper Response
    • Dedicated Security Processor
    • File Authentication
  • Interfaces/Ports: USB
  • Input Voltage: 110 V AC - Power Supply
  • Network Connectivity: Ethernet Card

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Transaction Team
  • Product Name: TT8810 Transaction Terminal

Physical Characteristics

  • Dimensions: 2.95" (75mm) x 9.75" (248mm) x 8.25" (210mm)
  • Weight: 2.4 lb (1.09 kg)

Included Features

  • Included Features:
    • Magnetic Stripe Reader
    • Smart Card Reader

Other

  • Package Contents:
    • TT8810 Transaction Terminal
    • True Finger Touch
    • Signature Capture
    • Virtual PIN Pad
    • Hybrid MSR/Smart Card Reader for Tracks 1, 2, & 3
    • ISO7816 Compliant IC Cards Ethernet
    • 12' Interface Cable
    • Screen Protector System
    • Start Up Guide
    • PC USB Cable
    • Power Supply
  • Additional Information:
    • Touch Pad Resolution: 903 x 1238 ppi
    • Magnetic Stripe Reader: Bi-directional 3 Track Reader

Agency Approvals

  • Agency Approvals:
    • FCC Class A
    • CE (LVD)
    • UL 1950
    • CSA 22.2
    • Visa PED
    • EMV Level 1

Warranty

  • Manufacturer Warranty: 1 Year(s)

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Honeywell TT8810 Signature Capture Pad
Protect Your Product

The Honeywell TT8810-CEK4110 is also known as HHP-TT8810CEK4110 or TT8810CEK4110 .
