Honeywell SD62-S001 Accessory

Part Number: SD62-S001
Model: SD62
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Bluetooth Standard
Bluetooth 2.1
ISM Band
Yes
UNII Band
No
ISM Maximum Frequency
2.40 GHz

Product Description:

  Bluetooth Base Station. Cables sold separately.
Explore all Intermec SD62 Accessories
Add to Quote
Honeywell SD62-S001 Accessory
Honeywell SD62-S001 Accessory
Honeywell SD62-S001 Accessory
Honeywell SD62-S001 Accessory
Honeywell SD62-S001 Accessory Honeywell SD62-S001 Accessory Honeywell SD62-S001 Accessory Honeywell SD62-S001 Accessory

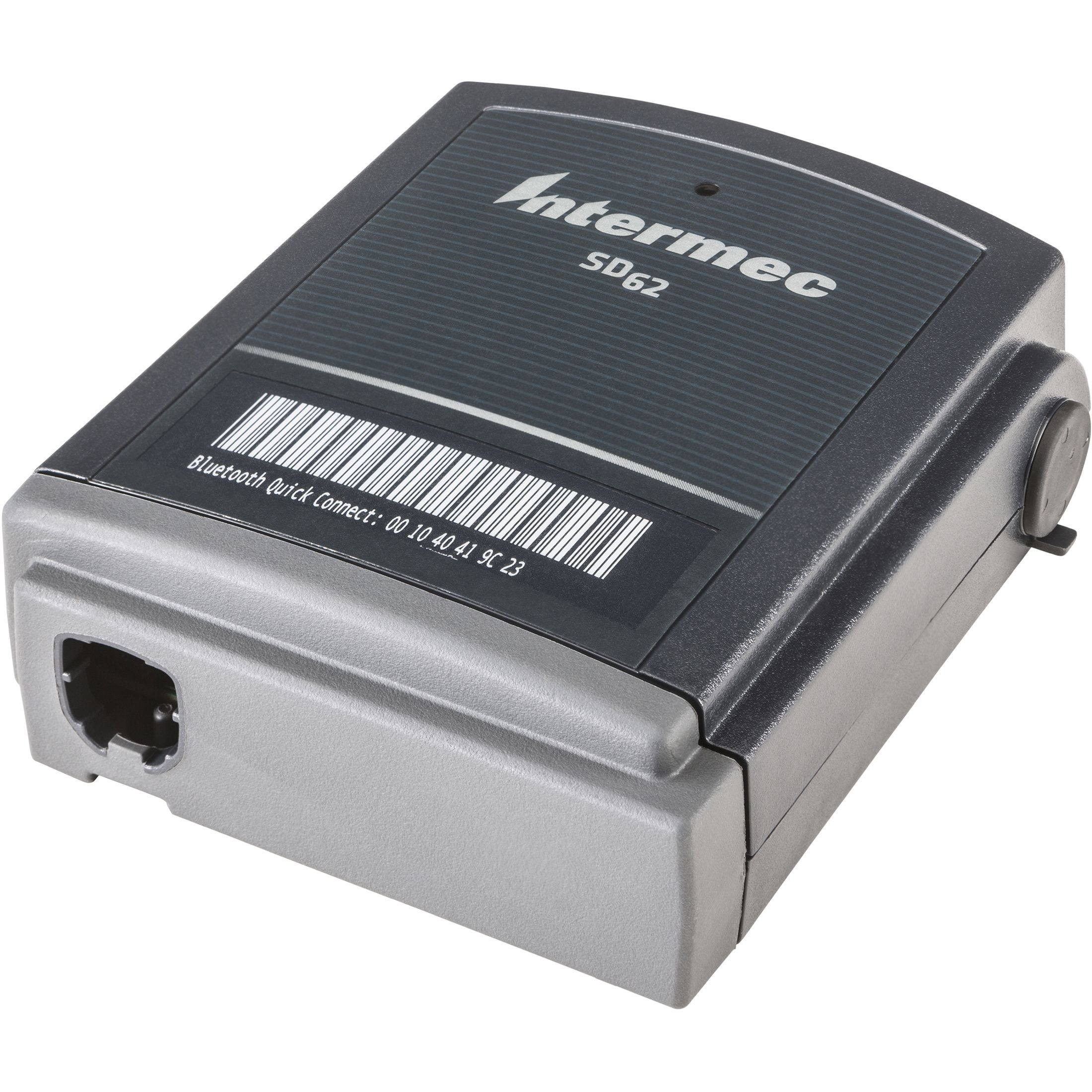

Intermec SD62 Accessory Model Overview

With the Intermec SD62 wireless base station, and an Intermec Bluetooth scanner, no bar code is out of reach. The Intermec SD612 cordless base station provides secure wireless communication between as many as seven Intermec industrial Bluetooth scanners. A wired host device such as a PC, barcode label printer or mobile cart solution will allow users to conduct wireless barcode scanning from as far away as 100m (328 ft). With SD62, you can centralize all communication to a single host device, eliminate the need for multiple host devices, and unclutter your work area.
Honeywell SD62-S001 Accessory Overview
The SD62 wireless base station provides a secure encrypted connection between the host and up to seven Intermec Bluetooth® handheld scanners-including SR61B, SF61B and SG20B. With no need to install special software, the SD62 can be quickly installed to support your wireless data capture needs in an instant.

Communication between the SD62 and associated scanners is bi-directional: it checks that bar code data is fully transmitted to the host. If the data is not transmitted for any reason--for example, if the host PC is turned off--the module sends an error beep back to the scanner. This error-checking capability provides assurance to the operator that bar code data was transmitted successfully.

Technical Information
Bluetooth Standard:
Bluetooth 2.1
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Indoor Antenna Range:
984.3 ft
Features:
LED Indicator
Interfaces/Ports
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
Yes
Powerline:
No
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Desktop
Height:
1.4"
Width:
4"
Depth:
4.5"
Weight (Approximate):
5.29 oz
Miscellaneous
Certifications & Standards:
  • FCC Class A
  • EMC Class A & B
  • EN 60950
  • EN 300 328
  • cUL
  • VDE
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Malaysia
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0641676225122, 0735548764168, 7426701277238
UPC: 641676225122, 735548764168
EAN: 0641676225122, 0735548764168, 7426701277238
UNSPSC: 43222631
